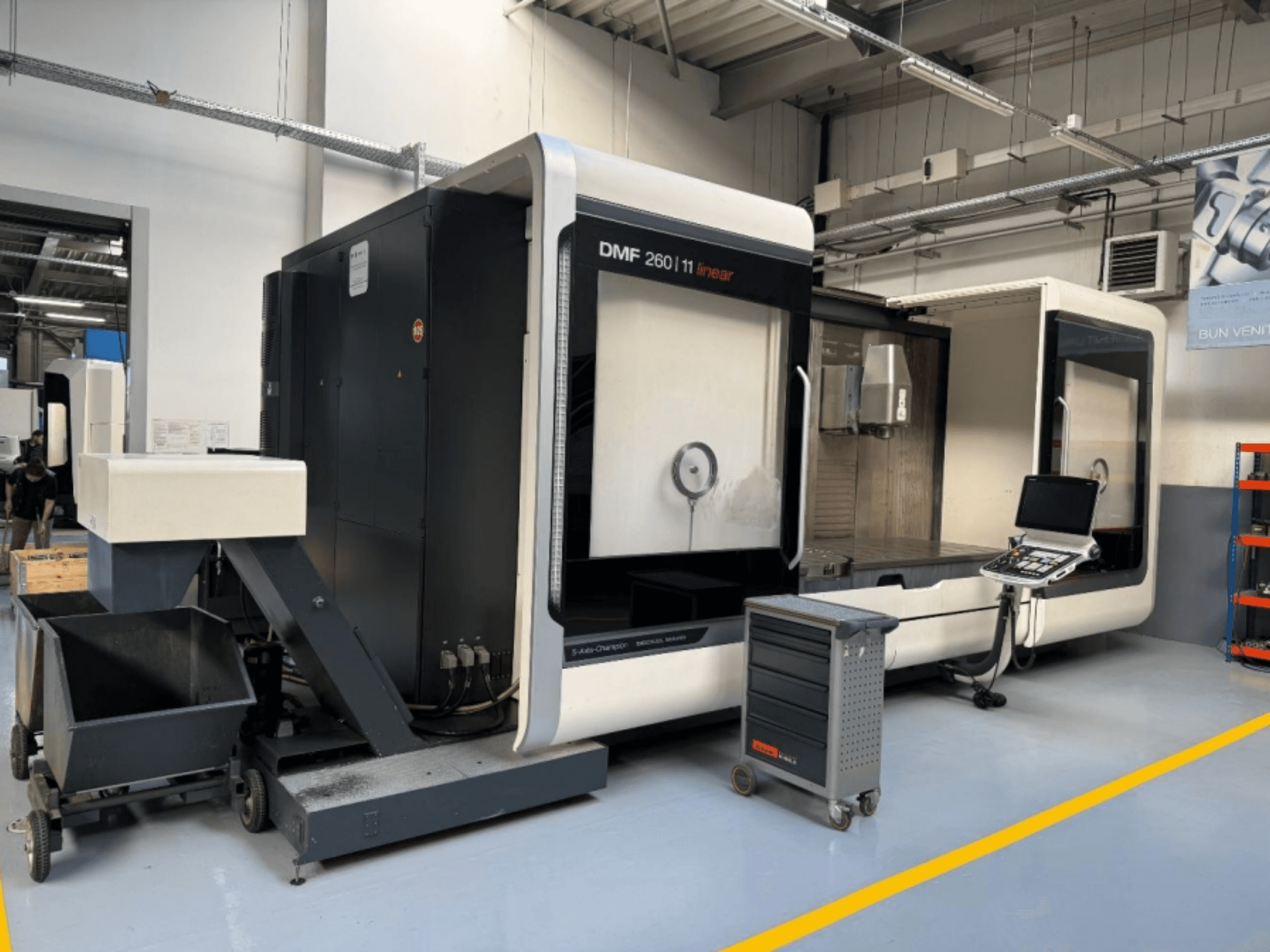

DMG DECKEL MAHO - DMF 260-11RO-MIL-DMG-2017-00001

• Swivel head (B-axis)

• Rigid table: 3,200 x 1,100 mm (125.98 in x 43.30 in)

• Rapid traverse (standard): 40 m/min (131.2 ft/min)

• Acceleration (standard): 4 m/s² (13.12 ft/s²)

• Tool clamping: DIN 69872

• Tool magazine: 30 tools (chain with double gripper)

• Chip-to-chip time: 9 s (SK40)

• Direct measuring systems

• Full-protective cabin and coolant tank

• S-A3070 Dynamic package for DMF 260 linear (Y 1,100 mm):

  • Linear drive X-axis with 80 m/min (262.48 ft/min)

  • Rapid traverse XYZ: 80/60/60 m/min (262.48/196.86/196.86 ft/min)

  • Acceleration XYZ: 5/6/6 m/s² (16.4/19.68/19.68 ft/s²)

  • Active chiller for main spindle and linear motor

  • Tool magazine: 30 tools (chain with double gripper)

  • Chip-to-chip time: 7.5 s (SK40)

• Motor spindle speedMASTER SK40:

  • Torque: 200 Nm / 130 Nm (148 ft-lbs / 96 ft-lbs)

  • 40% / 100% duty cycle

Additional equipment

• Chip conveyor (scraper type)
