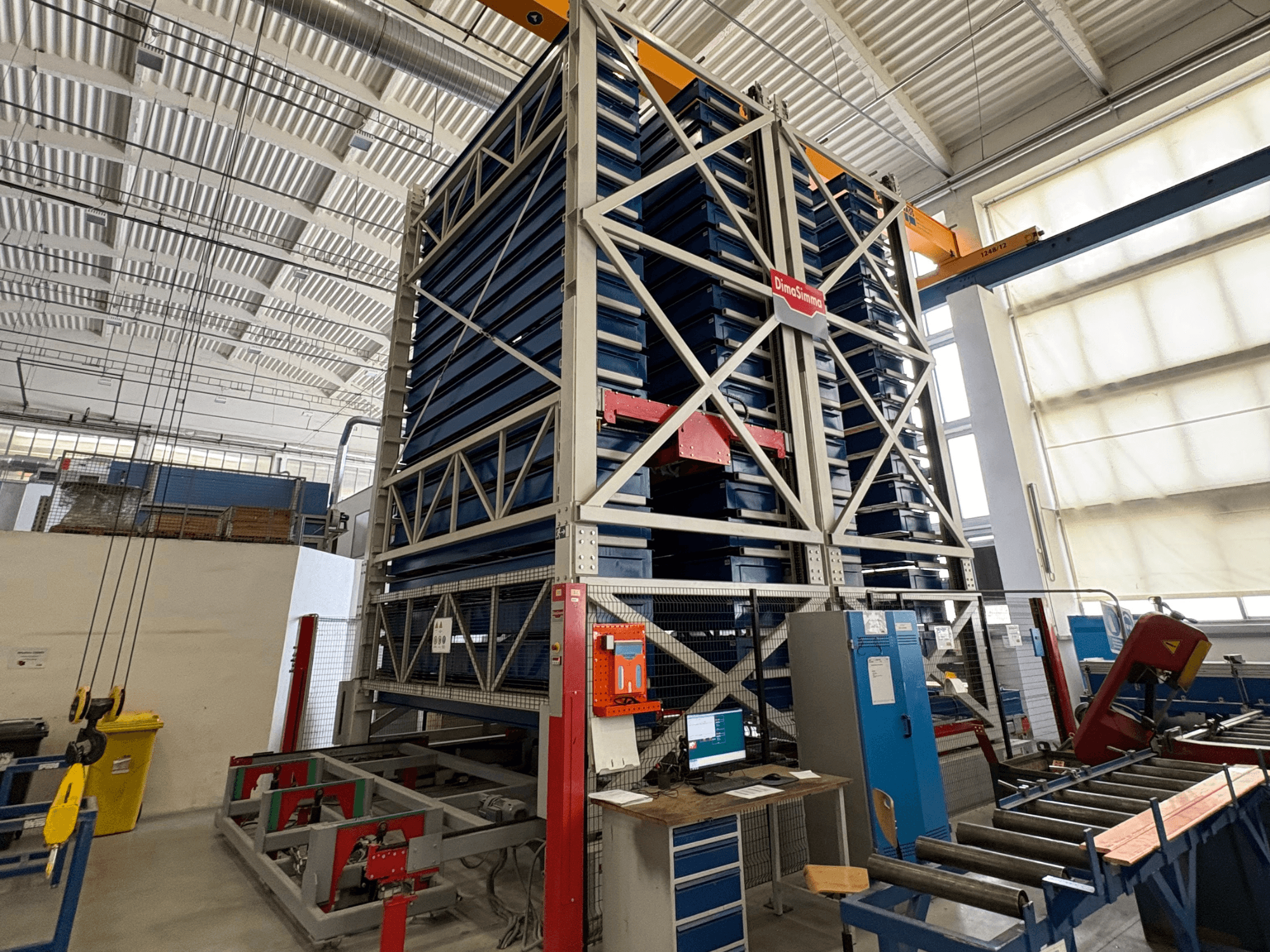

DimaSimma - EMS-30 TWIN CZ-OTH-DIM-2013-00001

• Performance

  • Max. lifting weight: 3 350 kg

  • Vertical movement speed: 3–10 m/min

  • Horizontal movement speed: 3–10 m/min

  • Electrical supply: 220–400 V / 3F / 50 Hz

  • Max. power consumption: 30 kW

• Containers

  • Quantity: 80 pieces (on 2 towers)

  • Usable dimensions: 4 250 × 720 × 250 mm

  • Design: closed sides, open bottom

• Construction

  • 2 towers with racks (total of 80 containers)

  • A lifting unit (elevating unit) moves along the vertical axis in each tower

  • Lifting gearbox located at the bottom

• Material movement

  • Vertical movement: up and down

  • Horizontal movement: container extraction/insertion

• Work stations

  • 1 loading and 1 unloading station, opposite each other

Additional equipment

• WMS software: Elephant Manager (product identification, inventory and minimum stock management, order-based issue control, material entry date tracking)

• PC control: 2 computers for operation
