DEMAG ET60-200 concept

Photo Gallery

DEMAG - ET60-200 conceptDE-INJ-DEM-2003-00004

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used DEMAG ET60-200 concept For Sale | gindumac.com

Show in original language

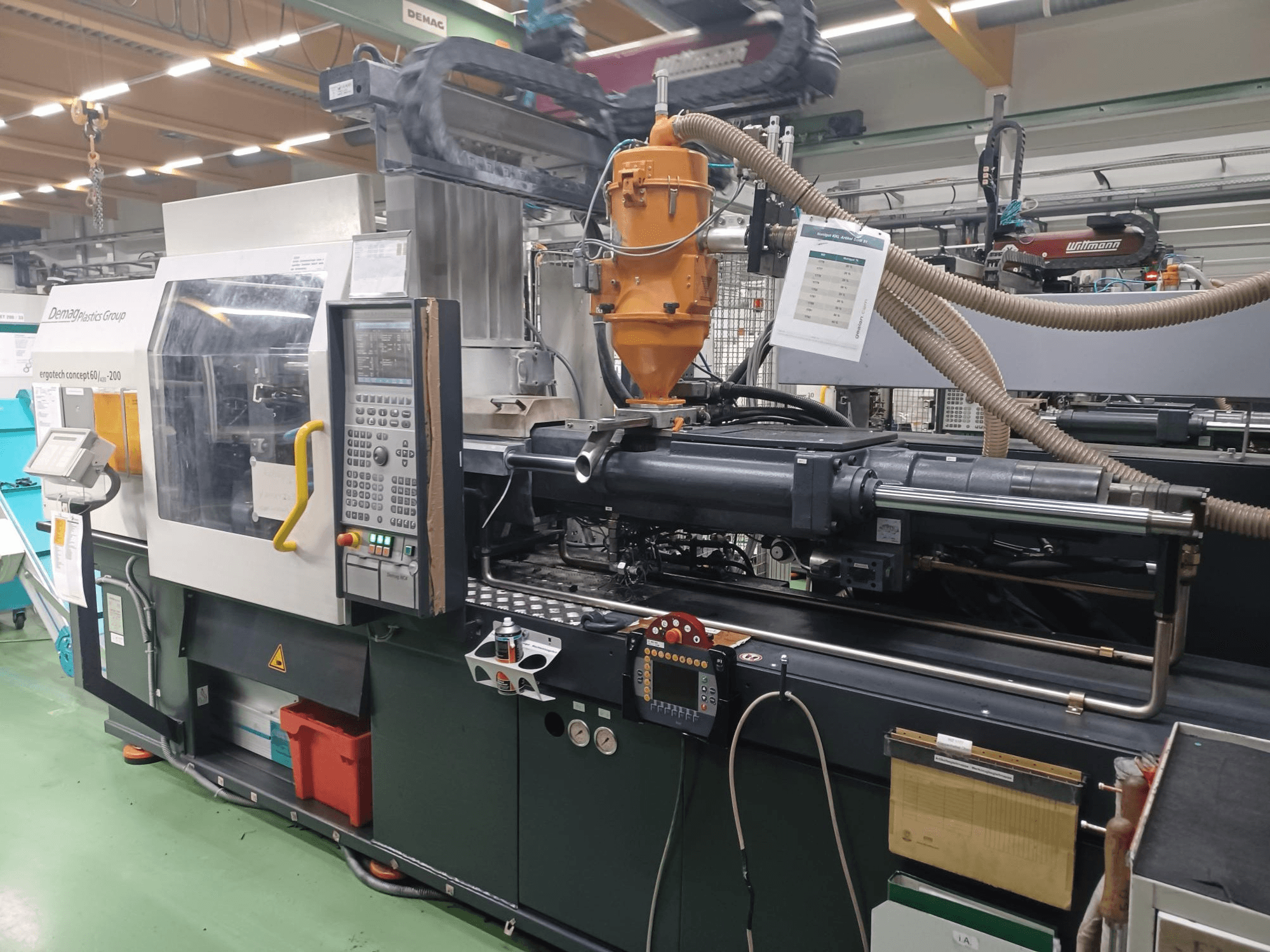

This DEMAG ET60-200 concept hydraulic injection moulding machine was manufactured in 2003. It features a clamping force of 600 kN and a maximum mold weight of 580 kg. The machine includes a robust injection unit with a screw diameter of 30 mm and an injection pressure of 1900 bar. Consider the opportunity to buy this DEMAG ET60-200 concept hydraulic injection moulding machine. Contact us for further details.

Overview

brand: DEMAG
year: 2003
MODEL: ET60-200 concept
production hours: 96986
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine

Technical Information - DEMAG ET60-200 concept

Technical Specification

Clamping Force: 600 kN
Screw Diameter: 30 mm

Additional Information

Clamping unit:
- Tie bar spacing (H x V): 420 x 420 mm
- Platen dimensions (H x V): 530 x 540 mm
- Min. mold installation height: 210 mm
- Opening stroke: 400 mm
- Max. mold weight: 580 kg (moving side 380 kg / fixed side 200 kg)
Ejector:
- Stroke: 125 mm
- Force: 41 kN
- Retraction force: 15 kN
- Pneumatic ejector: Yes
Core pull control: Yes (2 units, on the ejector side/AS)
Injection unit 1:
- Unit size: 200
- Screw diameter: 30 mm
- Injection pressure: 1900 bar
- Stroke volume: 106 ccm
- Shot weight (PS): 94 g
- Screw L/D: 20
- Nozzle radius: 15 mm
- Armored/wear-resistant injection unit: Yes
Process control: SPC (Yes)
Note: Maximum crane load warning: 2 metric tons

Additional equipment

Robot/removal device: W621-1381
- Travel paths: Y 1200 mm, X 550 mm, Z 1500 mm
Hot runner controller: 7-zone integrated control
Mold sensors: Kistler (p=1/t=0)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
