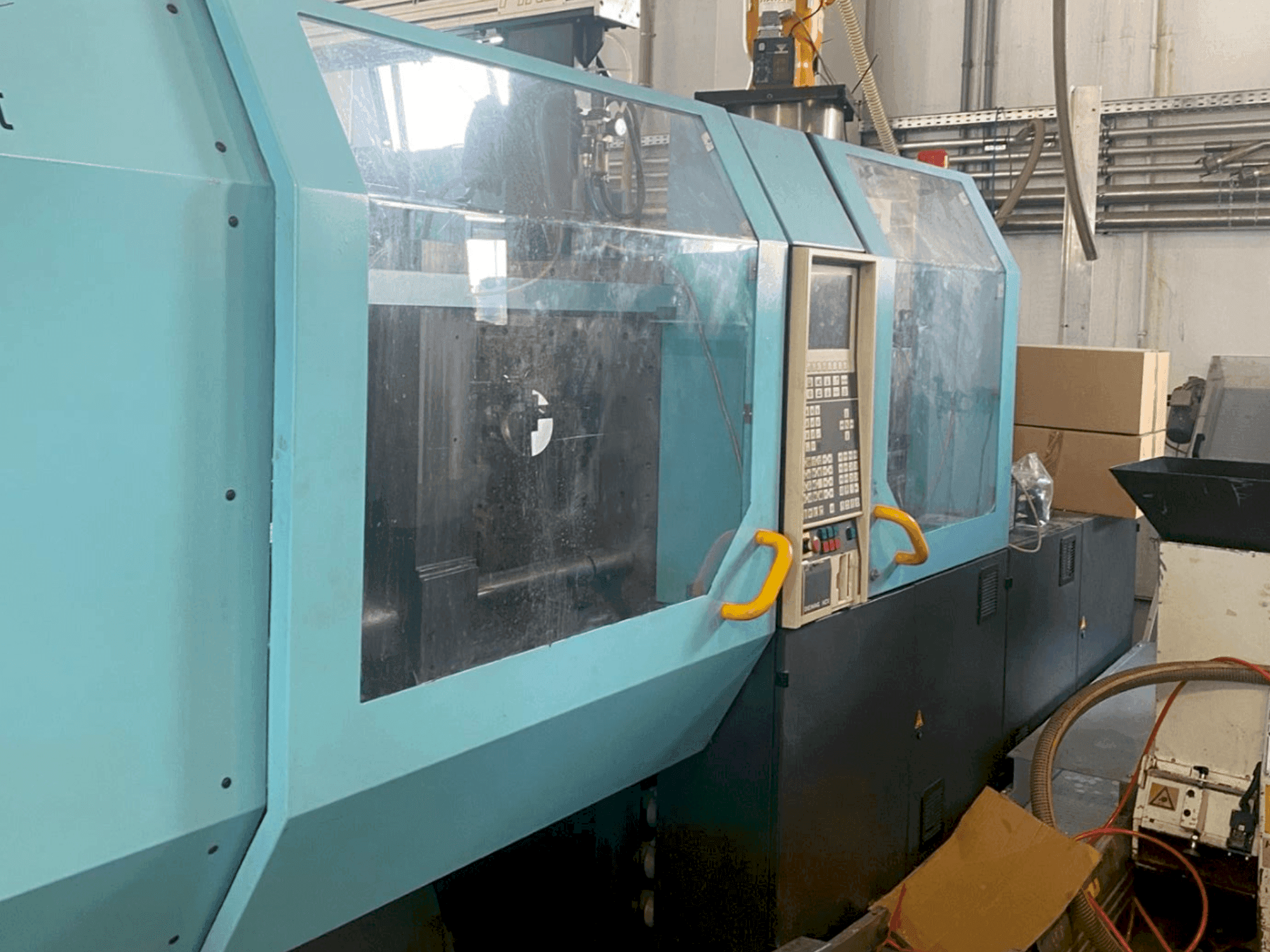

Front view of DEMAG Ergotech Compact 1500-610  machine

DEMAG - Ergotech Compact 1500-610CH-INJ-DEM-1999-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This DEMAG Ergotech Compact 1500-610 was manufactured in 1999. It features a clamping force of 1500 kN, a screw diameter of 45 mm, and a shot weight of 290 g. The machine dimensions are 5200 mm in length, 1600 mm in width, and 2100 mm in height, weighing approximately 7.4 tons. A solid choice for precision in injection moulding. For more information about this hydraulic injection moulding machine, please reach out to us.

Overview

  • brand: DEMAG
  • year: 1999
  • MODEL: Ergotech Compact 1500-610
  • application type: Injection Moulding
  • Location: Switzerland
  • machine type: Hydraulic Injection Moulding Machine
  • availability: Sold

Technical Information - DEMAG Ergotech Compact 1500-610

General Data

  • Measurements width: 1600 mm
  • Measurements depth: 5200 mm
  • Measurements height: 2100 mm
  • Machine weight: 7400 kg

Injection Unit

  • Screw diameter: 45 mm
  • Shot weight: 290 g
  • Stroke volume: 323 cm³
  • Injection pressure: 1973 bar
  • Heating capacity: 13.0 kW
  • Nozzle pressure: 80 kN

Clamping unit

  • Clamping force: 1500 kN
  • Opening stroke: 500 mm
  • Max open daylight: 1060 mm
  • Distance between bars: 500 x 500 mm
  • Mould height min: 250 mm
  • Mould height max: 560 mm
  • Size of mold platens: 750 x 750 mm
  • Ejector stroke: 160 mm
  • Ejector force for / back: 58 kN

    Additional Equipment

    • - Holding force: 1650 kN
    • - Maximum mold weight: 1700 kg
    • - Maximum mold weight on moving platen: 1150 kg
    • - Maximum retraction force: 26 kN
    • - Core pull: 0 units
    • - Screw L/D ratio: 20
    • - Maximum nozzle stroke: 350 mm
    • - Nozzle immersion depth (SVO): 40 mm
    • - Material hopper capacity: 70 liters

    Additional Information

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
