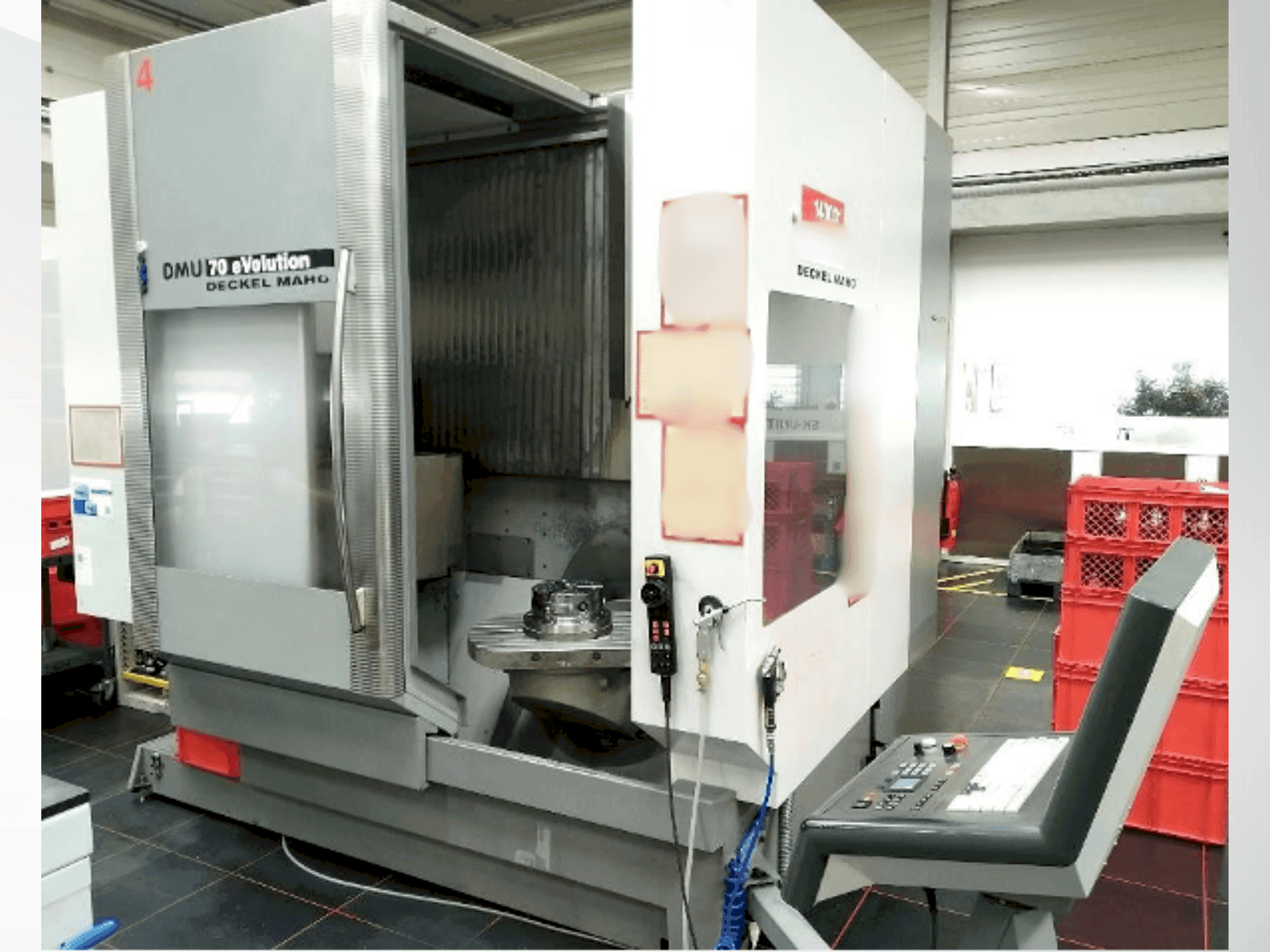

Front view of DECKEL DMU 70 eVolution machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DECKEL DMU 70 eVolution

Photo Gallery

DECKEL - DMU 70 eVolutionDE-MIL-DEC-2004-00006

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DECKEL DMU 70 eVolution For sale | gindumac.com

Show in original language

This 3-axis DECKEL DMU 70 eVolution universal machining center was manufactured in 2004. It features a high-speed main drive up to 18,000 rpm, a 32-slot SK40 tool magazine, and an NC rotary table with a clamping surface of 700 x 500 mm. The machine can handle a maximum load of 350 kg on the rotary table. Ideal for complex machining tasks, buy this DECKEL DMU 70 eVolution universal machining center. Contact us for further details regarding this universal machining center.

Overview

brand: DECKEL
year: 2004
MODEL: DMU 70 eVolution
production hours: 9000
application type: Milling
Location: Germany
machine type: Universal Machining Centre

Technical Information - DECKEL DMU 70 eVolution

General Data

Measurements width: 5850 MM
Measurements depth: 5250 MM
Measurements height: 2834 MM
Machine weight: 8900 KG

Main drive

Spindle speed range: 20-18,000 rpm 1/MIN
Tool taper: SK40

Movement

X-AXIS Movement: 750 mm
X-AXIS Rapid traverse: 50 m/min
Y-AXIS Movement: 600 mm
Y-AXIS Rapid traverse: 50 m/min
Z-AXIS Movement: 520 mm
Z-AXIS Rapid traverse: 50 m/min

Table

Table load: 350 kg

Tools

Slots in storage: 32
Max weight: 6 kg with automatic change & 90 kg in magazine

Additional Information

Additional equipment

NC rotary table with swivel axis
Cooling lubricant tank (approx. 240 l)
Digital measuring probe (not functional)

Machine Benefits

Technical Machine Benefits

Clamping surface Ø 700 x 500 mm
Swivel range (swivel axis) 0-180°
Max. Torque (swivel axis) 1,674 nm
Max. Swivel torque 3,019 nm
Distance of t-slots/size of centering bore: 63 mm / Ø 30 h6
Operating hours: 64,362 hours (as of 17. 06. 2024)
Spindle hours: < 9,000 hours (spindle replaced august 2018)

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
