- ➤ Used DART VMC650 XL/A T.S For Sale | gindumac.com

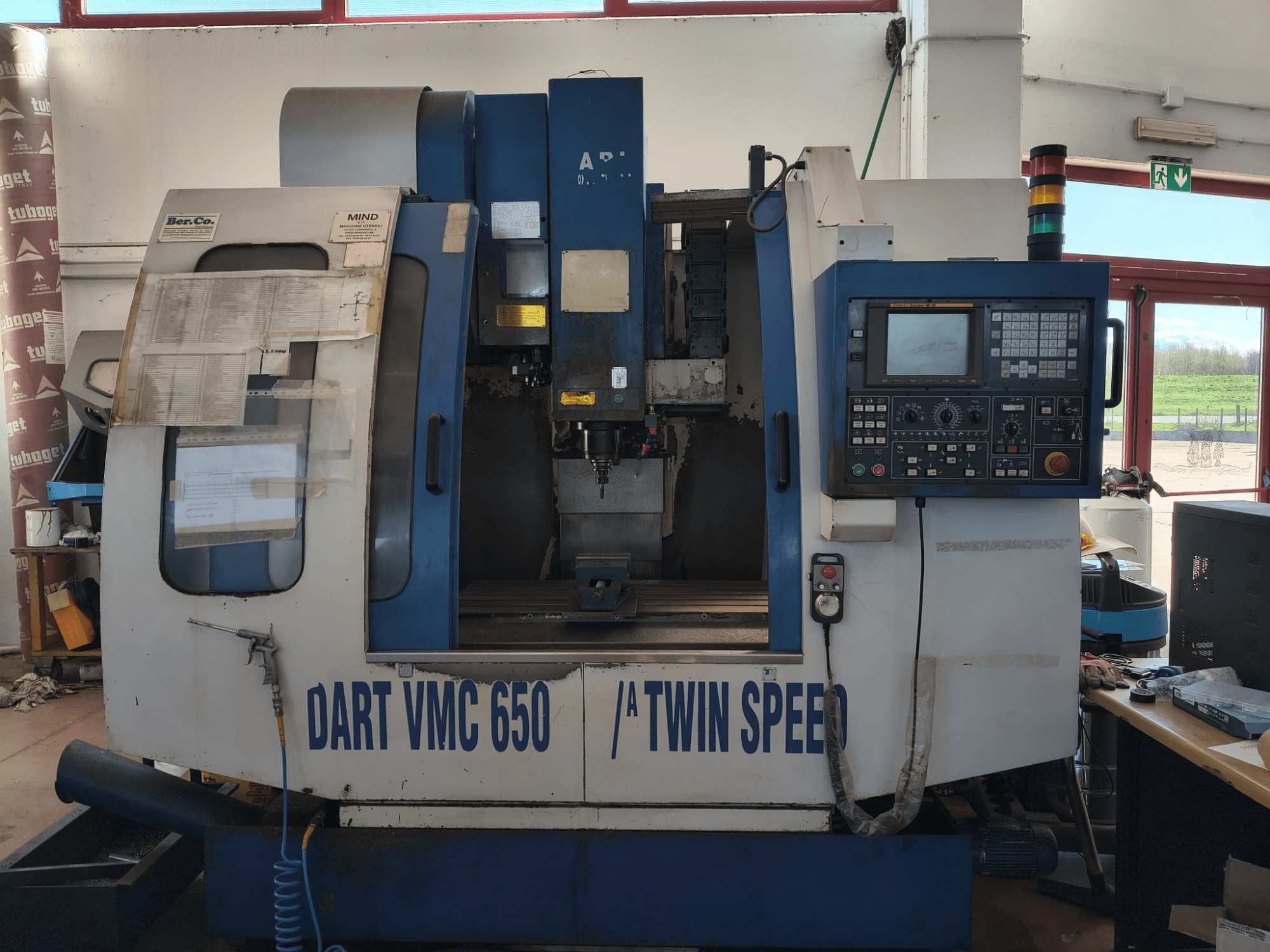

This 3-axis DART VMC650 XL/A T.S was manufactured in 2000. It features an X-axis travel of 800 mm, Y-axis travel of 500 mm, and Z-axis travel of 510 mm. The machine includes a table size of 1000 × 500 mm and a maximum table load of 400 kg. If you are looking to get high-quality machining capabilities, consider the DART VMC650 XL/A T.S vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: DART
- year: 2000
- MODEL: VMC650 XL/A T.S
- application type: Milling
- Location: Italy
- machine type: Vertical Machining Centre
Technical Information - DART VMC650 XL/A T.S
Dimensions
- Machine Height: 2200 mm
- Machine Length: 2305 mm
- Machine Weight: 6500 kg
- Machine Width: 2300 mm
- Table Load: 400 kg
Movement
- Number of Axes: 3
- X-axis Travel: 800 mm
- Y-axis Travel: 500 mm
- Z-axis Travel: 510 mm
Technical Specification
- Max. Tool Weight: 7 kg
- Spindle Speed: 8000 RPM
- Taper Size: BT 40
Additional Information
Table:
Size: 1000 × 500 mm
Feed rates:
Rapid traverse (X/Y/Z): 8000 mm/min
Cutting feed: 1–2000 mm/min
Axes / Drives (feed motors):
X: 1.8 kW
Y: 1.8 kW
Z: 1–3 kW
ATC (tool changer):
Tool capacity: 24
Max tool diameter: 100 mm (adjacent tools) / 200 mm (no adjacent)
Max tool length: 200 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
