DAEWOO - PUMA TT 2000 SYDE-TUR-DAE-2005-00001

Name: DAEWOO PUMA TT 2000 SY
Brand: DAEWOO
SKU: DE-TUR-DAE-2005-00001
Price: 57050 GBP
Availability: InStock

£ 57,050

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DAEWOO PUMA TT 2000 SY For Sale | gindumac.com

Show in original language

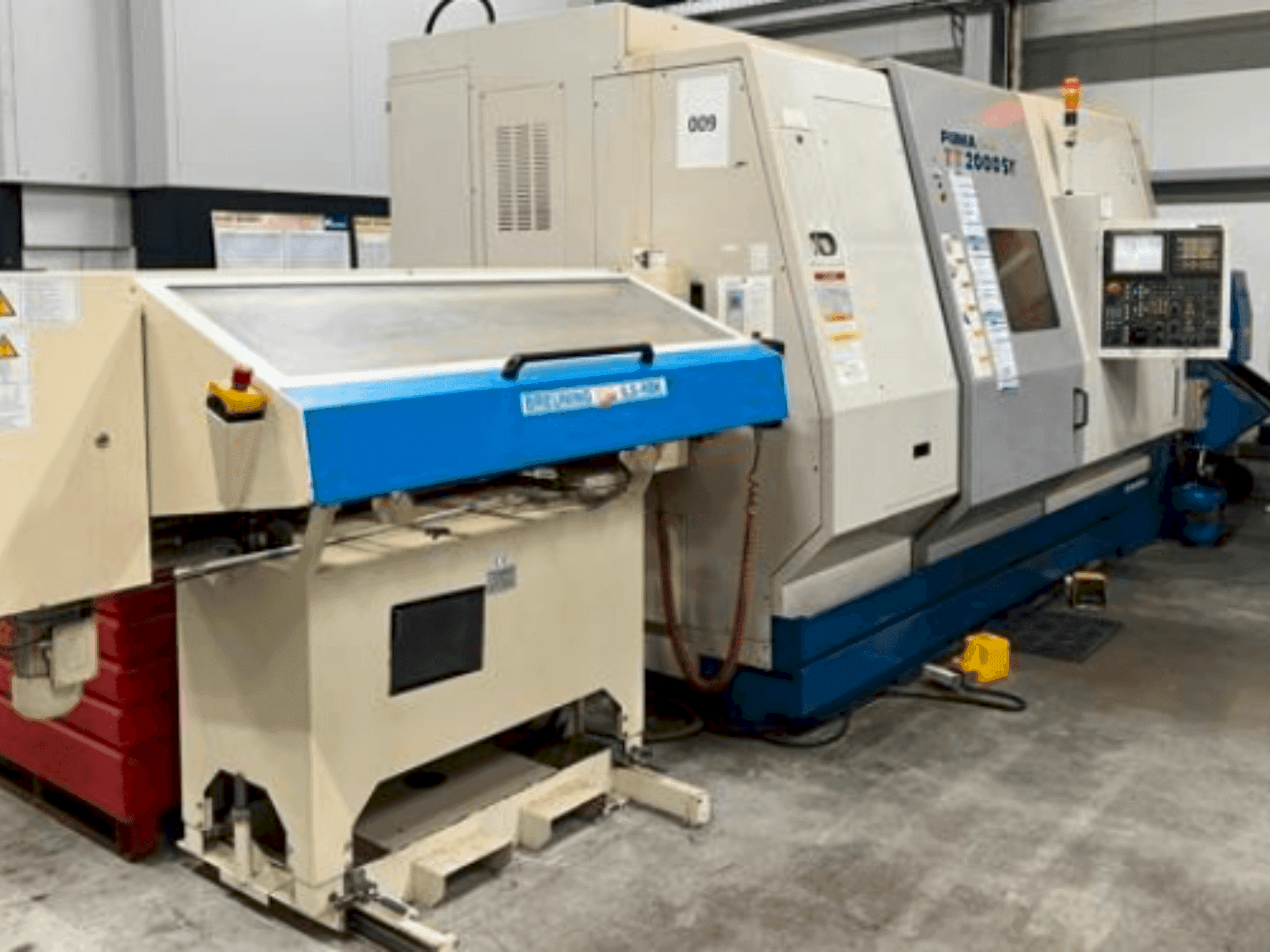

This 3-axis DAEWOO PUMA TT 2000 SY was manufactured in 2005. It features a turning diameter over bed of 800 mm and a maximum bar diameter of 65 mm. Equipped with a Fanuc 18i-TB control system, it offers spindle speeds up to 5000 rpm and includes a tool turret with 12 stations. Consider the opportunity to buy this DAEWOO PUMA TT 2000 SY horizontal turning machine. Contact us for more information about this machine.

Overview

brand: DAEWOO
year: 2005
MODEL: PUMA TT 2000 SY
production hours: 6235
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
availability: Immediately
control unit brand: FANUC

Technical Information - DAEWOO PUMA TT 2000 SY

General Data

Measurements width: 2200 mm
Measurements depth: 4100 mm
Machine weight: 11600 kg

Control Unit

Brand: FANUC
Model: 18i-TB

Main drive

Spindle speed range: 5000 1/MIN
Spindle motor power: 22 kW
Number of axis: 3

Movement

X-AXIS Movement: 255 mm
X-AXIS Rapid traverse: 20000 mm/min
Y-AXIS Movement: 120 mm
Y-AXIS Rapid traverse: 7500 mm/min
Z-AXIS Movement: 800 mm
Z-AXIS Rapid traverse: 24000 mm/min
C-AXIS Movement: 360° MM

Workpiece

Workpiece weight: 120 kg

Turret

Number of turrets: 1

Tools

Number of stations: 12

Media

Chip conveyor: Yes

Additional Equipment

- Measuring Probe: Tool Measuring Probe
- Automatic Bar Loader: ILS-RBK10016 L 2265 mm, W 1116 mm, Approx. 490 kg
- Bar Loader Max. Material Length/Diameter: 1600 mm/5-65 mm
- Magazine Short Bar Feed with Servo Drive
- Main and Counter Spindle with Power Chuck D = 250
- Enclosed Work Area Enclosure According to Accident Prevention Regulations
- Memory Card Input Socket, RS 232 Socket
- Tool Load Monitoring, Bed Flushing
- Workpiece Air Blow-off Function
- Automatic Tool Measuring Probe // Driven Tools on Both Revolvers

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Chuck size (both spindles): 250 mm
- - Chuck force (both spindles): hydraulic 5-40 bar
- - Max. Turning diameter: approx. 390 mm / approx. 315 mm
- - Max. Workpiece length: 740 mm
- - Max. Bar diameter: 65 mm
- - Total power requirement: 75 kva / 11 kw with transformer
- - Regular maintenance has been performed

Extra information

- Additional equipment Coolant System, Chip Conveyor, Automatic Parts Catcher with Conveyor Belt, Many Accessories Technical Documents and Installation Plan Available Tools Tool Turret: BTM65 Live Tools: Yes Tool Load Monitoring: Yes Tool Holder Diameter: 40 mm Motor for Live Tools: 7.5 kW Collet Size for Rotary Tools: ER32 (D=3-20 mm) Max. Rotary Tool Speed: 4000 rpm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
