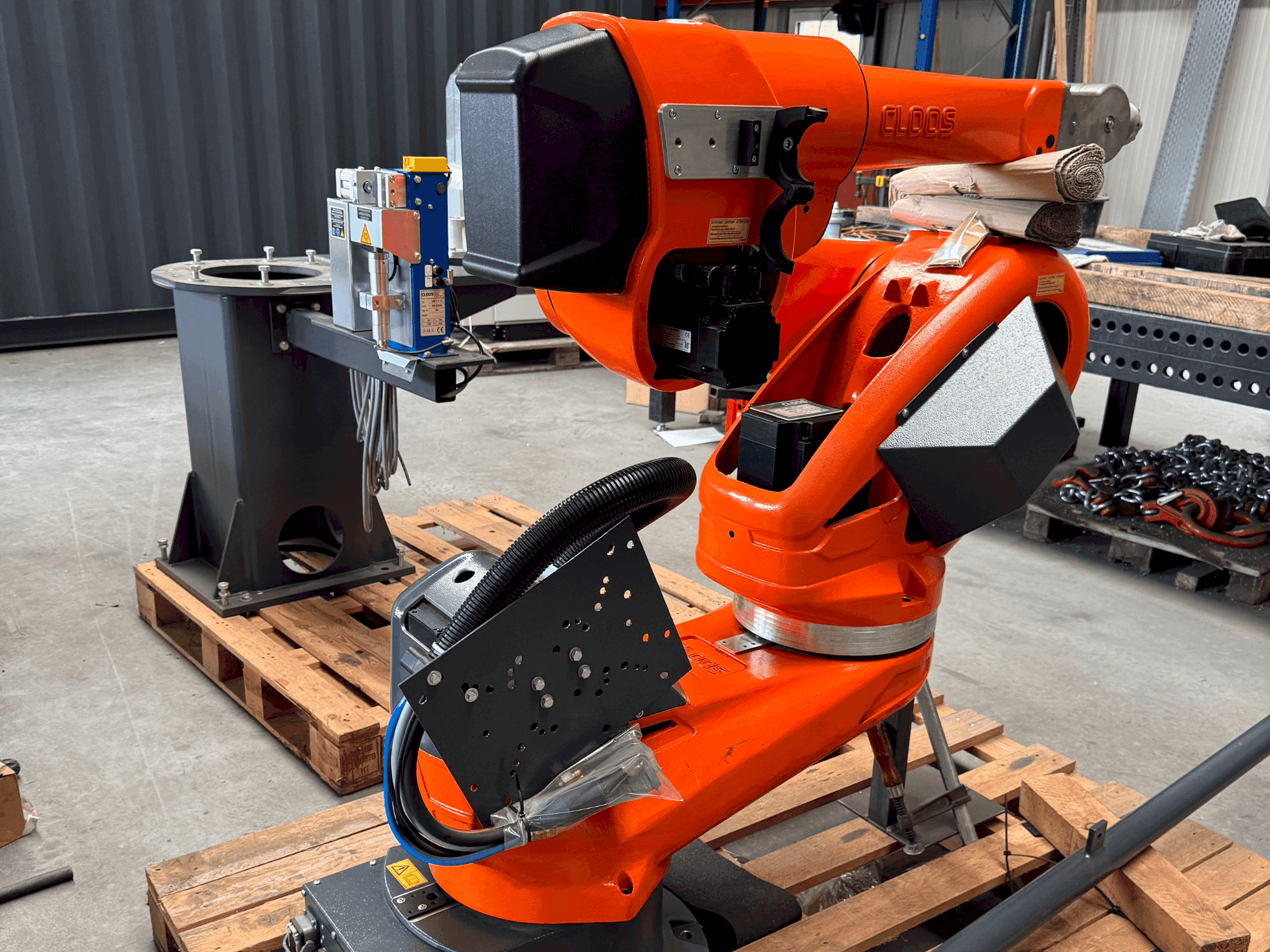

CLOOS - QIROX QRC 350-EDE-WEL-CLO-2019-00001

Extra Information

• Robotics and Control Unit

• Max. payload: 15 kg

• Working range: 0–4500 mm

• Digital inputs/outputs: 16

• Serial interface: Yes

• CAN bus: Yes

• USB interfaces: 2

• Flash memory: 8 GB

• Buffer module: 24 V

• Expandable to up to 12 axes

• Welding Technology Power source: Included

• Welding interface: Integrated

• Welding and function test: Included

• Torch cleaning: CMR-8-C torch cleaning device

• upright Robotic welding torch: Included

• Sensors Tactile sensor: Yes

• Arc sensor: Included Technical Data of Workpiece Positioner

• Load capacity: 10 kN

• Nominal torque: max. 1600 Nm

• Tilting moment: max. 8800 Nm

• Mass moment of inertia: 900 kgm²

• Rotation range: +,- 360°

• Swivel range: 370°

• Welding Fume Extraction capacity: 3000 - 4320 m³/h

• Motor power: 5.5 kW

• Connection voltage: 3 x 400V/50 Hz

• Noise level: 65 dB(A)

• Weight: 640 kg

• Dimensions (W x D x H): 1413 x 1413 x 2110 mm
