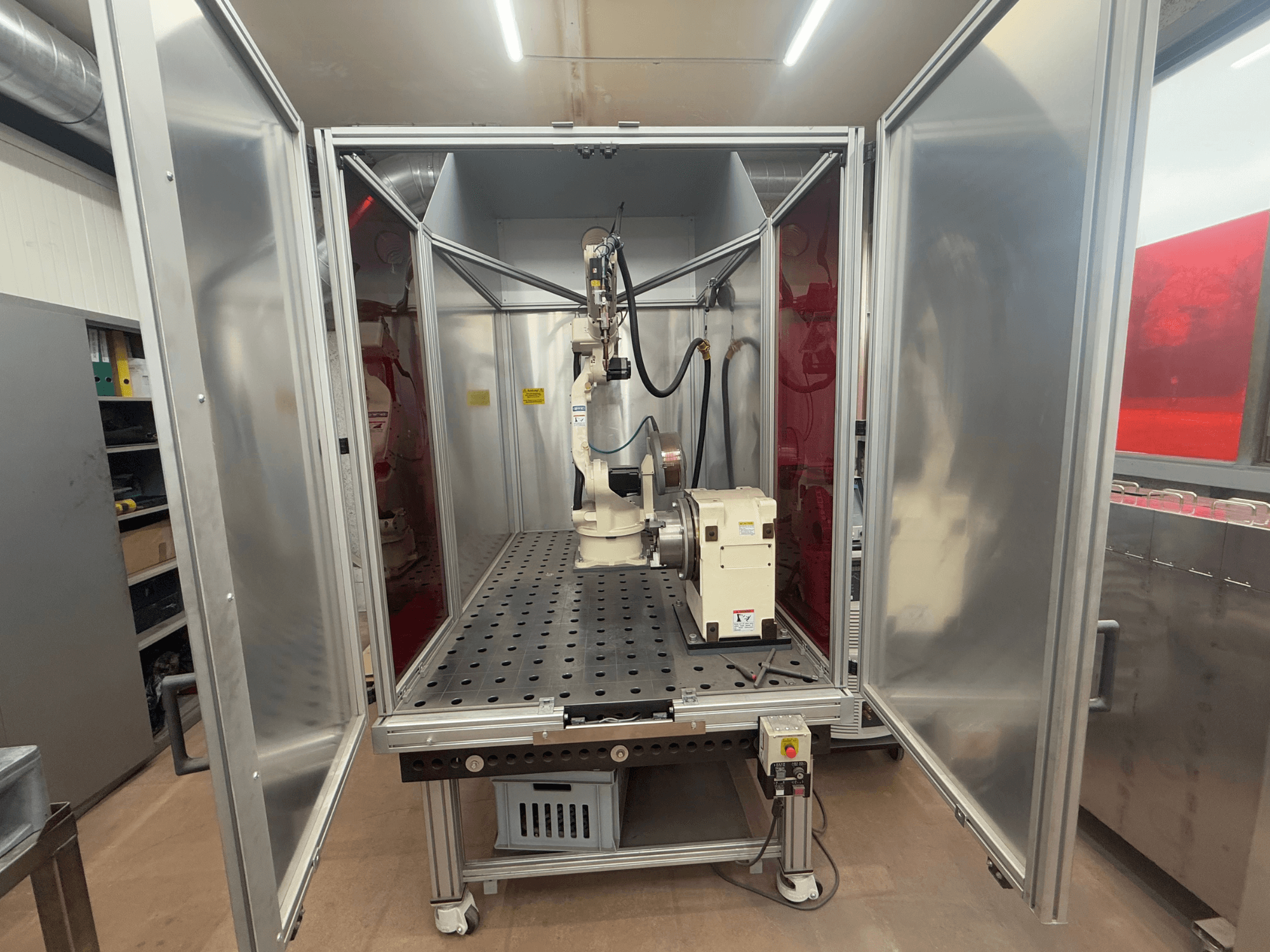

This 6-axis OTC Daihen EASY ARC V02.04 was manufactured in 2019. It features a robot working range with a radius of 1,445 mm and a maximum payload of 6 kg. The integrated welding table measures approximately 2,200 mm in width and 1,100 mm in depth, with a load capacity of around 1,000 kg. If you are looking to get high-quality welding capabilities, consider the OTC Daihen EASY ARC V02.04 welding robot we have for sale. Contact us for further details.
Overview
- brand: OTC Daihen
- year: 2019
- MODEL: EASY ARC V02.04
- application type: Welding
- Location: Switzerland
- machine type: Welding Robot
- control unit brand:
Technical Information - OTC Daihen EASY ARC V02.04
Movement
- Number of Axes: 6
Additional Information
- System Type: Mobile Robotic Welding Cell (EasyArc)
- Robot Kinematics: 6-axis vertical articulated robot
- Robot Payload: 6 kg (Max. upper arm load: 10 kg)
- Robot Working Range (P-Point): Radius 1,445 mm
- Robot Repeatability: ±0.08 mm (Path), ±0.2 mm (Point)
- Robot Drive System: AC Servo Motor
- Robot Weight: 145 kg
- Welding Power Source Model: OTC Daihen Welbee Inverter P400 (MIG/MAG, Gas-cooled)
- Power Source Mains Voltage: 3 x 400 V / 50 Hz (+/- 15%)
- Power Source Rated Input Capacity: 18.2 kVA
- Welding Current Range: 30 - 400 A
- Welding Voltage Range: 12 - 34 V
- Power Source Duty Cycle: 400 A at 30%
- Robot Controller: OTC Daihen FD11 (Model: EAFDB6-S000, Rated Input: 3.1 kVA, Phases: 3, Voltage: 400 V, Freq: 50/60 Hz, Mass: 60 kg)
- Safety Enclosure: Lightweight protective housing with setup and loading doors equipped with electric safety interlocking switches
- Welding Table: Integrated hole-pattern welding plate table prepared for clamping elements (Dimensions: ~2,200 mm width x 1,100 mm depth, Weight: ~600 kg, Load Capacity: ~1,000 kg)
- Table Mobility: Legs equipped with swivel guide rollers and locking brakes
- Horizontal Rotary Positioner: OTC Positioner PB Type (Max. payload 250 kg, Rotation speed 26°/s, Torque 205 Nm, Repeatability ±0.1 mm, Weight 110 kg, central bore in flange plate for media feed-through)
- Environmental Conditions: Operating temp 0-45 °C, Humidity 20-80% (non-condensing)
- max. 100 operating hours
- 1 electronic axis is defective and needs to be repaired
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
