ABB IRB 2400L Welding Cell

Photo Gallery

£ 18,793

gindumac price

(Ex works)

Get an official quote

ABB - IRB 2400L Welding CellDE-WEL-ABB-2004-00001

Name: ABB IRB 2400L Welding Cell
Brand: ABB
SKU: DE-WEL-ABB-2004-00001
Price: 18793 GBP
Availability: InStock

£ 18,793

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used ABB IRB 2400L Welding Cell For Sale | gindumac.com

Show in original language

Welding robot manufactured in 2004. This ABB IRB 2400L Welding Cell features a robust design with a positioner model ABB IRB 500R and includes Fronius TPS 4000 welding equipment. It comes equipped with essential safety features such as a light curtain and safety fencing. If you are looking to get high-quality welding capabilities, consider the ABB IRB 2400L Welding Cell we have for sale. Contact us for further details.

Overview

brand: ABB
year: 2004
MODEL: IRB 2400L Welding Cell
application type: Welding
Location: Germany
machine type: Welding Robot

Technical Information - ABB IRB 2400L Welding Cell

Movement

Number of Axes: 6

Additional Information

- Industrial Robot Model: ABB IRB 2400L

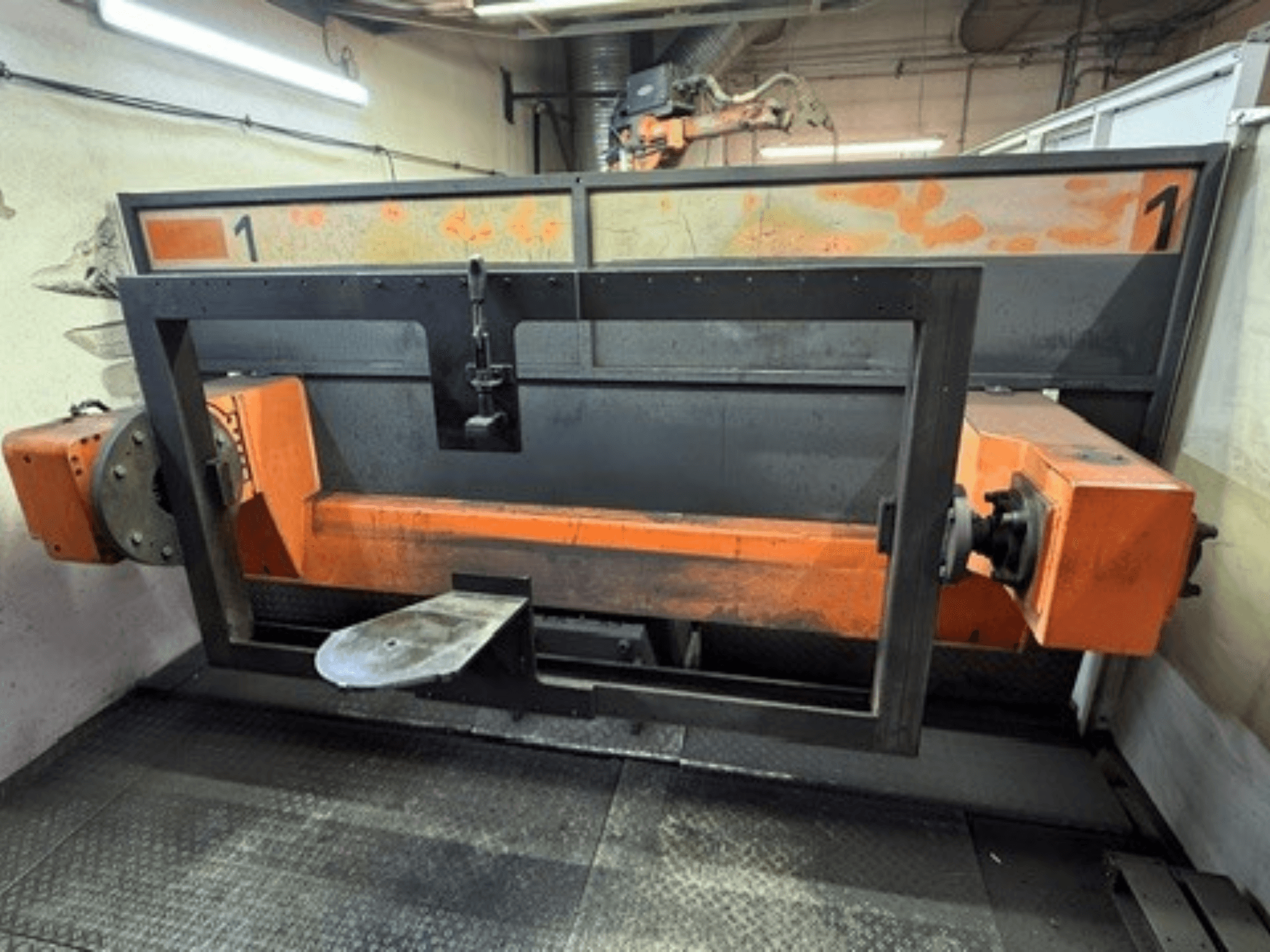

- Positioner Model: ABB IRB 500R

- Welding Equipment: Fronius TPS 4000

- Supply Voltage: 3x400V/PE/N

- Cable Cross-section: 5 x 16 mm²

- Fuse Protection: 63 A delayed

- Compressed Air Requirements: 6 bar, G1/2"

- Robot Control Cabinet: Included

- Machine Sequence Control Cabinet: Included

- Robot Base Height: 800 mm

- Safety Equipment: Light curtain, safety fencing, glare protection partition wall, service door (monitored by ABB), rear access protection (mechanical, h=1100mm)

- Maintenance Units: Torch cleaning system, TCP Calibration unit

- Control Stations: Main start panel, Pre-Reset button

- Footprint Dimensions: Approx. 8025 mm (length) x 5500 mm (width)

- Center-to-center distance: 2000 mm x 1200 mm turning circle

- Load capacity: 500 kg per side of the table / Maximum load difference: 350 kg

- machine hours: 68.107h

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
