CHIRON - FZ08SHR-MIL-CHI-2000-00002
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used CHIRON FZ08S | Vertical Machining Center

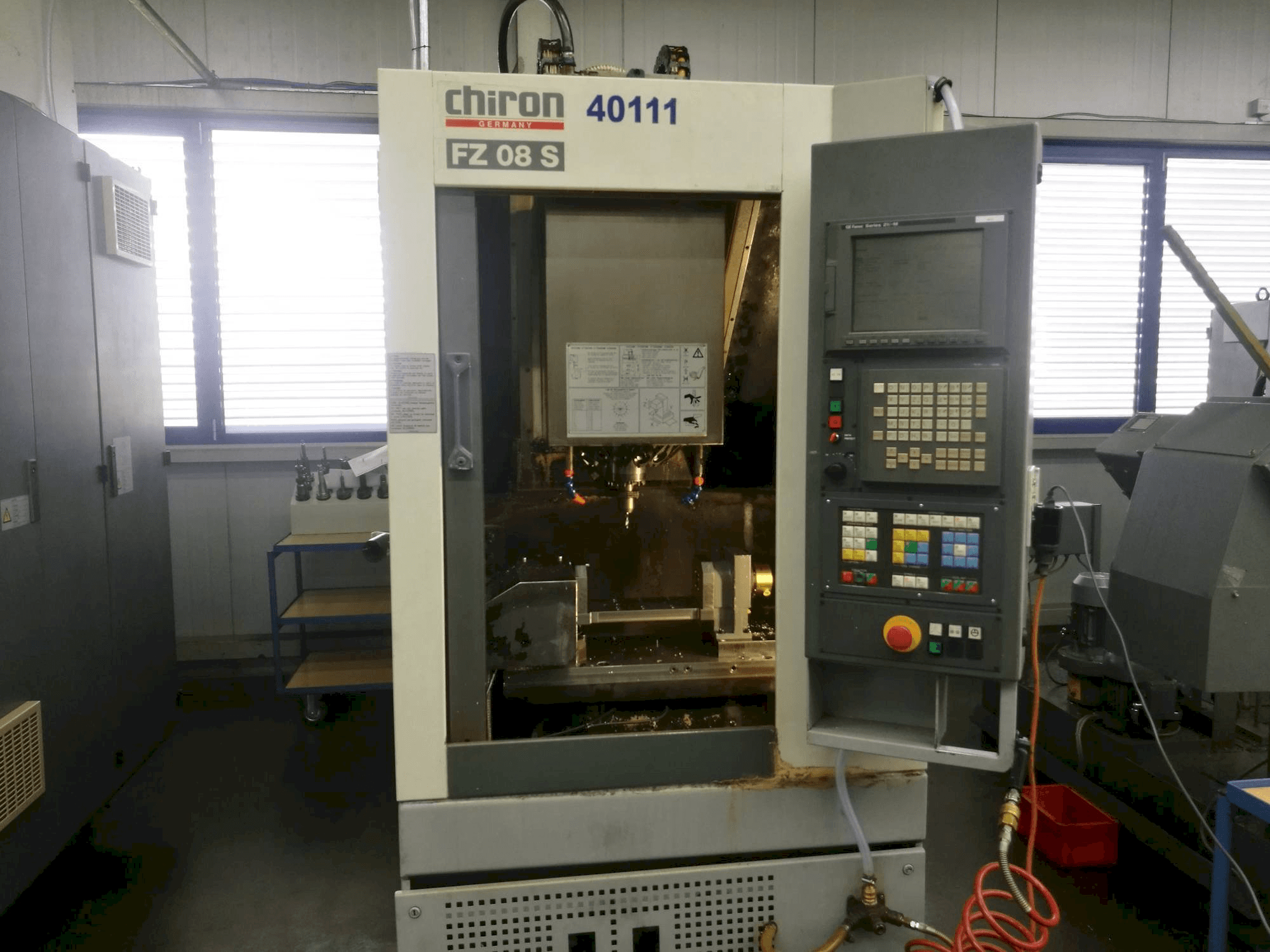

This CHIRON FZ08S Vertical Machining Center was built in the year 2000 in Germany and has a production record of 40500 hours. Equipped with a FANUC 21 iM Control unit, this fast machine incorporates a spindle speed up to 10500 rpm. It presents perfectly good conditions, as it has been regularly maintained.
Overview
- brand: CHIRON
- year: 2000
- MODEL: FZ08S
- production hours: 40500
- application type: Milling
- Location: Croatia
- machine type: Vertical Machining Centre
- control unit brand: FANUC
Technical Information - CHIRON FZ08S
Control Unit
- Control Brand: FANUC
- Control Model: 21 iM
Dimensions
- Machine Depth: 2000 mm
- Machine Height: 2350 mm
- Machine Weight: 1820 kg
- Table Length: 620 mm
- Table Width: 260 mm
Movement
- B-axis Max: 360°
- X-axis Travel: 300 mm
- Y-axis Travel: 250 mm
- Z-axis Travel: 425 mm
Technical Specification
- Number of Tools: 12
- Spindle Speed: 10500 RPM
Additional Information
Additional equipment
- 4axis rotary unit 360° Peiesler 250x100mm
- chip box
- tool holders
Machine Benefits
Qualitative Machine Benefits
- Regulary maintained
Technical Machine Benefits
- 4 axis rotary unit
Machine History
Industries
Medical industry
End product
Medical instruments
Material type
Aluminium
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
