➤ Used CHIRON FZ 15K S FA For Sale | gindumac.com

Show in original language

This 5-axis CHIRON FZ 15K S FA vertical machining centre was manufactured in 2009. It features a HSK-A63 taper, complemented by a swivel-roundtable with dual 280 mm clamping surfaces. The machine includes a 48-station chain magazine and an internal cooling unit with a 70 bar filter. Ideal for complex machining tasks, the CHIRON FZ 15K S FA represents a robust addition to any production line. Reach out for more information.

Overview

brand: CHIRON
year: 2009
MODEL: FZ 15K S FA
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
availability: Immediately
control unit brand: Siemens

Technical Information - CHIRON FZ 15K S FA

General Data

Measurements width: 4000 mm
Measurements depth: 4000 mm
Measurements height: 3000 mm
Machine weight: 9000 kg

Control Unit

Brand: Siemens
Model: 840D - Powerline

Main drive

Spindle speed range: 12000 rpm 1/MIN
Tool taper: HSK-A63
Number of axis: 5

Movement

X-AXIS Movement: 730 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 425 mm
A-AXIS Movement: -110°/+110° MM
C-AXIS Movement: 360° MM

Workpiece

Workpiece weight: 15 kg

Tools

Max weight: 5 kg
Max tool diameter: 82 mm
Max tool length: 250 mm

Media

Oil water separator: Yes
Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment

- Position sensor: Direct Scales in all Axis
- Chip management: Chip flushing and chip conveyor

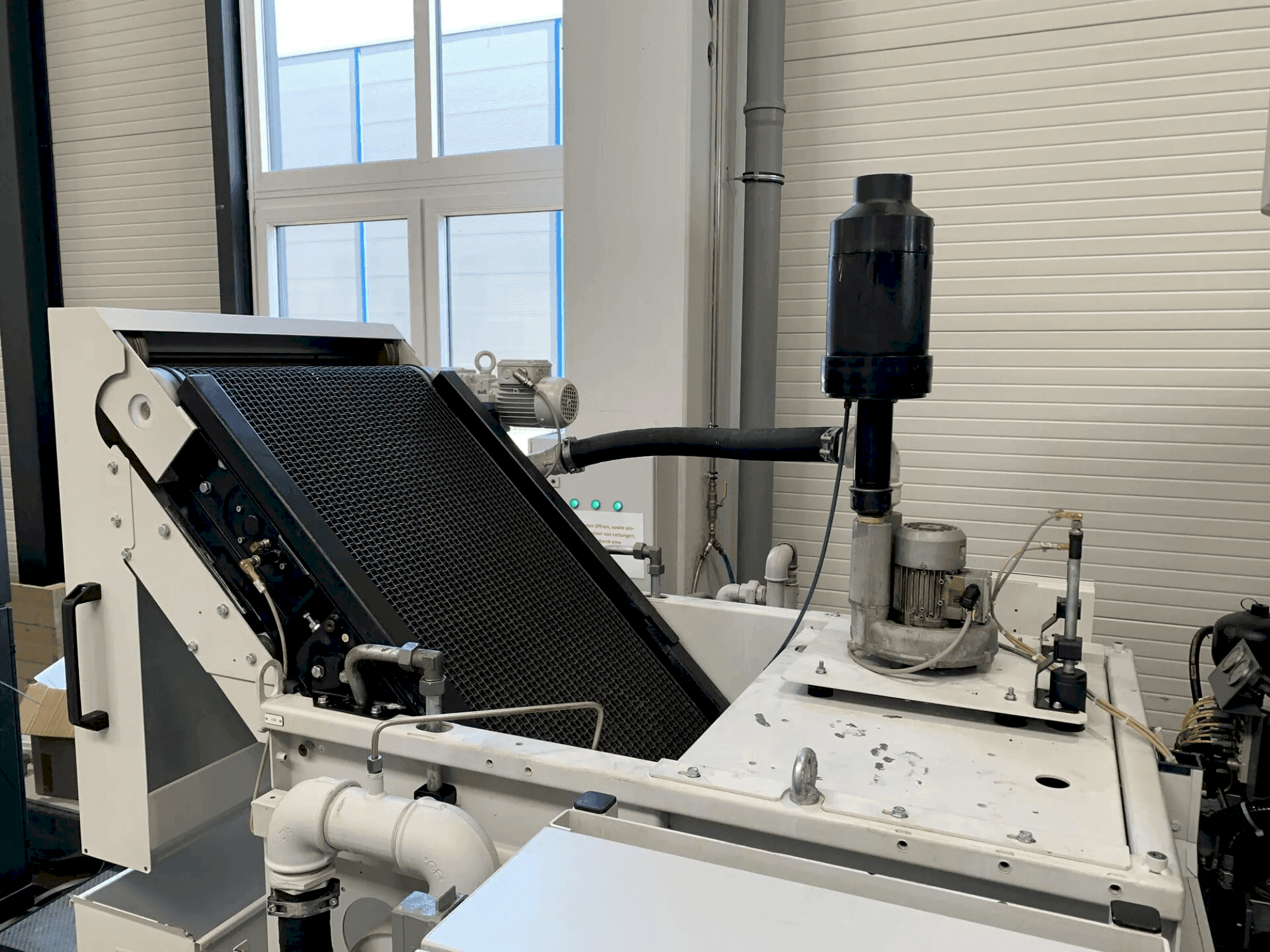

- Cooling management: Internal cooling unit with filter, 70 bar
- Workpiece measurement: Preparation Touchprobe, Renishaw
- Oil mist separation: Electrostatic extraction, LTA
- Fire-extinguishing system: Kraft + Bauer
- Automation: Automatic door
- Further Accessory: Rinsing pistol

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Clamping surface: 2x roundtable ø280 mm
- - Comprehensive cooling management with internal cooling unit and 70 bar filter
- - Advanced chip management with chip flushing and chip conveyor
- - Direct scales in all axes for precise positioning
- - Electrostatic oil mist extraction for a cleaner working environment
- - Fire-extinguishing system for enhanced safety
- - Automation features including an automatic door
- - Chain magazine: 48 stations
- - Spindle technology: motorspindle
- - Nc-swivel-roundtable technology: swinging bridge with 2 roundtables

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
