Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
CHIRON - FZ 18LHR-MIL-CHI-1996-00002
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools

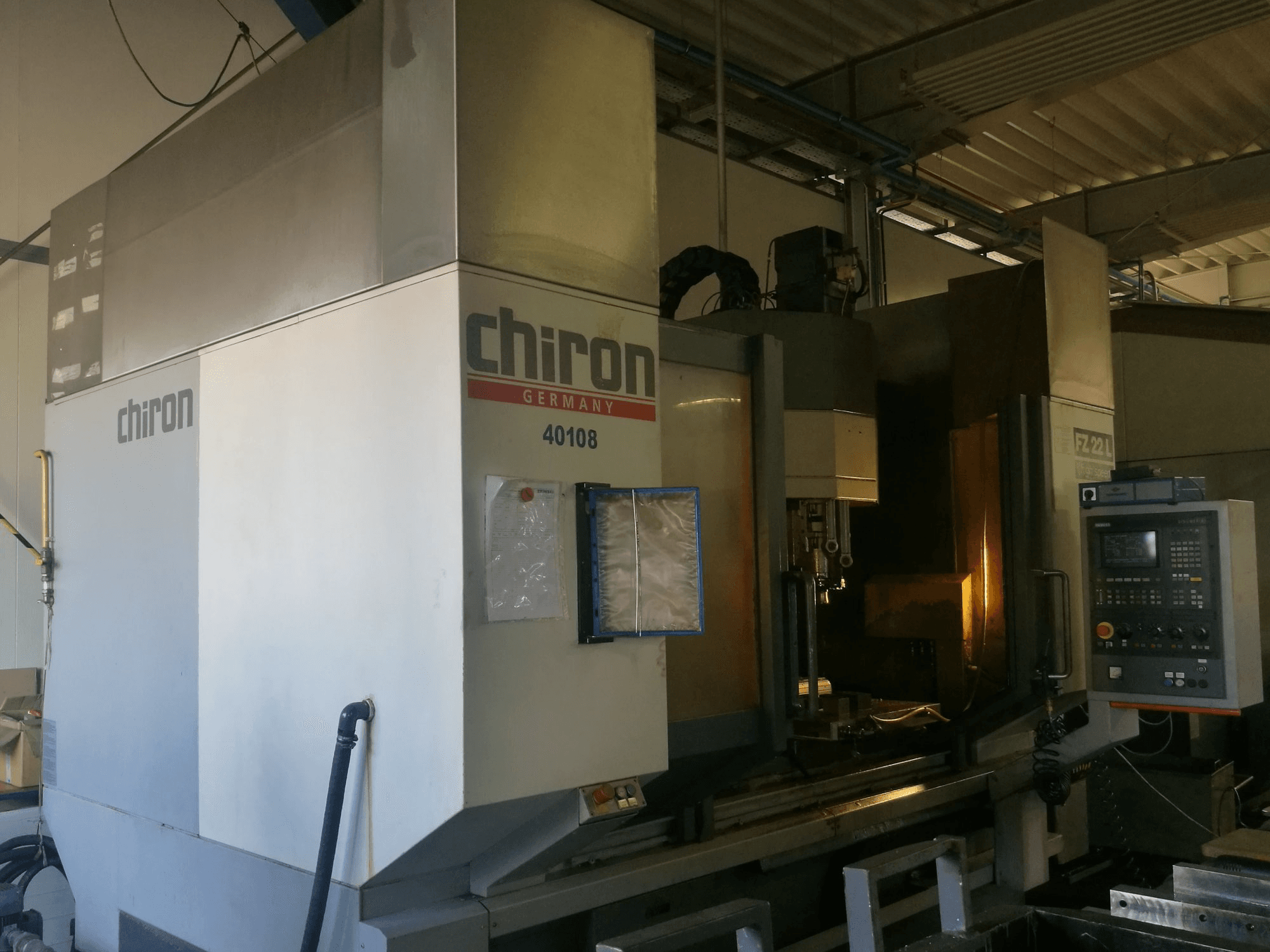

- Chiron FZ 18L Vertical Machining Center
This Chiron FZ 18L Vertical Machining Center from 1996 was manufactured in Germany and has a production time of approximately 55000 working hours since then. Operated through a SIEMENS SINUMERIK 810 Control Unit, this fast and well maintained machine has mainly worked with aluminium and titan during the past.
Overview
- brand: CHIRON
- year: 1996
- MODEL: FZ 18L
- production hours: 55000
- application type: Milling
- Location: Croatia
- machine type: Vertical Machining Centre
- control unit brand: SIEMENS
Technical Information - CHIRON FZ 18L
Control Unit
- Control Brand: SIEMENS
- Control Model: SINUMERIK 810
Dimensions
- Machine Depth: 3160 mm
- Machine Height: 3000 mm
- Machine Weight: 7200 kg
- Table Length: 2300 mm
- Table Width: 400 mm
Movement
- X-axis Travel: 2000 mm
- Y-axis Travel: 400 mm
- Z-axis Travel: 425 mm
Technical Specification
- Spindle Speed: 10500 RPM
- Through-spindle Coolant: Yes
Additional Information
Additional equipment
- Automatic Tool Changer with 36 tool slots
- Rotary unit Piesler GRT160
- Chip conveyor knoll
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
