➤ Used CHIRON FZ 15K S For Sale | gindumac.com

Show in original language

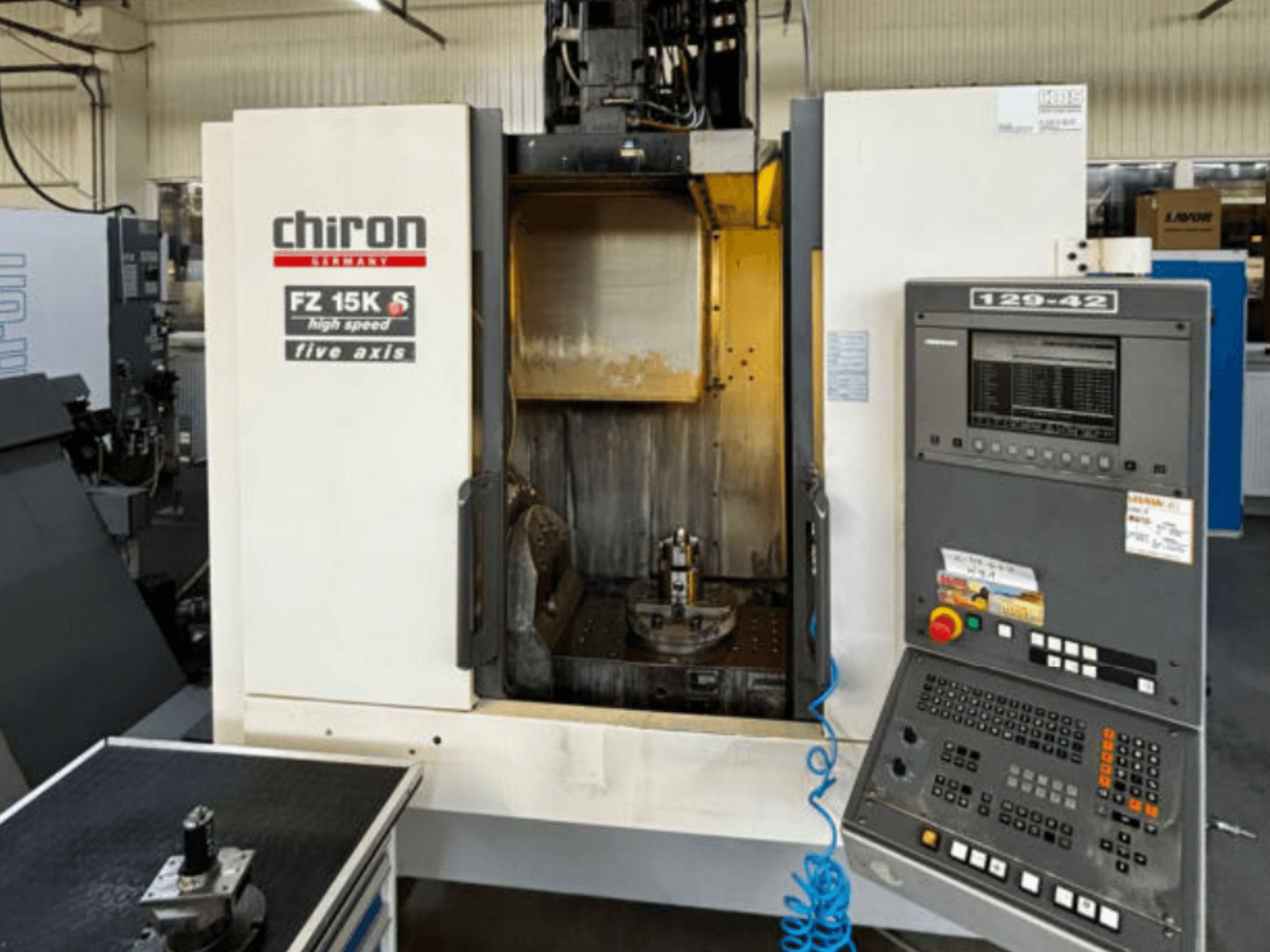

This 5-axis CHIRON FZ 15K S was manufactured in 2001. It features a spindle speed of 12,000 rpm and a tool magazine with 48 positions, providing efficient machining capabilities. The machine is equipped with a Peiseler swivel rotary table and an internal through-spindle cooling system. If you are looking to get high-quality machining capabilities, consider the CHIRON FZ 15K S vertical machining centre we have for sale. Contact us for further details.

Overview

brand: CHIRON
year: 2001
MODEL: FZ 15K S
production hours: 94204
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
Available from: 03/12/2026
control unit brand: HEIDENHAIN

Technical Information - CHIRON FZ 15K S

Control Unit

Control Brand: HEIDENHAIN
Control Model: TNC 426

Dimensions

Machine Weight: 8700 kg

Movement

Number of Axes: 5
X-axis Travel: 550 mm

Technical Specification

Spindle Speed: 12000 RPM
Taper Size: HSK 100
Through-spindle Coolant: Yes
Tool Stations: 48

Additional Information

- Number of Axes: 5-axis (3+2 configuration)

- Axis Table: Peiseler swivel rotary table equipped with HSK 100 clamping / LANG clamping system

- Cooling: Internal through-spindle cooling system (IKZ)

- Chip Management: Chip conveyor system

- Workpiece Measuring: Renishaw probe

- Working Voltage: 400 V

- Control Voltage: 230 / 24 V

- Power Rating: 47 kVA

- Rated Current: 67 A

- Fuse: 80 A

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
