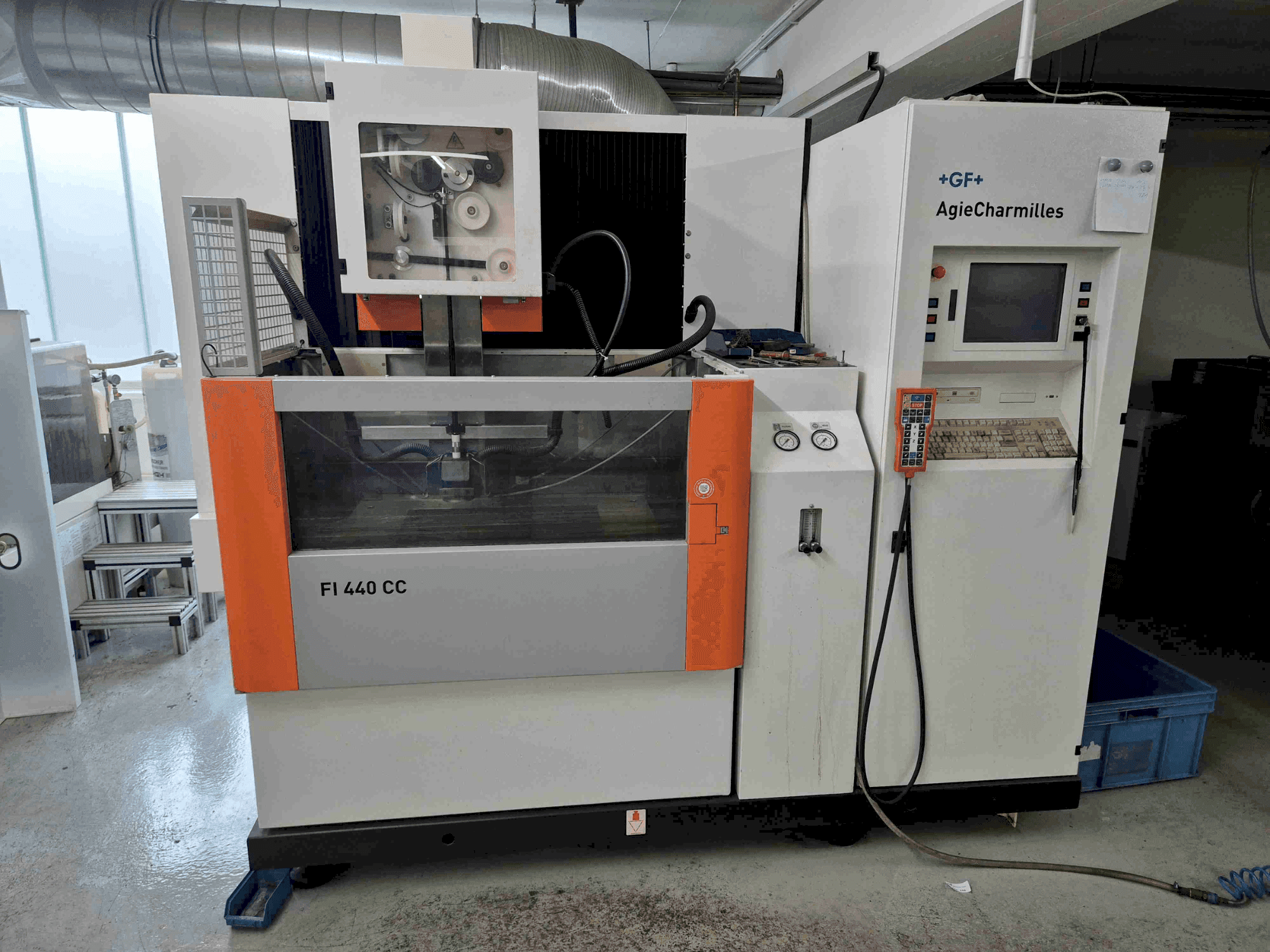

Front view of CHARMILLES FI 440 CC  machine

CHARMILLES - FI 440 CCDE-EDM-CHA-2008-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 5-axis CHARMILLES FI 440 CC wire EDM machine was manufactured in 2008. It features a large workpiece capacity up to 1200x700x400mm and a maximum weight of 1500kg. The machine dimensions are 2600x2810x2080 mm, and it includes a CleanCut high-speed generator with a cutting speed of 400mm²/min. If you are looking to get high-quality EDM capabilities, consider the CHARMILLES FI 440 CC machine we have for sale. Contact us for more information about this machine.

Overview

  • brand: CHARMILLES
  • year: 2008
  • MODEL: FI 440 CC
  • application type: EDM
  • Location: Germany
  • machine type: Wire EDM Machine
  • availability: Sold

Technical Information - CHARMILLES FI 440 CC

General Data

  • Measurements width: 2810 MM
  • Measurements depth: 2600 MM
  • Measurements height: 2080 MM
  • Machine weight: 4450 KG

Main drive

  • Number of axis: 5

Movement

  • X-AXIS Movement: 550 mm
  • Y-AXIS Movement: 350 mm
  • Z-AXIS Movement: 400 mm
  • V-Axis Movement: 350 mm
  • U-Axis Movement: 550 mm

Workpiece

  • Workpiece x: 1200 mm
  • Workpiece y: 700 mm
  • Workpiece z: 400 mm
  • Workpiece weight: 1500 kg

Injection Unit

  • Stroke volume: 1200 CM³

    Additional Equipment

    • - CleanCut High-Speed Generator

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Min. /max. Dielectric distance: 0/435 mm
        • - Filter cartridges: 4
        • - Total volume of deionising resin: 20 l
        • - Cutting speed: 400 mm²/min

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
