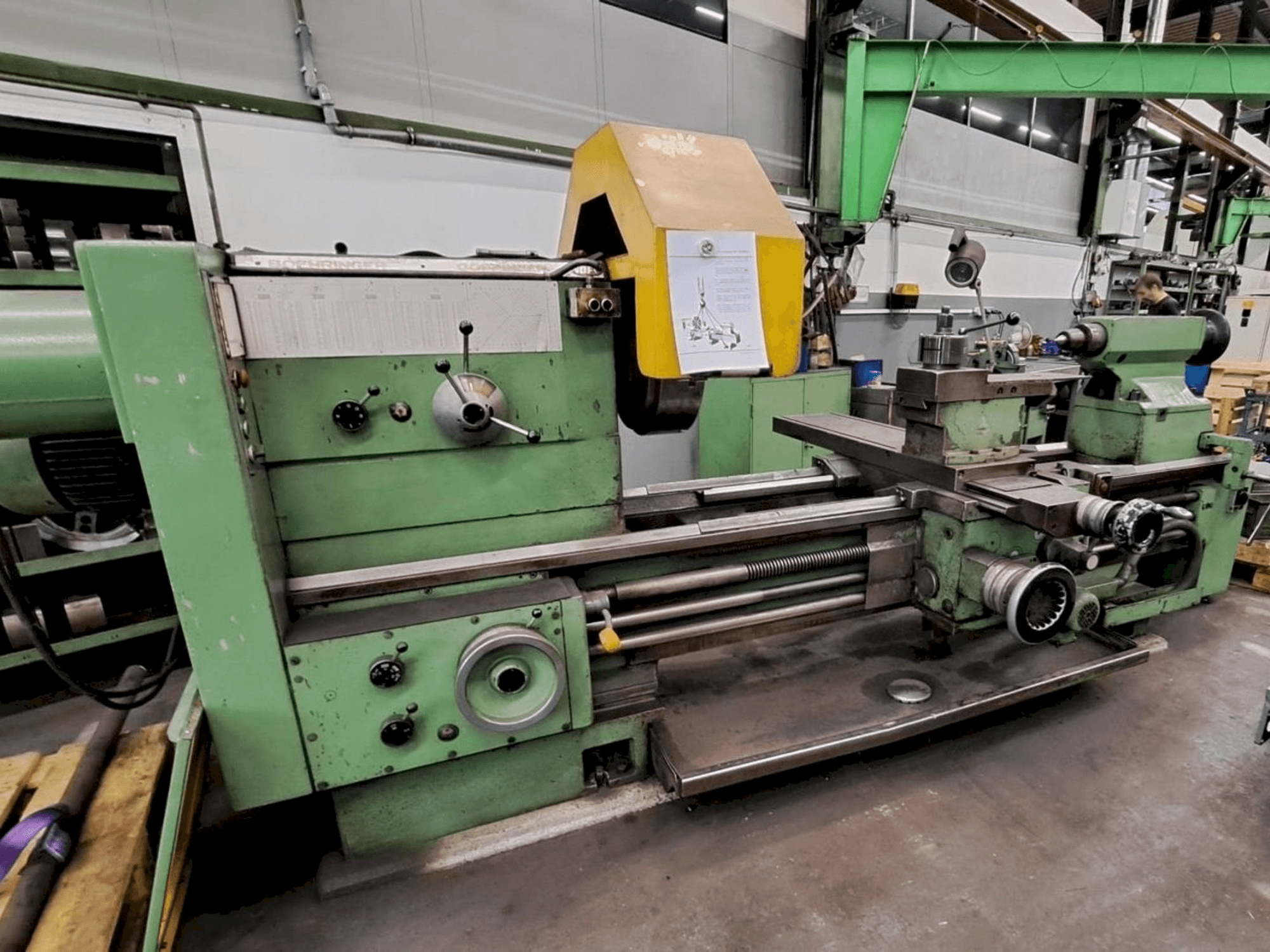

Front view of BOEHRINGER VDF V 800 machine

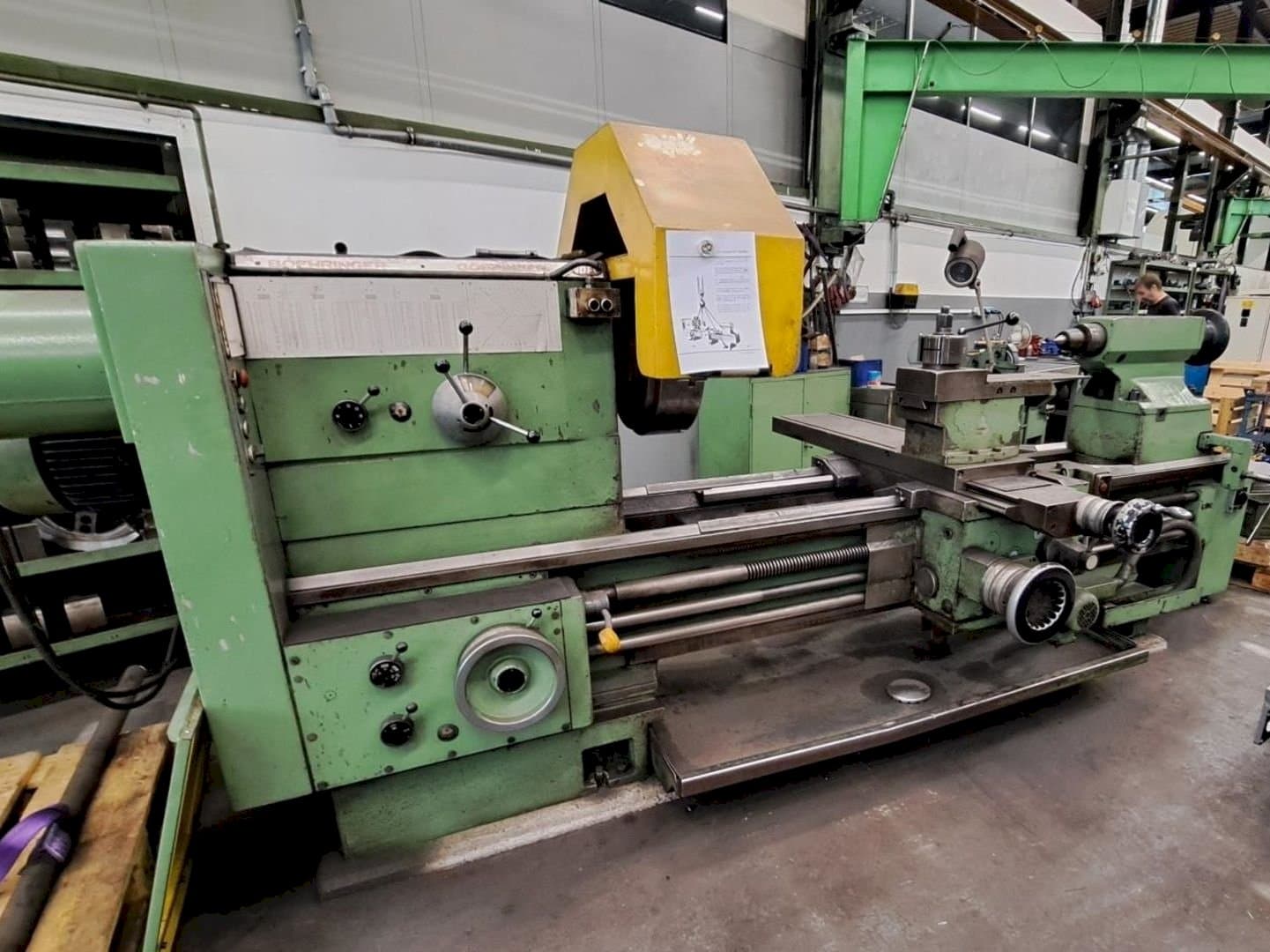

Front view of BOEHRINGER VDF V 800 machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

BOEHRINGER - VDF V 800PL-TUR-BOE-1977-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This BOEHRINGER VDF V 800 lathe was manufactured in the year 1977. The machine has a spindle speed of 5.6 - 1120 rpm, max. turning diameter over bed of 820 mm and a max. turning length of 2000 mm.

Overview

  • brand: BOEHRINGER
  • year: 1977
  • MODEL: VDF V 800
  • application type: Turning
  • Location: Poland
  • machine type: Horizontal Turning Machine

Technical Information - BOEHRINGER VDF V 800

General Data

  • Measurements width: 5000 mm
  • Measurements depth: 2000 mm
  • Measurements height: 1600 mm
  • Machine weight: 5400 kg

Main drive

  • Spindle speed range: 5.6 - 1120 rpm 1/MIN

Media

  • Main electronic connection: 380 / 220 V
  • Power consumption: 25 kw

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Maximum turning diameter over the bed: 820 mm
      • - Maximum turning diameter over slide: 575 mm
      • - Maximum turning length: 2000 mm
      • - Center distance: 2200 mm
      • - Center height: 320 mm
      • - Spindle opening: 82 mm
      • - Number of spindle speed stages: 24
      • - Minimum spindle speed: 18 1/min
      • - Maximum spindle speed: 1400 1/min
      • - Feed rate - longitudinal: 0. 05 - 2. 8 mm/u
    • Qualitative Machine Benefits:
      • - Feed rate - transverse: 0. 04 - 1. 4 mm/u
      • - Spindle opening: 120 mm
      • - Spindle head: din 55022

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
