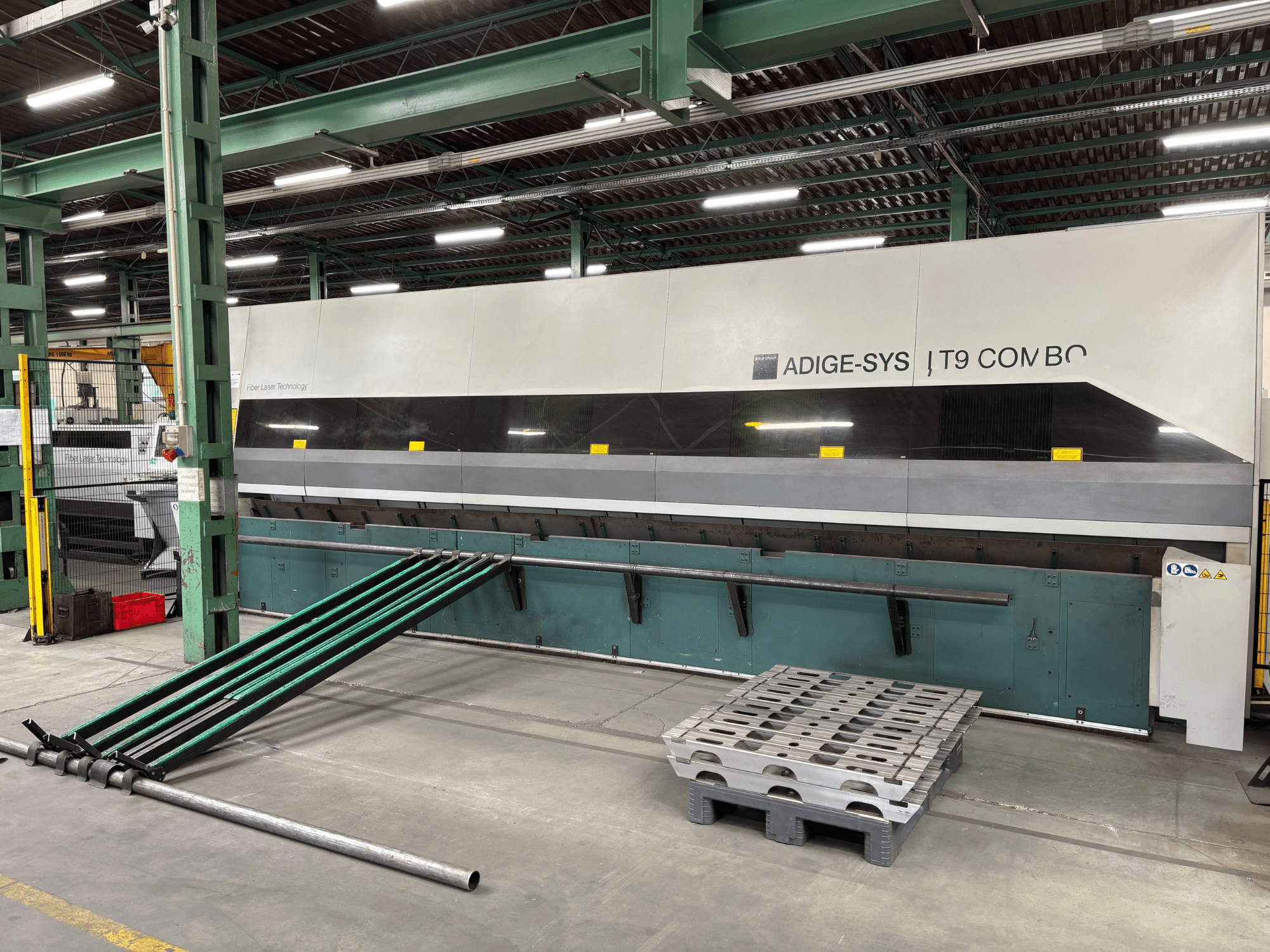

BLM - Adige LT9 Combo Fiber 3kWPL-CUT-BLM-2012-00001

• Rated voltage: 400–460 V AC, 3-phase

• Frequency: 50/60 Hz

• Full load current: 30.8 A

• Tube and profile processing

  • Max raw material length: 6,500 mm

  • Max finished part length: 6,000 mm

  • Max round tube diameter: 225 mm

  • Max square profile: 160 x 160 mm

  • Max rectangular profile: 200 x 100 mm

  • Min round tube diameter: 16 mm

  • Min square profile: 16 x 16 mm

  • Min rectangular profile: 16 x 16 mm

  • Max bar weight (below 6 m): 200 kg

  • Max linear weight: 35 kg/m

  • Max finished part weight: 200 kg

• Sheet metal processing

  • Max sheet size: 3,000 x 1,500 mm

  • Max sheet thickness / table capacity: 20 mm

• Machine electrical data

  • Power supply: 3-phase, without neutral

  • Supply voltage: 400 V +/- 10%

  • Frequency: 50 Hz

  • Installed machine power: 55 kVA

  • Rated current: 80 A

  • Cable cross-section: 35 mm²

  • Connection socket: 125 A

  • Circuit breaker: 125 A

  • Protection rating: IP54 / IP20

Additional equipment

• Cooling unit

  • Manufacturer: STULZ

  • Model: WRAA64

  • Power supply: 3-phase, without neutral

  • Supply voltage: 400 V (460 V) +/- 10%

  • Frequency: 50–60 Hz

  • Installed power: 12 kVA

  • Rated current: 17.2 A

  • Connection socket: 32 A

  • Circuit breaker: 32 A

  • Tank capacity: 150 liters
