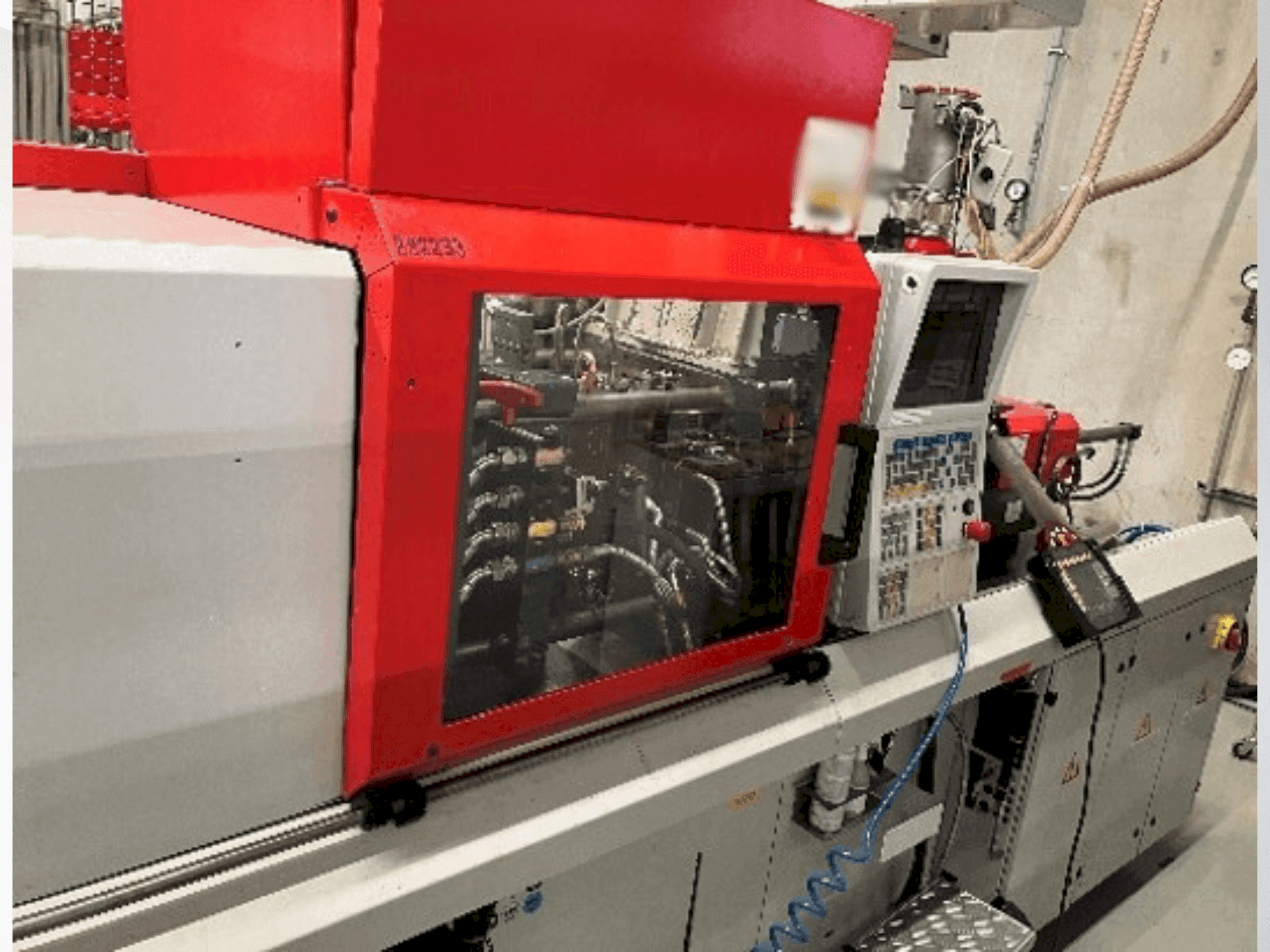

Front view of Arburg Allrounder 320 U 500-150 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Arburg Allrounder 320 U 500-150

Photo Gallery

Arburg - Allrounder 320 U 500-150DE-INJ-ARB-2001-00009

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used Arburg Allrounder 320 U 500-150 For Sale

Show in original language

This Arburg Allrounder 320 U 500-150 was manufactured in 2001. It is a hydraulic injection moulding machine, ideal for precision and efficiency in plastic processing. Consider the opportunity to buy this Arburg Allrounder 320 U 500-150 hydraulic injection moulding machine. Contact us for more information.

Overview

brand: Arburg
year: 2001
MODEL: Allrounder 320 U 500-150
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine

Technical Information - Arburg Allrounder 320 U 500-150

General Data

Measurements width: 2300 MM
Measurements depth: 4500 MM

Injection Unit

Screw diameter: 30 mm
Stroke volume: 77 ccm CM³
Injection pressure: 2210 bar

Clamping unit

Clamping force: 50 kn
Opening stroke: 354 mm
Mould height max: 223 mm
Ejector stroke: 125 mm

Additional Information

Machine Benefits

Qualitative Machine Benefits

Valve gate (number): 1
Hk control points: 6 (measuring points: 3)
Internal pressure: 1
Number of hydraulic core pulls (moving side): 1
Cold water cycles max: fixed site: 1, moving site: 1
Includes extraction wittmann w721-0132
2x temperature control unit hb-therm series 4

Technical Machine Benefits

Tie bar distance: 320 mm
Maximum plate distance: 577 mm
Coupling diameter: 24 mm
Center ring diameter: 125 mm
Robot: type w721, quick coupling qca90 (1), communication connector 9-pol, robot vacuum circles 2, robot gripper circles 3, robot axes x, y, z, c, b.
Temperature control units: temperature control unit 2 at 100 °c, temperature control unit 3 at 100 °c, number of thermolators 2, serie 4, type of controller intern, temperature sensor (mold) yes (1
Area: 10. 35 m²
Oil filling quantity: 120 l
Cable cross-section: 5x50 mm²
Water connection: size 3/4 inch, number of points 2x2

Extra Information

Travel paths: X-550, Y-1200, and Z-1500 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
