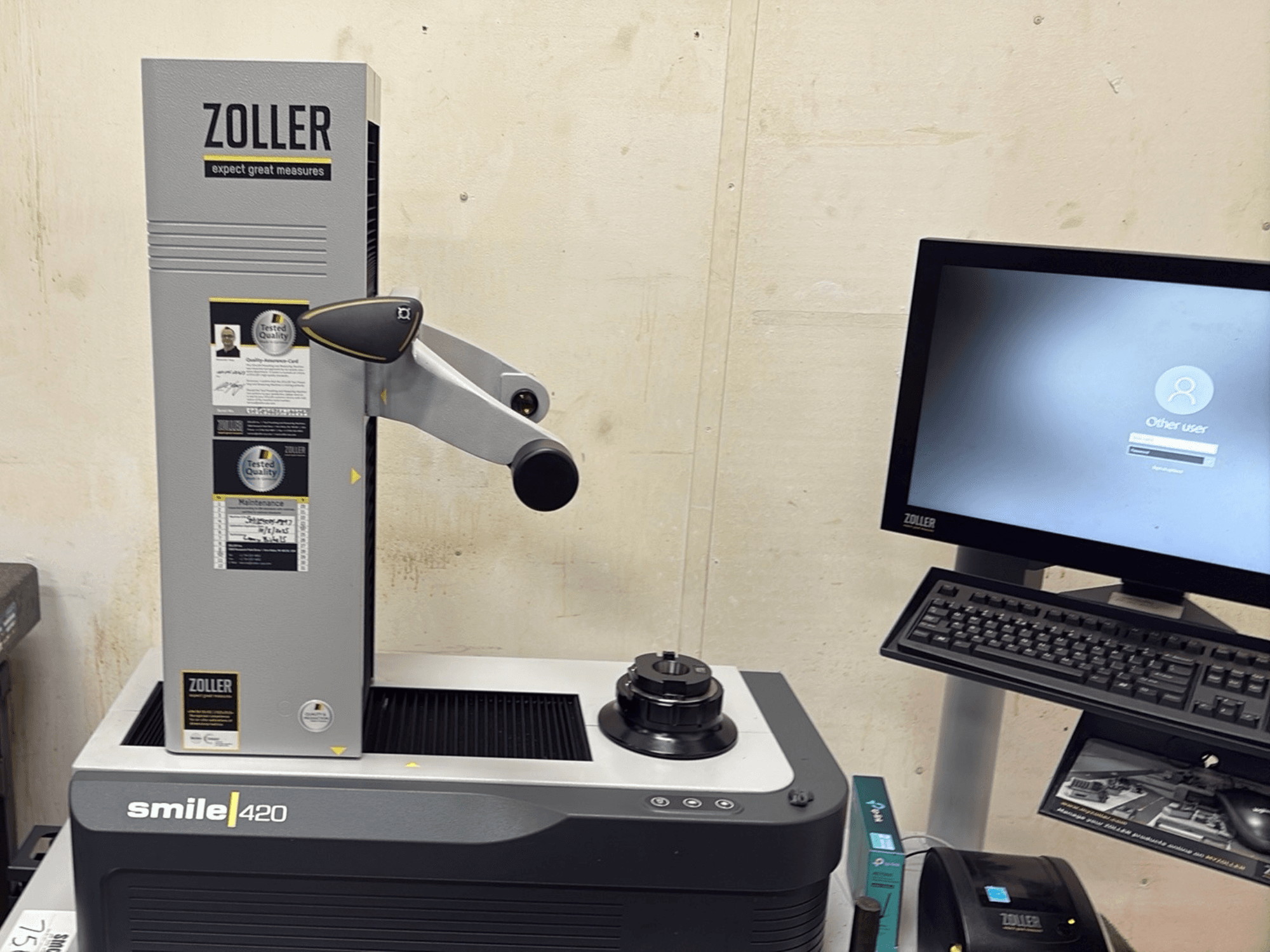

Zoller - Smile 420X US-MEA-ZOL-2023-00001

• Construction: Light alloy measuring column, ergonomic design, shop-floor ready

• Measuring capacity:

  • Max tool diameter: 420 mm

  • Max tool length (Z): 420 / 600 / 800 mm (note: 800 mm requires the table system)

  • Measuring range X: 210 mm

  • Snap gauge diameter: 100 mm

• Accuracy:

  • Display resolution: 1 µm

  • Precision: 2 µm

  • Concentricity: 2 µm

  • Nominal value setting accuracy: 2 µm

• Axes:

  • Up to 3 axes depending on configuration: Z (longitudinal), X (transverse), C (spindle)

  • C-axis motorization optional on some spindle types

• Axis drive options:

  • Manual via ZOLLER eQ single-hand device

  • Manual fine adjustment (optional)

  • Full CNC control of Z/X/C axes (optional)

• Spindle options (high-precision):

  • PCS spindle (power clamping system) compatible with: SK25–SK50, HSK25–HSK63, Capto C3–C6, VDI16–60, KM32–KM63, Hydro chucks D32–D63

  • SK50 high-precision spindle

  • HGV-UZ universal spindle

• Spindle functions (optional):

  • Autofocus

  • ROD – spindle rotary encoder

  • Length limit system "aszm" (linear or rotary)

• Optic system (standard optic carrier):

  • Transmitted light camera

  • Field of view: 7.3 × 6.7 mm

  • Working distance: 100 mm

  • Sensor: 1/3" CCD monochrome

  • Cutting edge inspection with 12 red LEDs

Additional equipment

• Table system (required to achieve 800 mm tool length)
