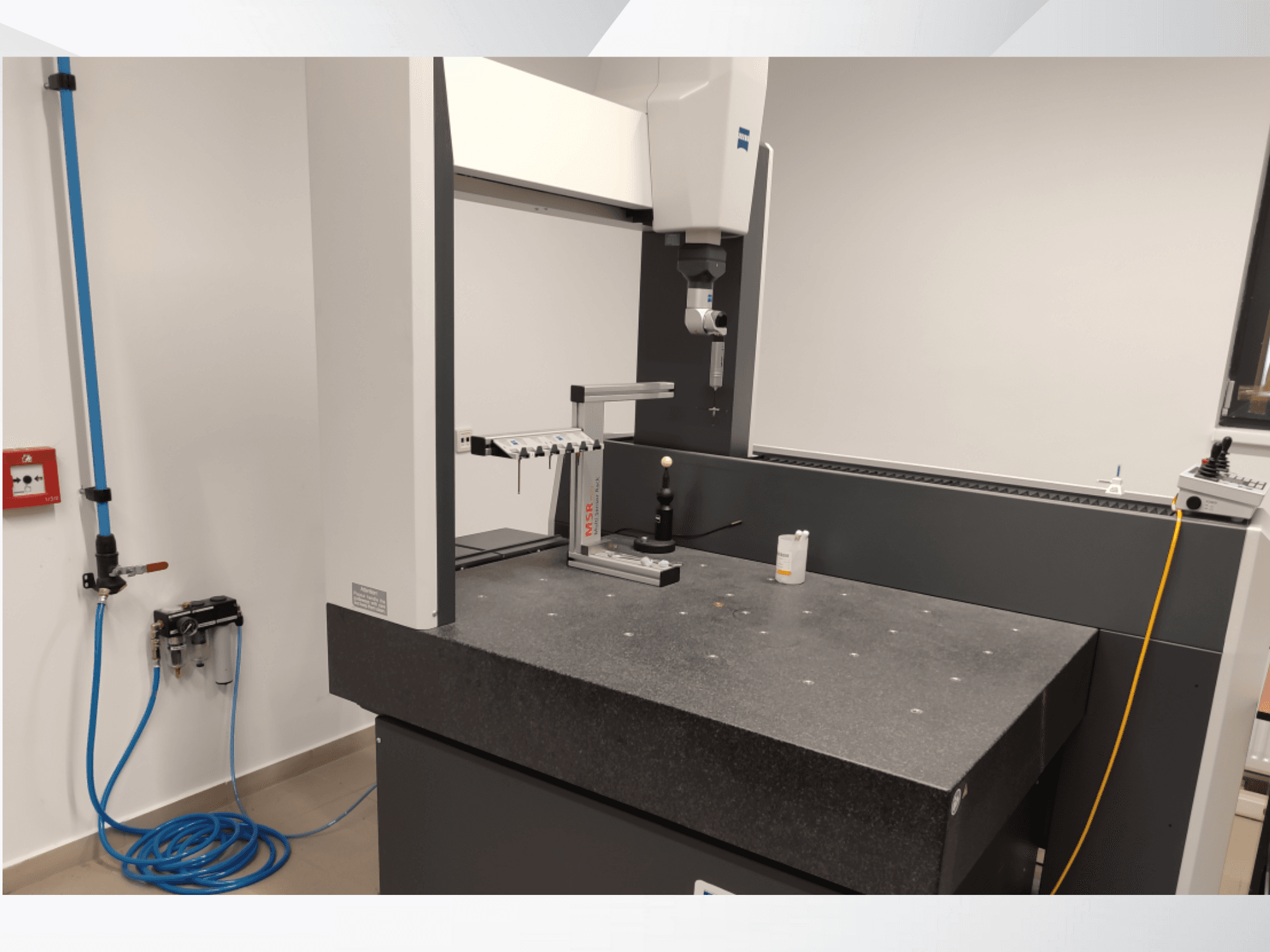

ZEISS - Contura 7/10/6 RDSRO-MEA-ZEI-2019-00001

Additional information

• Maximum workpiece size: approx. 1344 x 910 x 716 mm

• Maximum workpiece weight: 730 kg

• Table height: 850 mm

• Equipped with vibration damping system

• Sensor System:

• Articulating head: tilt ±180°, rotation increments 2.5°

• Scanning speed: up to 150 points/second

• Max. stylus length: 150 mm

• Max. stylus weight: 15 g

• Min. stylus tip diameter: 0.3 mm

• Accuracy (per ISO 10360 standards):

• Length measurement error (E₀): 1.7 + L/350 µm (at 18–22°C)

• Scanning error (THP): 2.7 µm

• Form measurement error (RONt): 1.7 µm

• Repeatability (R₀): 1.2 µm

• Controller: ZEISS C99L

• Software: ZEISS CALYPSO, ZEISS GEAR PRO, ZEISS HOLOS

• Control mode: Motorized / CNC

• Interface: Ethernet, USB

• Performance:

• Drive system: Motorized CNC

• Travel speed (axes): 0–70 mm/s

• Max. vector speed: 465 mm/s

• Max. acceleration: 1.85 m/s²

• Scanning speed: up to 125 mm/s

• Utilities:

• Power supply: 100–240V AC (±10%), 50–60 Hz

• Max. power consumption: 800 VA

• Typical power usage: 200 W

• Compressed air: 6–8 bar, pre-cleaned, dry (ISO 8573-1 Class 4)

• Air consumption: max. 120 Nl/min

• Environmental Conditions:

• Operating temperature: 18°C–22°C

• Relative humidity: 30–60% (non-condensing)

• Compliance & Certifications:

• Conforms to EC Machine Directive 2006/42/EC

• EMC Directive 2014/30/EU

• Quality management: ISO 9001:2008

• Environmental management: ISO 14001:2004

• Accredited ISO / IEC 17025:2005
