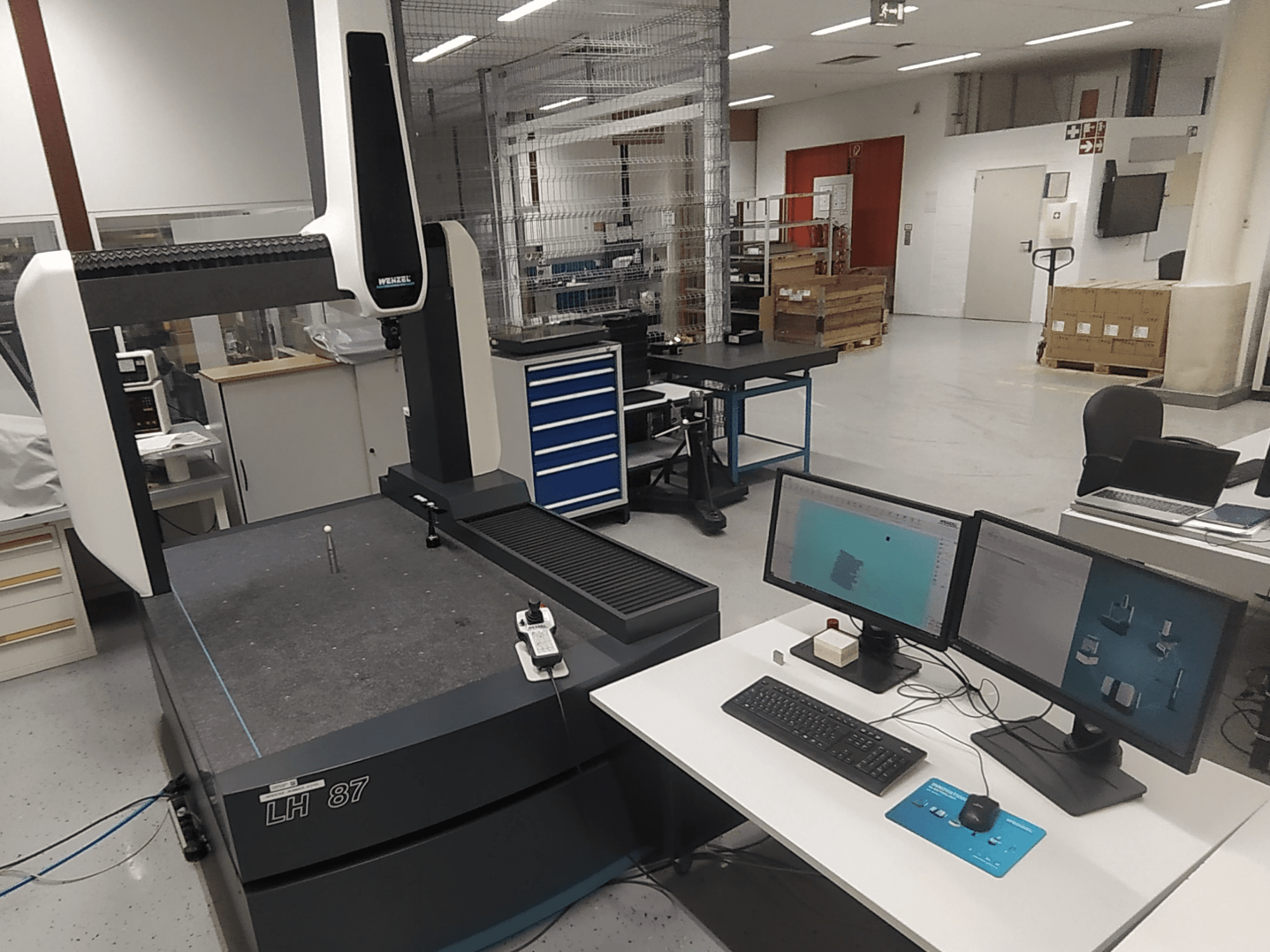

This 3-axis Wenzel LH 87 CMM machine was manufactured in 2014. It features a measuring range of 800 mm in X, 1000 mm in Y, and 700 mm in Z, with a maximum component weight capacity of 800 kg. The machine is equipped with an air-bearing system across all axes and a Renishaw PH10M Plus motorized indexing probe head. If you are looking to get high-quality measurement capabilities, consider the Wenzel LH 87 CMM machine we have for sale. Contact us for further details.

Overview

brand: Wenzel
year: 2014
MODEL: LH 87
application type: Measuring
Location: Germany
machine type: Coordinate Measuring Machine (CMM)

Technical Information - Wenzel LH 87

Movement

Number of Axes: 3
X-axis Travel: 800 mm
Y-axis Travel: 1000 mm
Z-axis Travel: 700 mm

Additional Information

- Volumetric Length Measuring Error (E0, MPE): 2.2 µm + (L / 300.0 mm) µm

- Length Measuring Error along Optical Axis (E150, MPE): 2.2 µm + (L / 300.0 mm) µm

- Max. Component / Workpiece Weight: 800 kg

- Axis Bearings: Air-bearing system integrated across all axes

- CNC Control Unit: WPC 3-axis contouring configuration

- Controller Hardware: WPC2040 Basic combined with Renishaw PHC10-3 PLUS controller rack unit

- Machine Control Panel: Wenzel HT400 wired manual joystick control handbox

- Probe Head System: Renishaw PH10M Plus motorized indexing probe head

- Probing Sensor System: Renishaw TP200 high-precision strain-gauge touch-trigger probe

- Change Rack System: Renishaw SCR200 6-port autonomous stylus changer bridge (5 ports actively equipped in visual configuration)

- Active Stylus Configurations (on-rack):

* Port 1: Taster 1001 (Ø 1.00 mm)

* Port 2: Taster 2001 (Ø 2.0 mm Cylindrical)

* Port 3: Taster 3001 (Ø 2.00 mm Ruby Ball)

* Port 4: Taster 4001

* Port 5: Port 5 configured (Visual confirmation: angled/star setup)

- Evaluation PC Hardware: Fujitsu Esprimo Desktop PC Tower housed in a dedicated lower-desk controller bay compartment

- Visual Workstation Monitors: 2 x BenQ 24" TFT flat screen displays

- Input Peripherals: Wired keyboard, mouse, and Wenzel-branded workflow mousepad

- Core Operating System: Windows 10 Pro (Version 10.0, Build 19045, 64-bit Edition)

- Metrology Software Suites:

* Wenzel WM | Quartis Standard (Build R2025-1 / R2025-2 back-compatible ecosystem)

* CM Wenzel CNC Control Geometry Software Module

* CM Wenzel CNC Free-Form Surface Software Module

- Software Licensing & Security: Metrokey Dongle Protection (ID: 45984, Status: Valid, Local Workstation), Driver Version 7.6.0

- Native CAD Data Core Interfaces: STEP, NX, VDA-FS, IGES, EMD (Q-DAS), IMPEX-ELEM, CURVE, SURF, IPH, PRC

- Optional Extension Interfaces: CATIA, Pro-E, SolidWorks

- Included Calibration Accessories: High-purity Ceramic Reference Calibration Sphere complete with base extension column block

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
