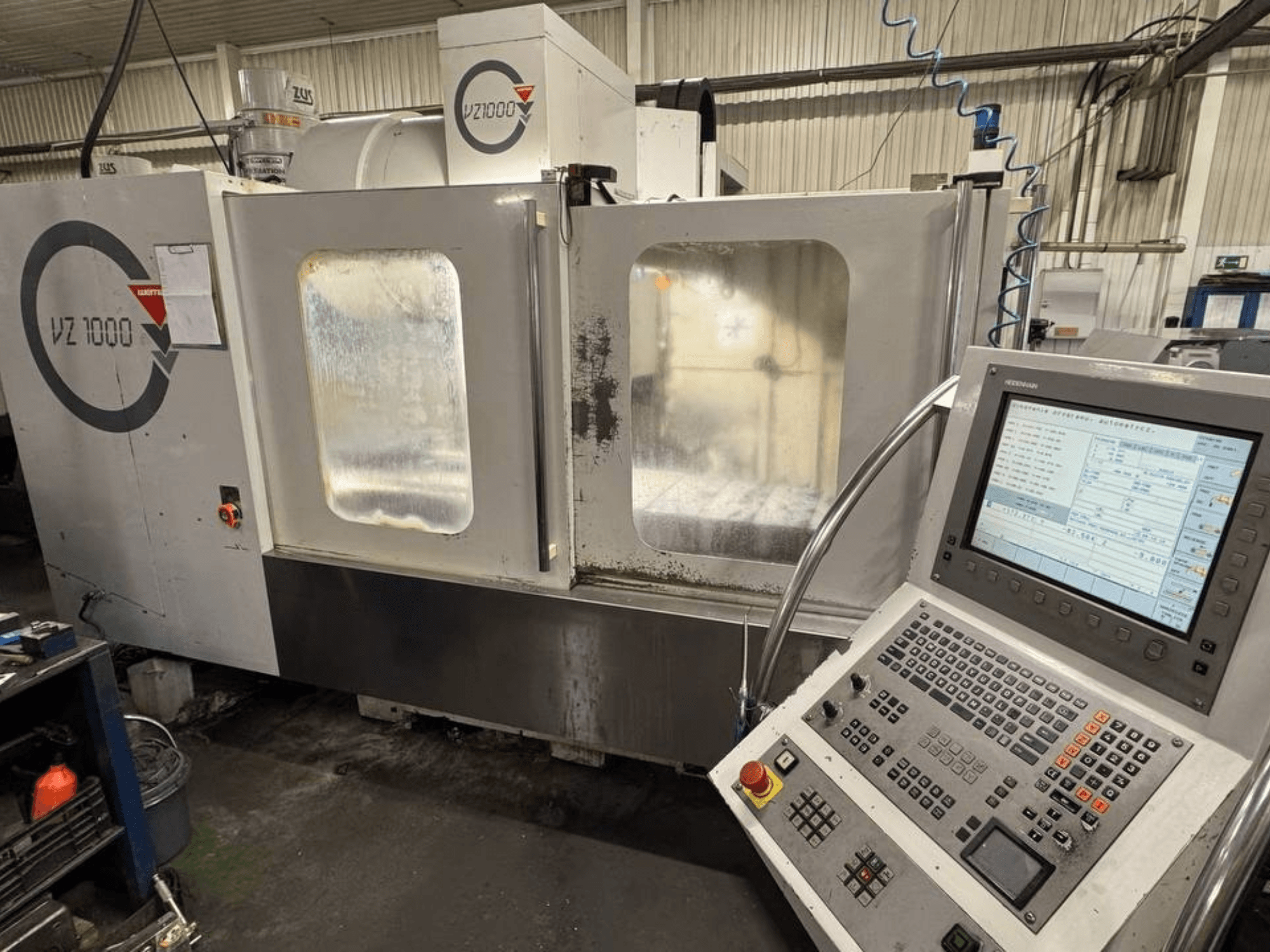

This 4-axis WEMAS VZ 1000 vertical machining center was manufactured in 2007. It features an X-axis travel of 1000 mm, Y-axis travel of 610 mm, and Z-axis travel of 660 mm. The machine includes a robust table size of 1300 x 600 mm and a maximum table load of 700 kg. If you are looking to get high-quality machining capabilities, consider the WEMAS VZ 1000 machine we have for sale. Contact us for further details.
Overview
- brand: WEMAS
- year: 2007
- MODEL: VZ 1000
- application type: Milling
- Location: Poland
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - WEMAS VZ 1000
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: TNC 530
Dimensions
- Machine Weight: 12000 kg
- Table Load: 700 kg
Movement
- Number of Axes: 4
- X-axis Travel: 1000 mm
- Y-axis Travel: 610 mm
- Z-axis Travel: 660 mm
Technical Specification
- Spindle Power: 15 kW
- Spindle Speed: 8000 RPM
- Taper Size: SK 40
Additional Information
Axes: 3 linear axes (X/Y/Z); 4th axis available via rotary table — see Additional equipment
Electrical data: 35 kVA, 400 V, 3 + PE
Table size: 1300 × 600 mm
Tool changer: Swing-arm ATC, 20 tools
Additional equipment
4th-axis rotary table (mounted on the table)
Through-spindle coolant (CTS)
Tool measurement probe: Renishaw TS27R
Chip conveyor
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
