Weiler E120x2000

Photo Gallery

Weiler - E120x2000DE-TUR-WEI-2006-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Weiler E120x2000 For Sale | gindumac.com

Show in original language

This Weiler E120x2000 was manufactured in 2006. It features a robust 400 V operating system, a power rating of 55 kVA, and can handle workpieces up to 6000 kg. With a maximum swing over bed of 1200 mm and a center distance of 2000 mm, it's ideal for large-scale turning tasks. Includes a chip conveyor and three-jaw chuck. Contact us for more information about this machine.

Overview

brand: Weiler
year: 2006
MODEL: E120x2000
production hours: 64831
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine

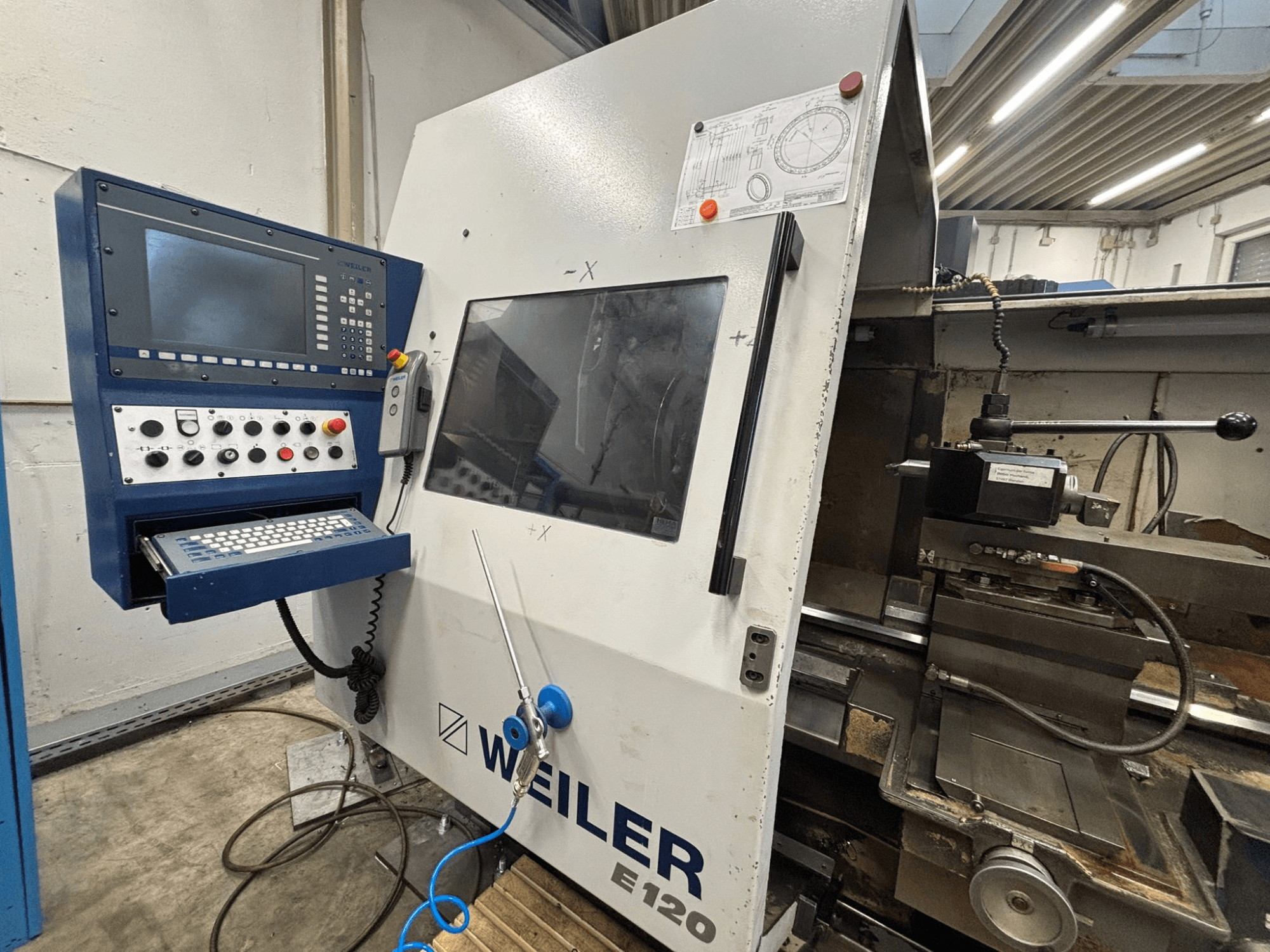

control unit brand: SIEMENS

Technical Information - Weiler E120x2000

Control Unit

Control Brand: SIEMENS
Control Model: SINUMERIK 840 D

Additional Information

Operating voltage: 400 V
Frequency: 50 Hz
Power rating: 55 kVA
Center height: 600 mm
Center distance: 2000 mm
Max. turning length: 2020 mm
Max. swing over cross slide: 830 mm
Max. swing in gap: 1230 mm
Faceplate gap length: 230 mm

Spindle

Spindle head size: 15
Metric taper: 171
Spindle diameter at front bearing: 235 mm
Faceplate diameter: 1000 mm
Max. chuck diameter: 500 mm
Max. torque: 8000 Nm

Tooling system / Slides

Chisel cross section: 40 x 40 mm
Number of bed slides: 1
Number of cross slides: 1
Longitudinal travel: 2020 mm
Cross travel: 590 mm

Tailstock

Max. tailstock travel: 2000 mm
Tailstock equipped

Additional equipment

Three-jaw chuck
Chip conveyor
Documentation

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
