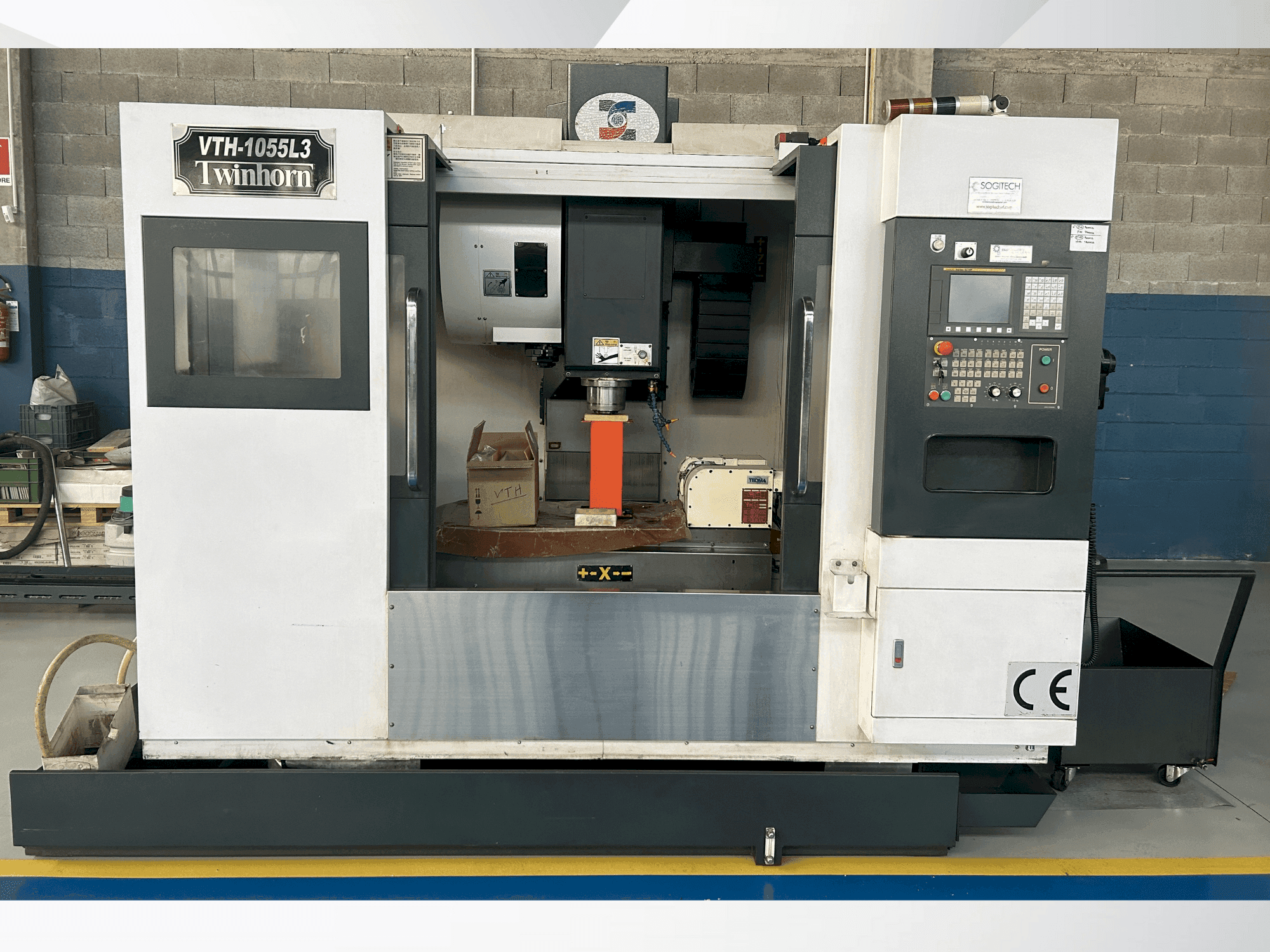

Front view of Twinhorn VTH-1055L3 machine
Front view of Twinhorn VTH-1055L3 machine

Twinhorn - VTH-1055L3IT-MIL-TWI-2015-00001

£ 44,350
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Twinhorn VTH-1055L3 was manufactured in 2015. It features a table size of 1200x530, BT40/DIN 69871-40 spindle mount, and a high-speed spindle at 12,000 RPM. Equipped with a FANUC 0i MF control and a 10.4" color LCD monitor, it offers efficient machining capabilities. Consider the opportunity to buy this Twinhorn VTH-1055L3 vertical machining centre. Contact us for more information about this machine.

Overview

  • brand: Twinhorn
  • year: 2015
  • MODEL: VTH-1055L3
  • application type: Milling
  • Location: Italy
  • machine type: Vertical Machining Centre
  • control unit brand: FANUC

Technical Information - Twinhorn VTH-1055L3

Control Unit

  • Brand: FANUC
  • Model: 0i MF

Movement

  • X-AXIS Rapid traverse: 48 m/min
  • Y-AXIS Rapid traverse: 48 m/min
  • Z-AXIS Rapid traverse: 48 m/min
  • X-AXIS Movement: 1020 mm
  • Y-AXIS Movement: 500 mm
  • Z-AXIS Movement: 510 mm

Additional Information

Machine Benefits

Technical Machine Benefits

  • Size: 1200 x 530 mm / permitted table weight: 600 kg
  • Spindle mount: bt40/din 69871-40 / spindle speed: 12000 rpm / spindle power: 7. 5/11 kw / external spindle coolant system / rigid tapping / oil spindle cooling
  • Water gun - air gun / internal work light / internal washdown / remote handwheel / transformer / belt chip conveyor
  • 3-color machine status light / tsudakoma 4th/5th axis tn 101 table / fanuc 0i mf - 10. 4" color lcd monitor / ce mark
  • Machine weight: 6000 kg / dimensions of machine (lxwxh): 3300 x 2450 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
