TRUMPF TRUMATIC 500

Photo Gallery

TRUMPF - TRUMATIC 500DE-PUN-TRU-1999-00003

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used TRUMPF TRUMATIC 500 For Sale | gindumac.com

Show in original language

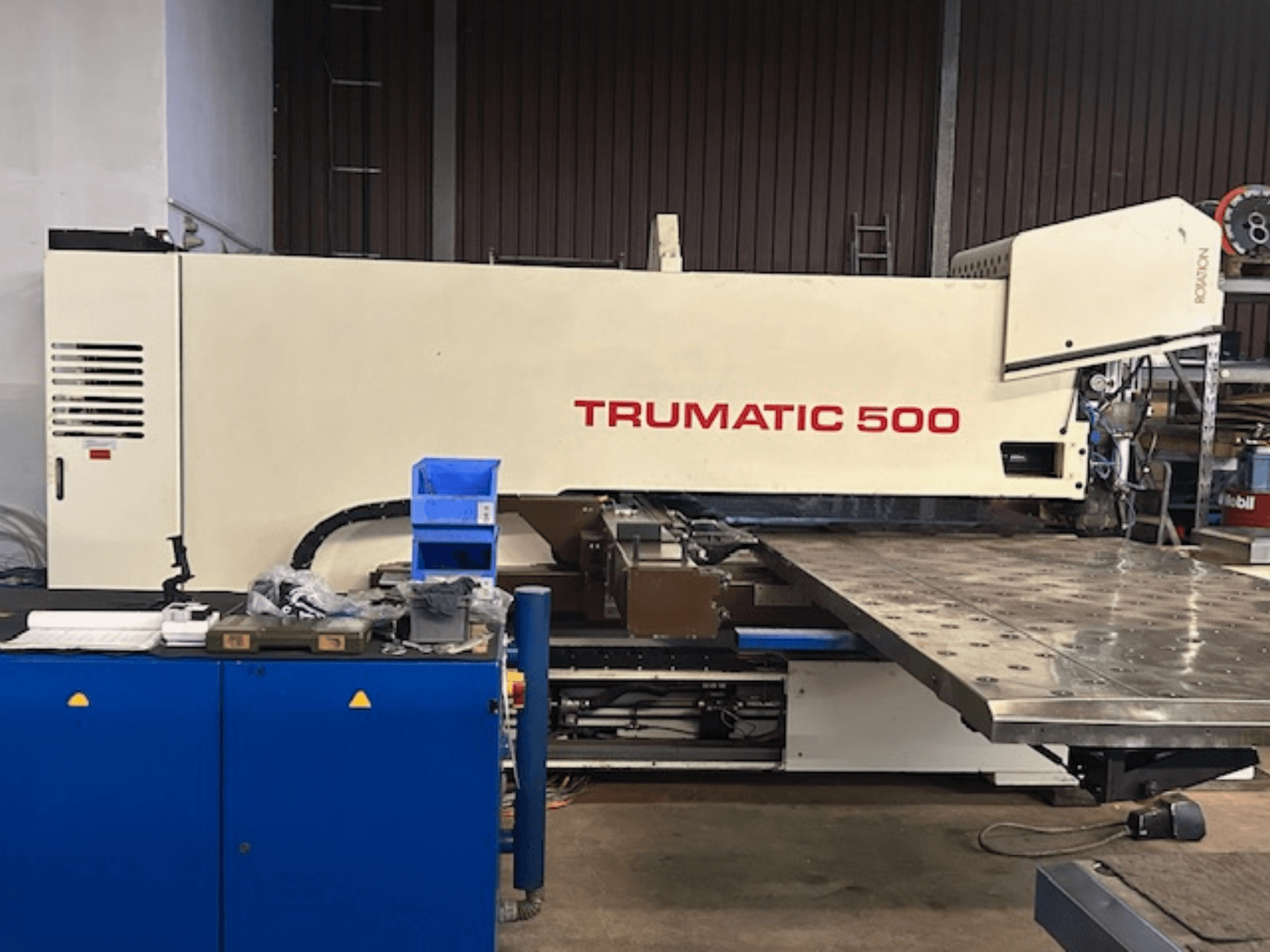

CNC punching machine manufactured in 1999. This TRUMPF TRUMATIC 500 features a maximum punching force of 220 kN and a working area of 3,000 mm by 1,600 mm. It is equipped with a Bosch control system and is multitool capable. If you are looking to get high-quality punching capabilities, consider the TRUMPF TRUMATIC 500 machine we have for sale. Contact us for further details.

Overview

brand: TRUMPF
year: 1999
MODEL: TRUMATIC 500
production hours: 51135
application type: Punching
Location: Germany
machine type: CNC Punching Machine
control unit brand: BOSCH

Technical Information - TRUMPF TRUMATIC 500

Control Unit

Control Brand: BOSCH

Dimensions

Machine Weight: 13800 kg

Movement

Number of Axes: 2
X-axis Travel: 3000 mm
Y-axis Travel: 1600 mm

Technical Specification

Punching Force: 220 Kn

Additional Information

Programming system: Trumagraph
Supply voltage: 400 V / 50 Hz
Connected load: 19 kVA
Control voltage: 24 V
Required fuse protection: 3 × 35 A
Compressed air requirement: 6 bar
Multitool capable
Partially overhauled
Operating hours (mechanical counter): 51,135 h

Additional equipment

2 tools with cassette (for commissioning)
Documentation available

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
