TRUMPF - TRUMATIC 500PL-PUN-TRU-1998-00001

£ 10,251
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

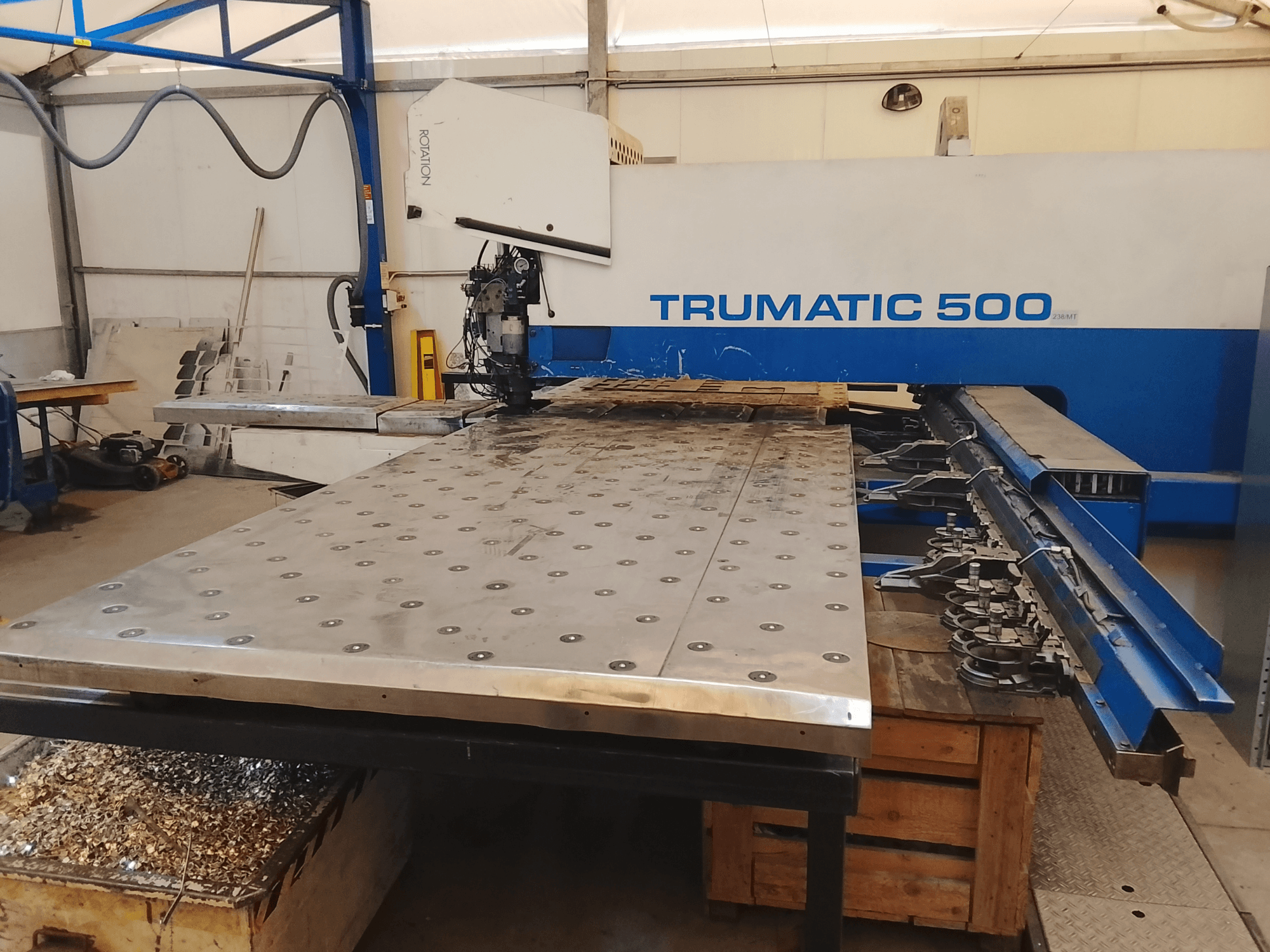

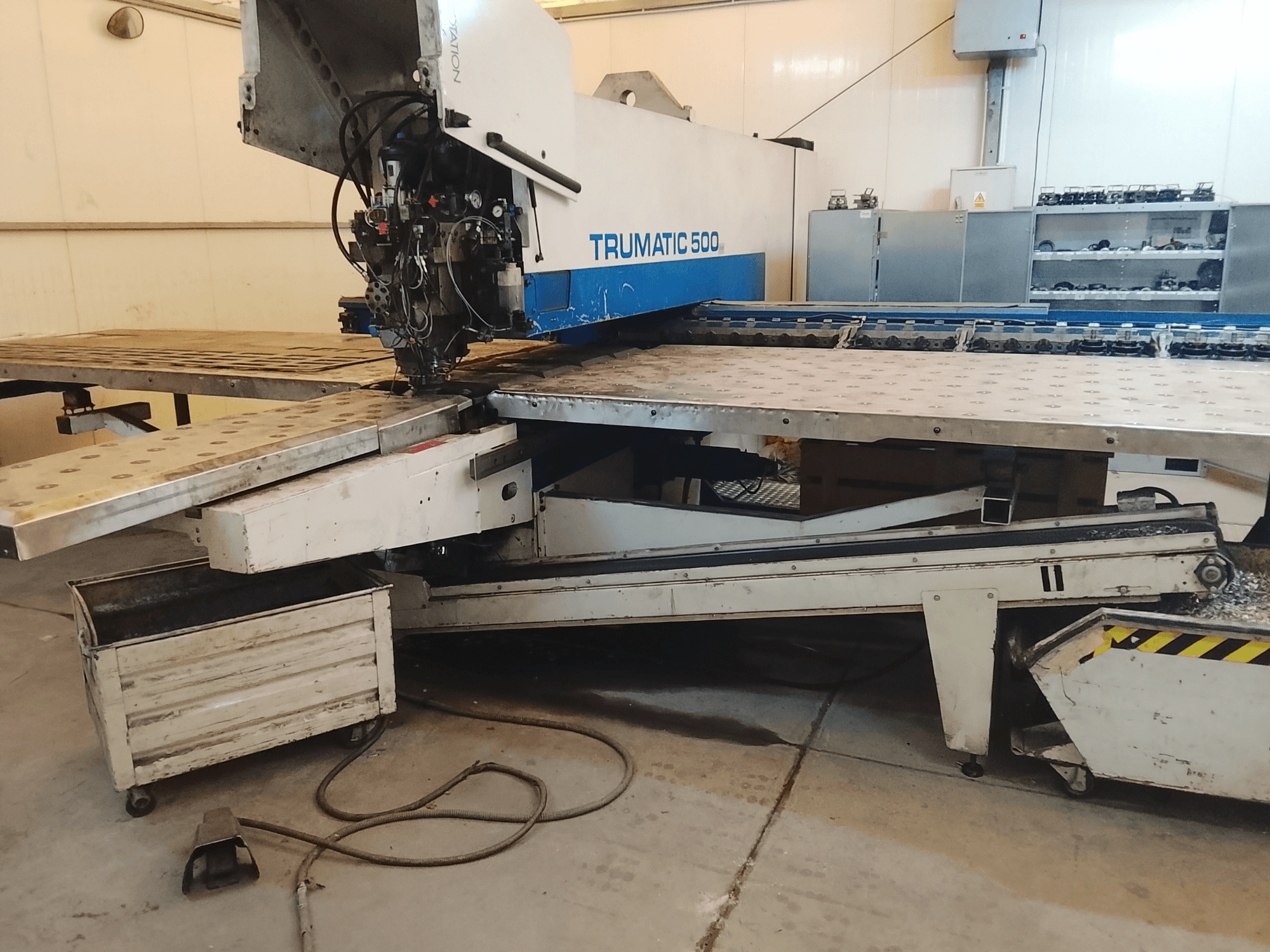

This TRUMPF TRUMATIC 500 was manufactured in 1998. It features a maximum punching force of 220 kN and can handle sheet thicknesses up to 6 mm. The machine accommodates workpieces up to 150 kg, with a working range of 3000 mm on the X-axis and 1500 mm on the Y-axis. Contact us for more information about this machine.

Overview

  • brand: TRUMPF
  • year: 1998
  • MODEL: TRUMATIC 500
  • application type: Punching
  • Location: Poland
  • machine type: CNC Punching Machine
  • control unit brand: TRUMPF

Technical Information - TRUMPF TRUMATIC 500

Control Unit

  • Control Brand: TRUMPF

Dimensions

  • Machine Depth: 6000 mm
  • Machine Height: 2300 mm
  • Machine Length: 6900 mm
  • Machine Weight: 13800 kg
  • Table Length: 1500 mm
  • Table Load: 100 kg
  • Table Width: 3000 mm

Technical Specification

  • Max. Sheet Thickness: 6 mm
  • Punching Force: 220 Kn

Additional Information

  • Maximum punching force: 220 kN (approx. 22 t)

  • X-axis working range: 3000 mm without repositioning

  • Y-axis working range: 1500 mm

  • Maximum sheet thickness (steel): 6 mm

  • Maximum punching diameter: 76.2 mm

  • Maximum workpiece weight: 150 kg

  • X-axis speed: up to 90 m/min

  • Y-axis speed: up to 60 m/min

  • Stroke rate: up to 900 strokes/min in nibbling mode

  • Power supply: 400 V / 50 Hz, three-phase

  • Connected electrical load: approx. 19 kVA

  • Required compressed air pressure: 6 bar

The machine is in working condition. It includes a large set of punches, dies, and tool holders.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
