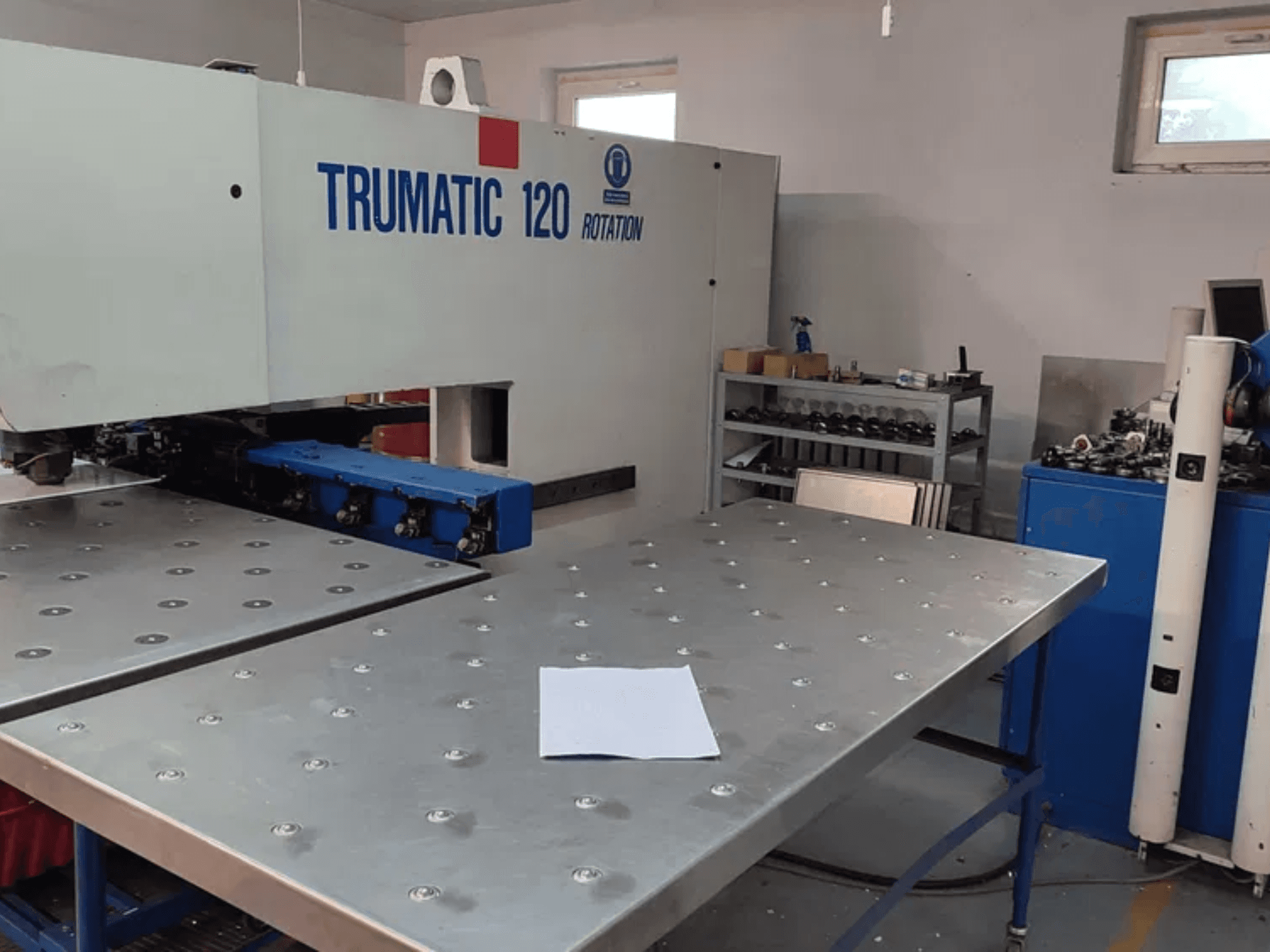

CNC punching machine manufactured in 1991. This TRUMPF TRUMATIC 120R features a punching force of 15 tons and a maximum punching diameter of 38 mm. It offers a working area of 1000 x 2000 mm with repositioning and includes a complete set of tools. If you are looking to get high-quality punching capabilities, consider the TRUMPF TRUMATIC 120R machine we have for sale. Contact us for further details regarding this machine.
Overview
- brand: TRUMPF
- year: 1991
- MODEL: TRUMATIC 120R
- application type: Punching
- Location: Poland
- machine type: CNC Punching Machine
Technical Information - TRUMPF TRUMATIC 120R
Dimensions
- Machine Length: 3800 mm
- Machine Weight: 4300 kg
Technical Specification
- Punching Force: 150 Kn
Additional Information
Maximum sheet thickness: 4 mm
Maximum punching diameter: 38 mm
Working area without repositioning: 1000 x 1000 mm
Working area with one repositioning: 1000 x 2000 mm
X/Y axis speed: not specified
Rotation speed: 360 degrees per second (full rotation)
Maximum stroke rate: 340 strokes per minute
Control system: TRUMAGRAPH CC 200
Automatic tool change: 9 tool stations
Power requirement: 15 kVA / 50 Hz
Documentation: Complete documentation included, together with machine history
Additional equipment
Large set of tools
Two additional tables to extend the working area
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
