Trotec - Speedmarker 700 SM700HTDE-LAS-TRO-2020-00001

Name: Trotec Speedmarker 700 SM700HT
Brand: Trotec
SKU: DE-LAS-TRO-2020-00001
Price: 29400 GBP
Availability: InStock

£ 29,400

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
TROTEC Speedmarker 700 SM700HT FIBER Laser Marking

Show in original language

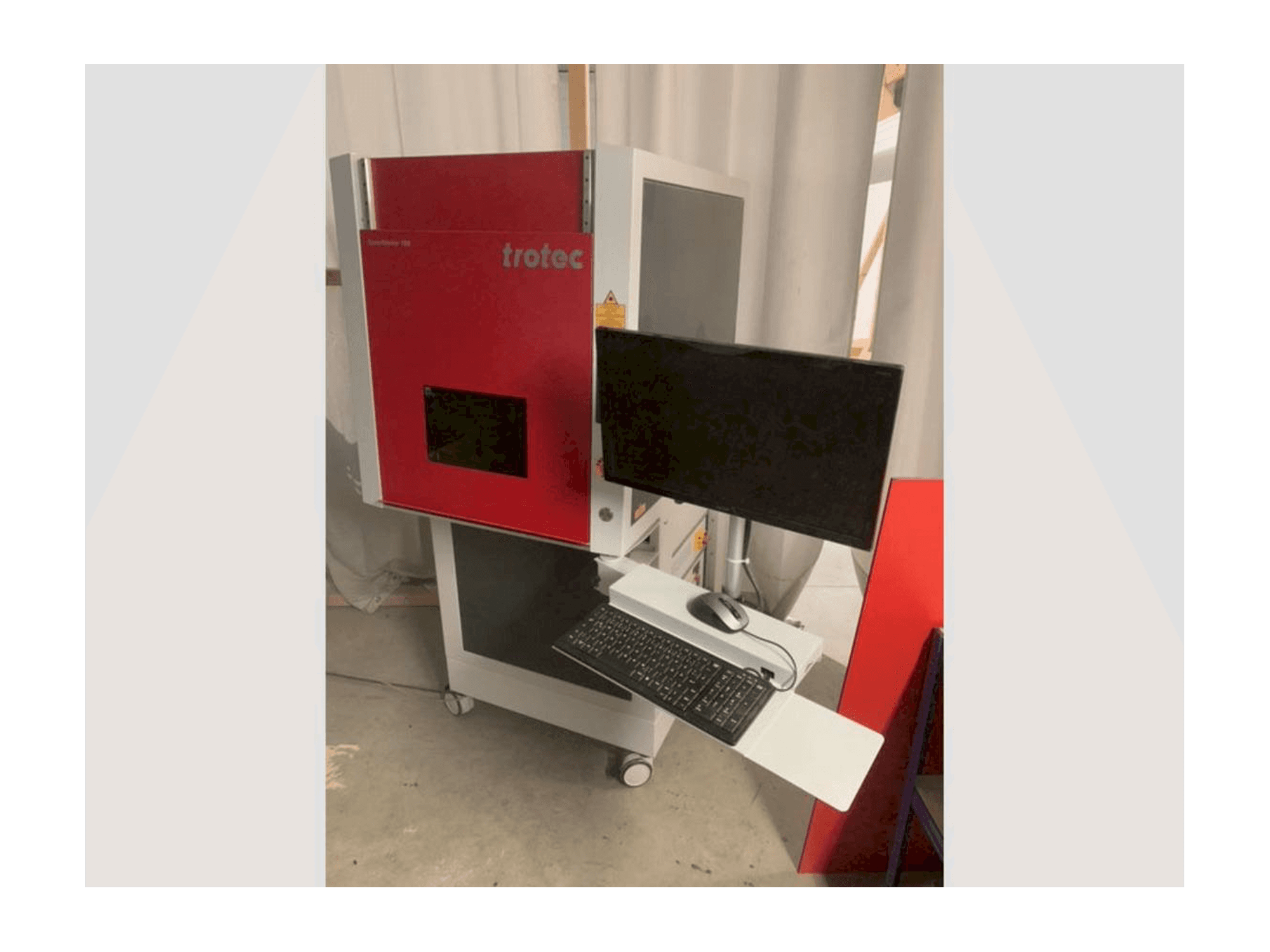

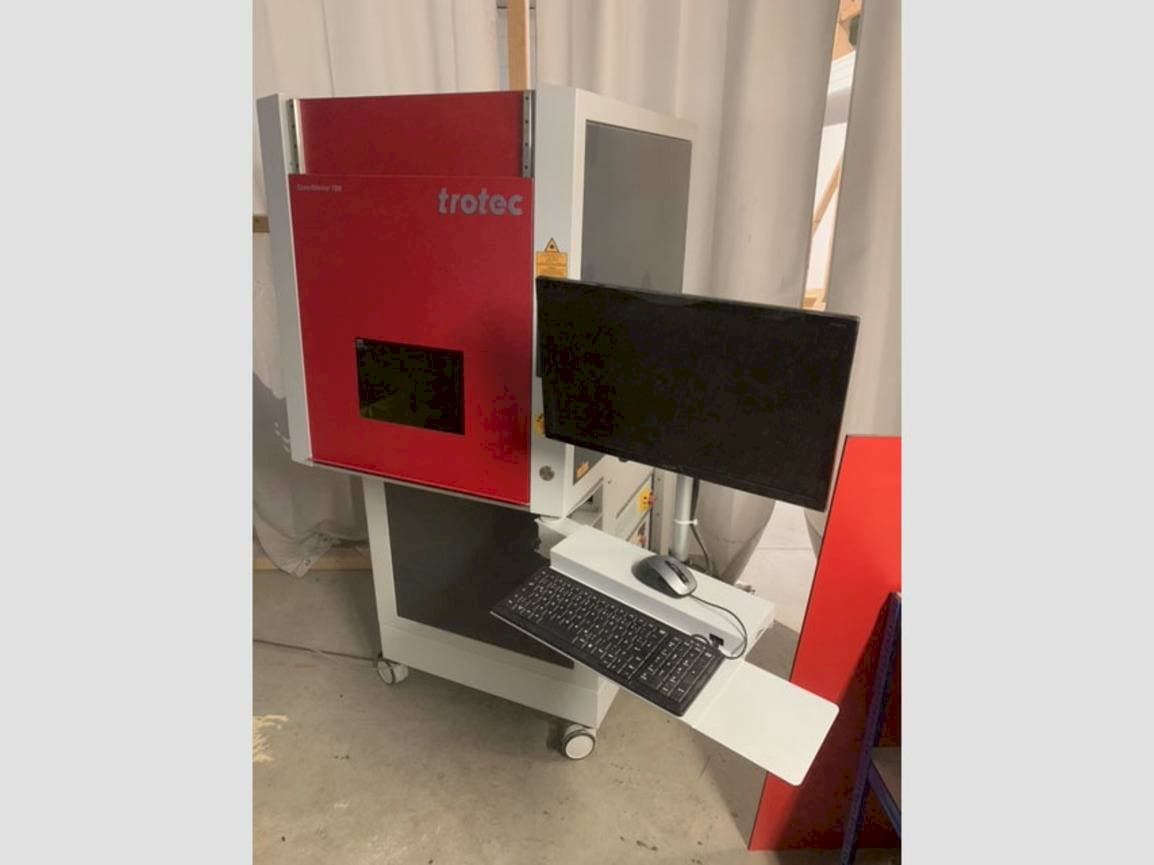

This TROTEC Speedmarker 700 SM700HT FIBER Laser Marking was manufactured in the year 2021 in Germany. The machine has not been used apart from the instruction and is like new. It is equipped with a fiber laser and can operate with a max. load of 1.5 kg.

Overview

brand: Trotec
year: 2020
MODEL: Speedmarker 700 SM700HT
application type: Other Sheet Metal Machinery
Location: Germany
machine type: Laser Marking Machine
availability: Immediately

Technical Information - Trotec Speedmarker 700 SM700HT

General Data

Measurements width: 780 mm
Measurements depth: 981 mm
Measurements height: 1802 mm

Main drive

Laser type: FIBER

Movement

X-AXIS Movement: 510 mm
Y-AXIS Movement: 190 mm

Additional Equipment

- Laser beam sources: Wavelength 1065 +- 5nm, M²= 1.6, laser protection class 4
- Scan head: galvanometer deflection unit, standard: plane field objective F-Theta 160mm, labelling field approx. 120x120mm
- Laser control interface: Ready for operation, laser start, marking finished, laser emission, emergency off, safety shutdown
- Cooling: Air-cooled
- Labelling software: Speedmark
- Options: Pilot laser 650mm /<1mW
- Lenses: f=100mm, labelling field 70x70mm, f=160mm, labelling field 120x120mm, f=254mm, labelling field 190x190mm
- Laser power: FL MOPA laser

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Speedmark software and direktmark printer driver
- - Software-controlled z-axis
- - Industrial pc
- - Pilot and focus laser
- - Integrated digital v42ios(41/40)
- - Clamping range 3-jaw chuck outer diameter: 3 - 67 mm inner diameter: 23 -98 mm
- - Lifting door dimensions (wxh): approx. 600 x 370 mm / software-controlled z-axis: 395 m travel, additional manual operation via buttons (up - down) / working height seated workstation approx. 750 mm / working height standing workstation approx. 950mm
- - T-slot plate (lxw): 375x400mm / labelling field with controlled x-axis: 440 x 120 mm (with lens f = 160 mm), 510x190mm (with lens f = 254mm) / labelling field with controlled x and y axis: 440x410mm (with lens f = 160mm), 510x480mm (with lens f = 254mm)
- - T-slot plate y axis (lxw): 300x375mm / 20 w laser
Qualitative Machine Benefits:
- - Equipped with a fiber laser

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
