TRAUB - TNX 65/42SI-TUR-TRA-2012-00001

£ 34,367
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

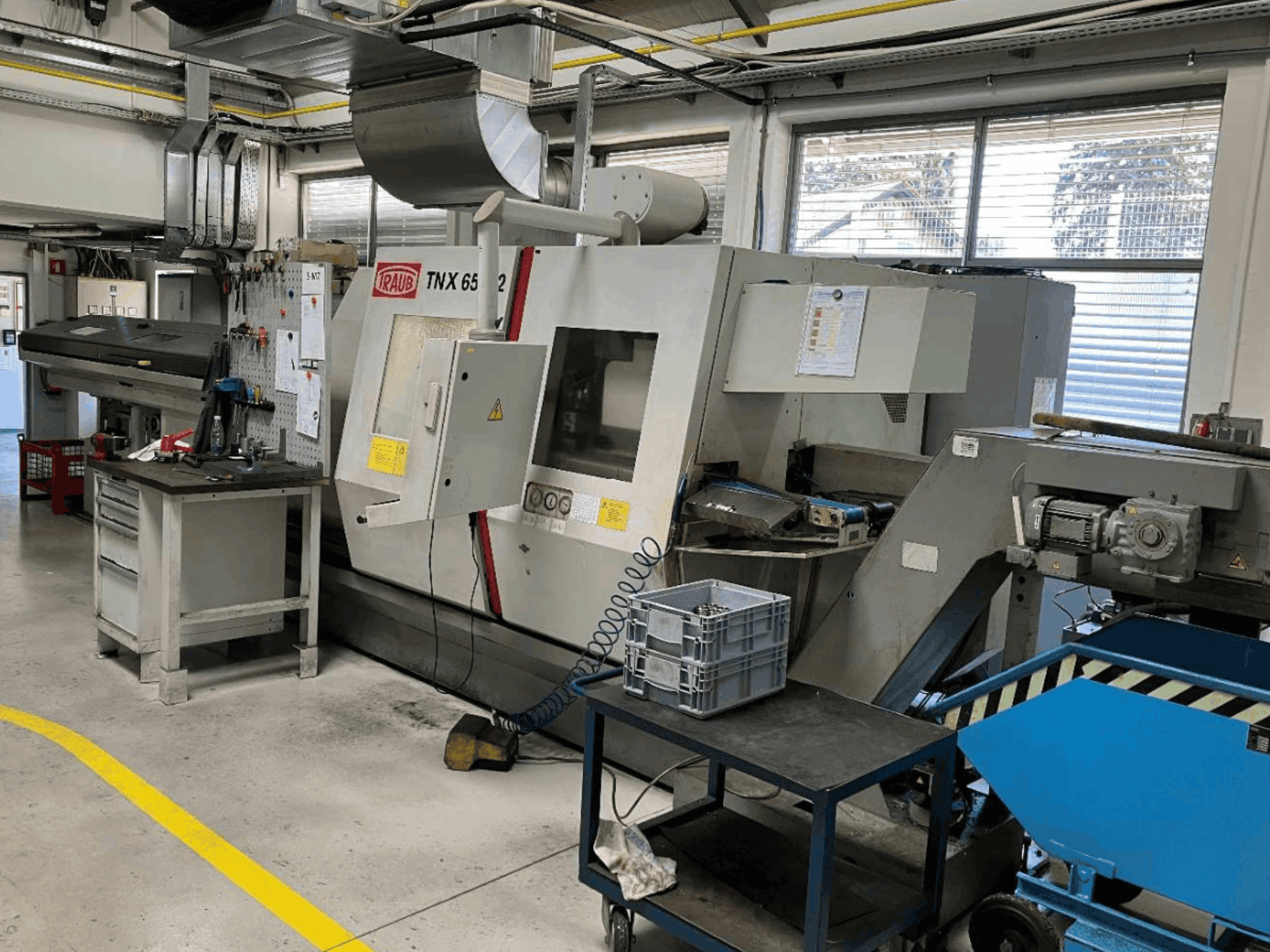

This 11s TRAUB TNX 65/42 was manufactured in 2012. It features a maximum turning diameter of 175 mm and a turning length of 650 mm. The machine is equipped with a powerful main spindle speed of up to 5,000 rpm and a counter spindle speed of up to 7,000 rpm. If you are looking to get high-quality turning and milling capabilities, consider the TRAUB TNX 65/42 turn-mill centre we have for sale. Contact us for further details.

Overview

  • brand: TRAUB
  • year: 2012
  • MODEL: TNX 65/42
  • production hours: 6542
  • application type: Turning
  • Location: Slovenia
  • machine type: Turn-Mill Centre

Technical Information - TRAUB TNX 65/42

Dimensions

  • Machine Weight: 9500 kg

Movement

  • Number of Axes: 11

Technical Specification

  • Counter Spindle: Yes
  • Driven Tools: Yes
  • Spindle Power: 24 kW
  • Spindle Speed: 5000 RPM

Additional Information

  • Working hours: 26,946 h

  • Max. turning diameter: 175 mm

  • Max. turning length: 650 mm

  • Main spindle bar capacity / bore: 65 mm

  • Max. spindle torque: 275 Nm

  • Counter spindle speed: up to 7,000 rpm

  • Counter spindle bar capacity: 42 mm

  • Tool turrets: 3 × 10 positions

  • Rapid traverse X-axis: 30 m/min

  • Rapid traverse Z-axis: 40 m/min

  • Rated power: 83 kW

  • Connected load: 68 kVA

  • Power supply: 400 V, 3~, N, PE, 50 Hz

  • Rated current: 134 A

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
