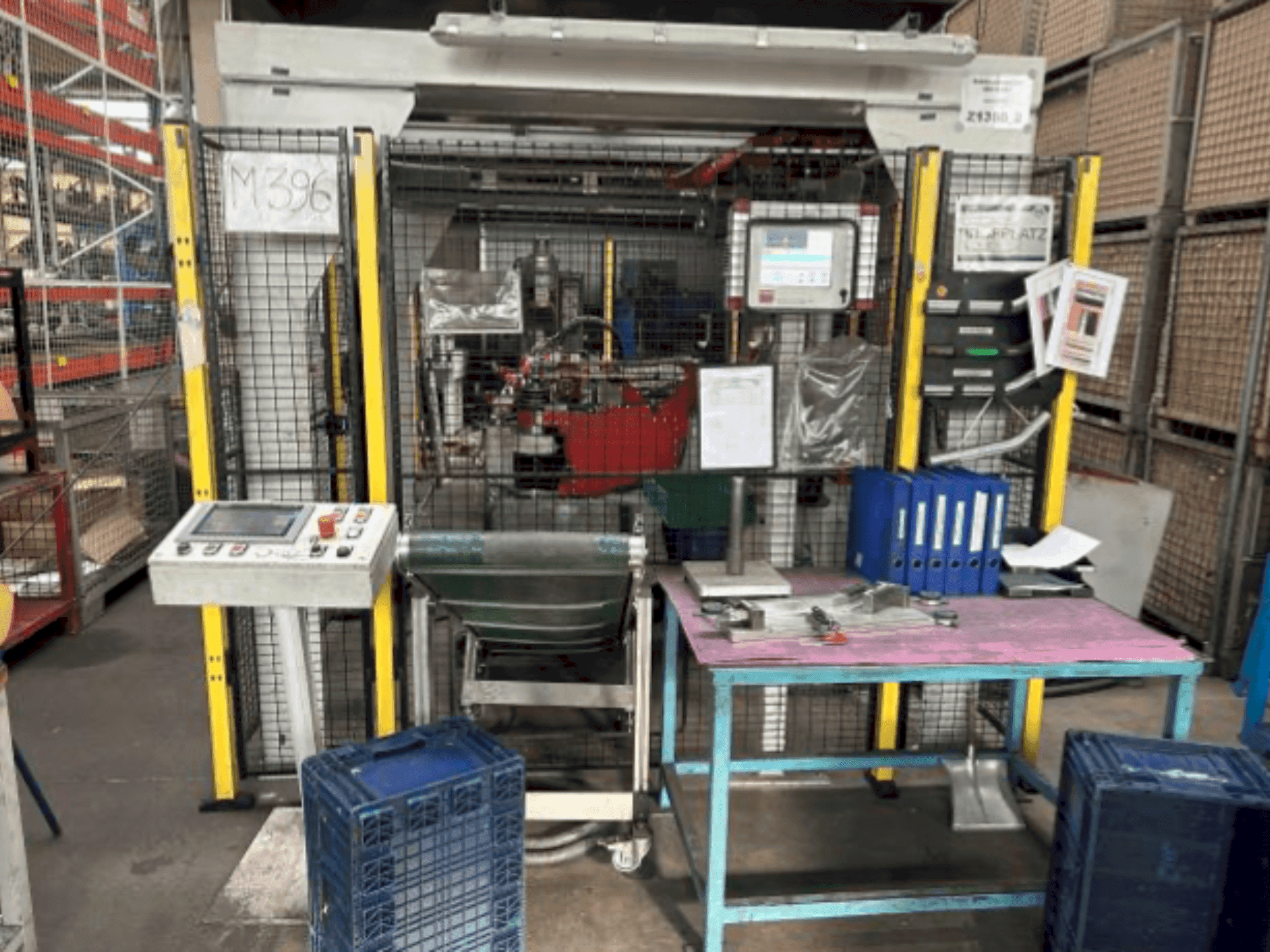

Transfluid - DB 650 ST-SPSDE-BEN-TRA-2017-00001

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Operating voltage: 400 v ac 3n / pe / 50 hz
  • - Control voltage: 24 v dc
  • - Rated current: 40 a
  • - Main fuse: 80 a
  • - Protection class (control): ip 54

Extra information

• - Machine Performance Loading + Handling for Pipe Lengths: 200 - 500 mm Capacity: 100 pieces for pipe-® 45 mm Length Measuring System (optional): Tolerance +/- 0.5 mm Round Steel Pipe: Up to ® 50 x 3.0 mm Round Stainless Steel Pipe: Up to ® 50 x 2.0 mm Square Steel Pipe: Up to 35 x 35 x 2.5 mm Max. Section Modulus: 5.0 cm3 Bending Angle: 180° + 10° Overbend Bending Speed: 36°/sec Repeatability Bending Axis: ‡ 0.1° Tube Insertion Length / Usable Length: 500 mm Radius Range: Max. 125 mm Bending Height: 1050 mm Bending Axis Drive: Electrohydraulic Drive Secondary Axes: Electrohydraulic

Payment Terms

• Payment in advance

• Asset Financing
