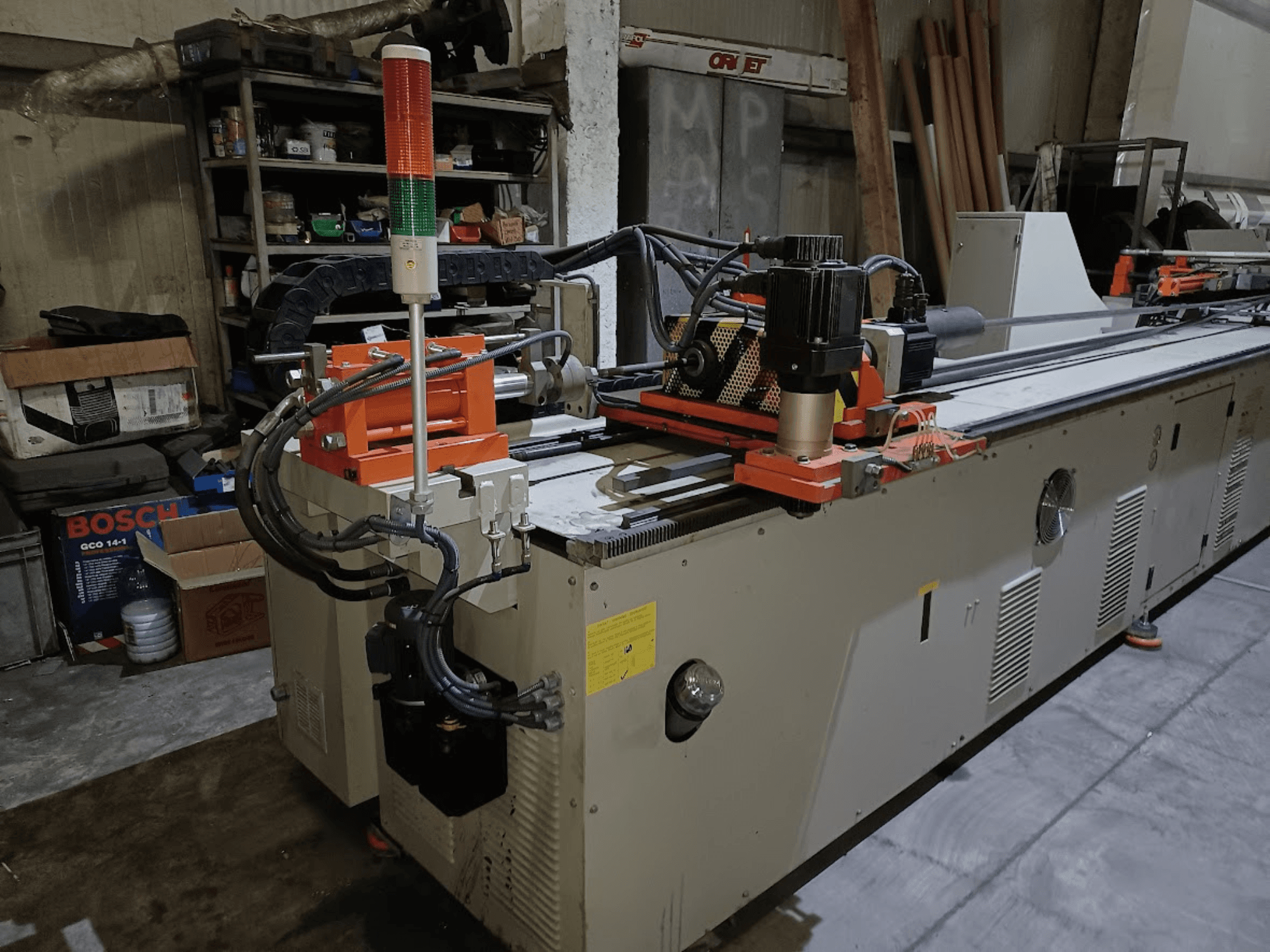

CNC Tube Bending Machine manufactured in 2018. This CANSA CNC 51 R1 features a maximum tube diameter of 51 mm and a maximum wall thickness of 4 mm. It includes a mandrel and part configuration software for enhanced bending capabilities. If you are looking to get high-quality bending capabilities, consider the CANSA CNC 51 R1 machine we have for sale. Contact us for further details.
Overview
- brand: CANSA
- year: 2018
- MODEL: CNC 51 R1
- application type: Bending
- Location: Romania
- machine type: Die Bending Machine
Technical Information - CANSA CNC 51 R1
Dimensions
- Machine Height: 4400 mm
- Machine Length: 6500 mm
- Machine Weight: 3000 kg
- Machine Width: 1850 mm
Additional Information
Bending capacity
Max. tube diameter: 51 mm
Max. wall thickness: 4 mm
Max. bending radius (CLR): 275 mm
Min. bending radius (CLR): 60 mm
Max. bending angle: 190°
Bending speed: 25°/s
Electrical / hydraulic
Total motor power: 18 kW
Hydraulic motor power: 15 kW
Max. hydraulic pressure: 140 bar
Hydraulic oil tank capacity: 150 l
Nominal current: 40 A
Electrical supply: 380/400 V, 50 Hz, 3-phase
Control voltage: 24 V DC
Additional equipment
Mandrel tooling included
Rollers/tooling for Ø25 mm tube
Part/bending configuration software included
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
