TELSONIC TelsoSPlice TS3-6 P3.6 Table

Photo Gallery

TELSONIC - TelsoSPlice TS3-6 P3.6 TableDE-3DP-TEL-2015-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used TELSONIC TelsoSPlice TS3-6 P3.6 Table | Wire welding sytem

Show in original language

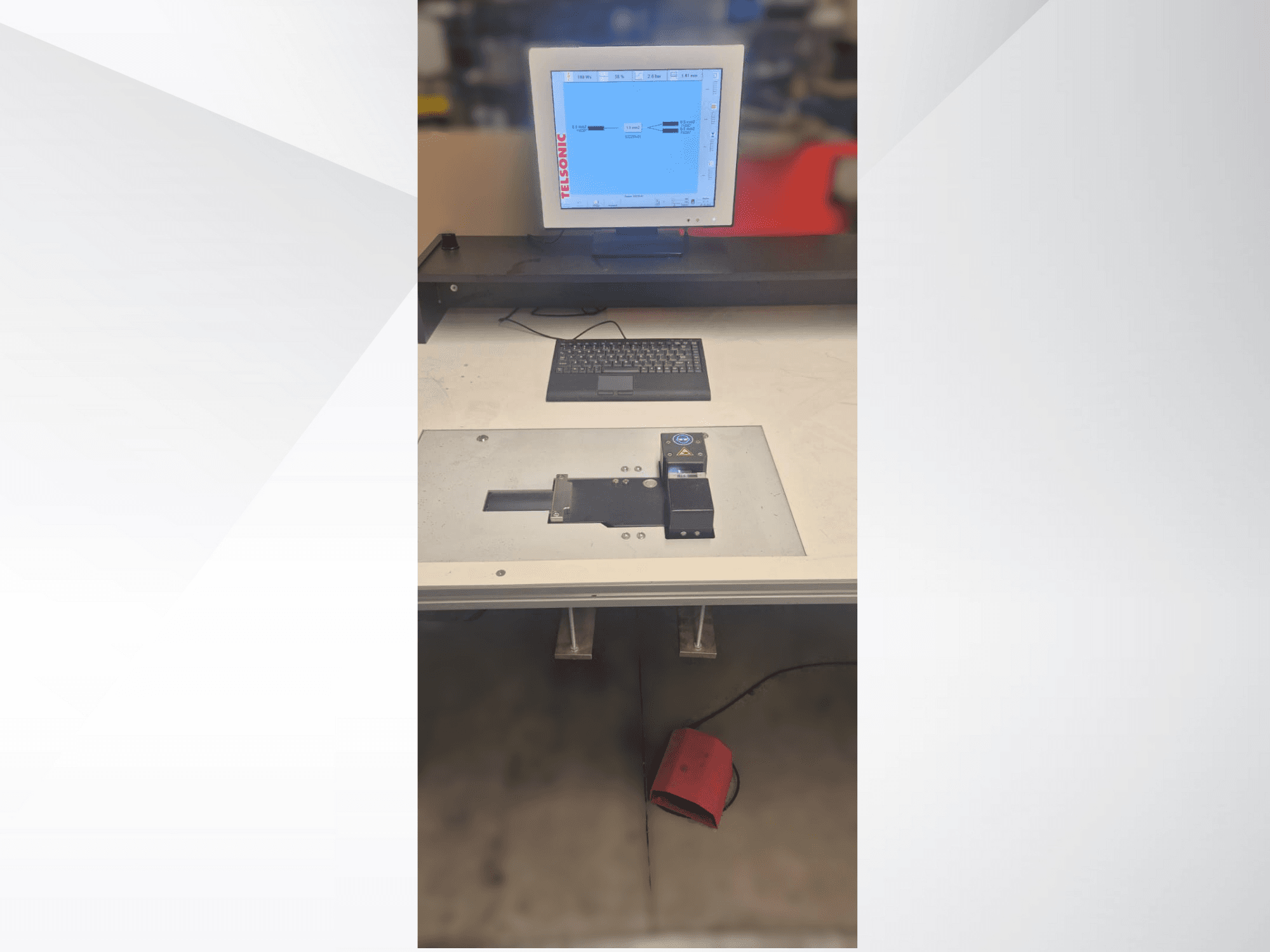

This TELSONIC TelsoSPlice TS3-6 P3.6 wire welding sytem was manufactured in 2015. It features a 15" SVGA touch screen, a pneumatic unit, and a 3.6kW WeldHead. The machine includes a barcode scanner, keyboard, and a spacious 2000 x 1000 mm table. Consider the opportunity to buy this TELSONIC TelsoSPlice TS3-6 P3.6 Table. Contact us for more information about this machine.

Overview

brand: TELSONIC
year: 2015
MODEL: TelsoSPlice TS3-6 P3.6 Table
application type: Other Plastic Processing Machinery
Location: Germany
machine type: Plastic Processing Machine

Additional Information

System: TelsoSplice Plus
Technology: Ultrasonic wire splicing / wire compaction
Application: Ultrasonic welding of wire strands for splice production and compaction
Material Capability: Bare copper wires
Restriction: Wires must not be tinned
Plastic Welding Capability: Not suitable for plastic welding
Total Welding Counter: 1490 welds
Recorded Welds / Compactions: approx. 490
Ultrasonic Frequency: 20 kHz
Ultrasonic Power (Welding Tongs): 3 kW
Generator Power: 3.6 kW
Amplitude Accuracy: Stabilized ±3 %
Wire Cross Section Range: 0.26 mm² – 40 mm²
Cylinder Force at 6 bar: 1750 N
Cylinder Force at 7 bar: 2040 N
Insertion Stroke (Opening): 19 mm / 10.5 mm
Maximum Tool Torque: 20 Nm
Maximum Air Supply Pressure: 10 bar
Maximum Operating Pressure: 7 bar
Compressed Air Quality: ISO 8573-1:2010 [2:3:2]
Pneumatic Connection: Pneumatic hose Ø8 mm
Voltage Supply: 3 × 400 V / 230 V
Power Supply Type: 3LNPE
Frequency: 50 – 60 Hz
Nominal Current: 3.3 A
Maximum Peak Current: 6.0 A eff
Power Factor: cos φ > 0.95
Minimum Line Protection: 3 × 13 A slow-blow
Protection Class: IP20
Control System: SPC Module-4
Operating System: Windows Embedded Standard 7
Touch Panel PC: 15" SVGA Touchscreen
TelsoSplice Software Version: 3.5
TelsoSplice.EXE Version: 3.5.50929
Microsoft Framework Version: 4.0.30319.34209
Ultrasonic Generator: MAG
Generator Output Power: 3.6 kW
Weld Head: TS3-6
Power Cable: 3 × 400 V / 230 V MAG/SPC-4
Power Cable Length: 3 m
Pneumatic Unit: TelsoSplice TS
Adapter / Power Cable: MAG/SPC-4
Rack Housing: 19" 8U
Emergency Stop: TelsoSplice Table E-Stop
Foot Switch: TelsoSplice Foot Switch
Barcode Scanner: Manhattan CCD Long-Range
Keyboard: US Layout
Key Set: TelsoSplice Key Set
Cable Set: TelsoSplice Table / Standing Version
Machine Table: TelsoSplice Table L
Table Size: 2000 × 1000 mm
Complete System Weight (Table Version): approx. 103 kg
Operating Temperature Range: 10 °C – 40 °C
Humidity Range: 20 % – 80 % (non-condensing)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
