TECNOVA - ES130N 37D DEGNL-OTH-TEC-2006-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Plastics Processing Machinery
- ➤ Used TECNOVA ES130N 37D DEG For Sale | gindumac.com

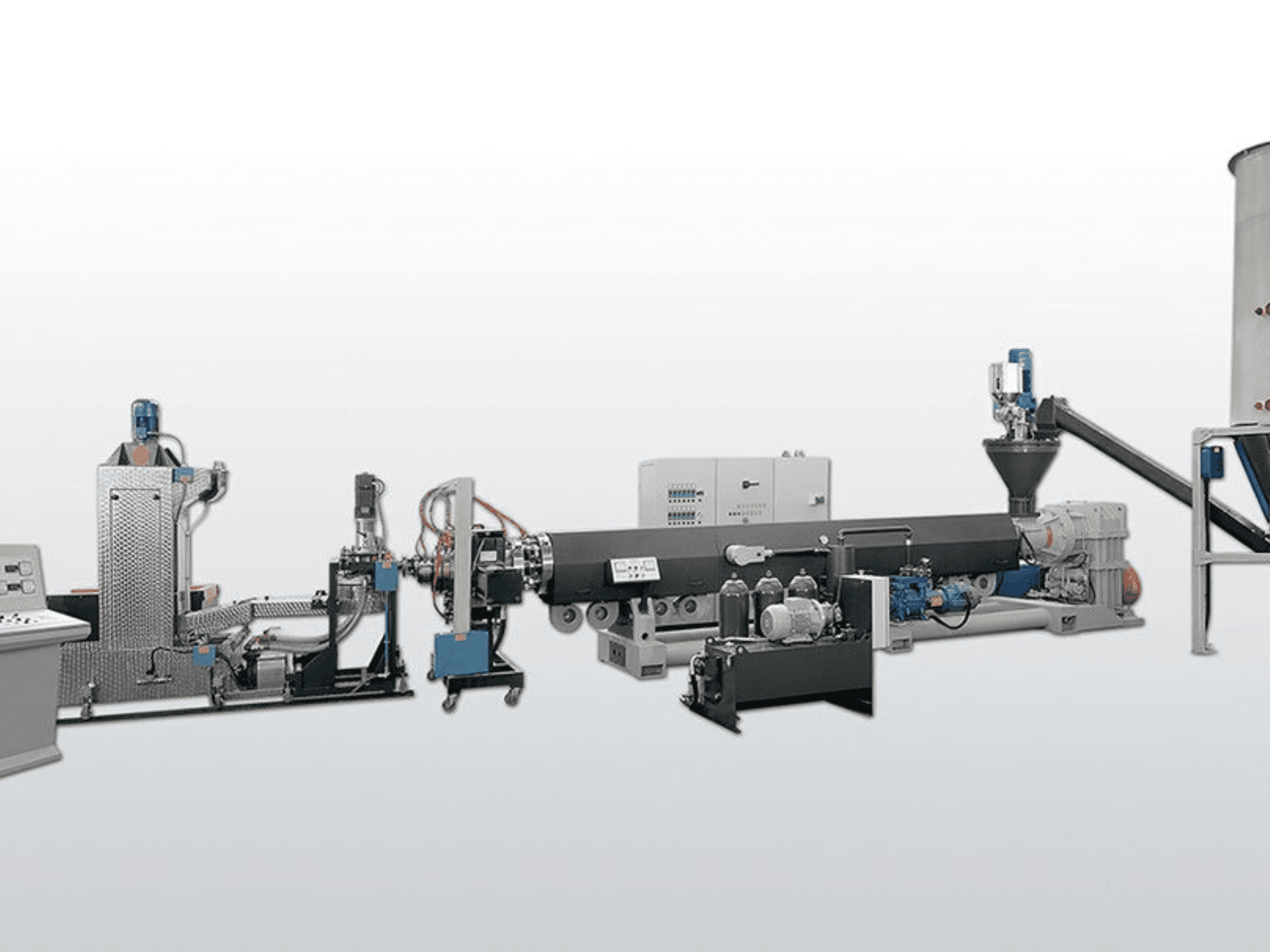

Single-screw extruder manufactured in 2005. This TECNOVA ES130/37D DEG features a screw diameter of Ø 130 mm and an L/D ratio of 37:1. It includes a powerful main motor rated at 246 HP and a degassing system for enhanced processing. The barrel temperature control offers individually controlled heating and cooling zones, ensuring optimal performance. If you are looking to get high-quality plastic processing capabilities, consider the TECNOVA ES130/37D DEG machine we have for sale. Contact us for further details.
Overview
- brand: TECNOVA
- year: 2006
- MODEL: ES130N 37D DEG
- application type: Other Plastic Processing Machinery
- Location: Netherlands
- machine type: Plastic Processing Machine
Technical Information - TECNOVA ES130N 37D DEG
Technical Specification
- Screw Diameter: 130 mm
Additional Information
L/D ratio: 37:1*
Main motor power: 246 HP (approx. 181 kW)
Degassing system: Yes
Barrel temperature control: Individually controlled heating and cooling zones
Barrel cooling: Forced-air cooling with fans
Barrel heating capacity: approx. 110.6 kW total
Electrical supply: 380 V / 50 Hz / 3-phase
Main electrical rating: 630 A
Control voltage: 110 V
Electrical cabinet protection: IP44
Extruder length: approx. 4,635 mm
Additional equipment
Vacuum pump (included)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
