- ➤ Used Stiefelmayer Laserhärtenalage | Machine Tool
This 5-axis Stiefelmayer Laserhärtenalage was manufactured in 2009. It features a Siemens SINUMERIK 810D / 840D control system, ensuring advanced operation. With a weight of 11,100 kg, this machine is built for durability. If you are looking to get high-quality laser hardening capabilities, consider the Stiefelmayer Laserhärtenalage machine we have for sale. Contact us for further details.
Overview
- brand: Stiefelmayer
- year: 2009
- MODEL: Laserhärtenalage
- application type: Other Machine Tools
- Location: Switzerland
- machine type: Machine Tool
- control unit brand: SIEMENS
Technical Information - Stiefelmayer Laserhärtenalage
Control Unit
- Control Brand: SIEMENS
- Control Model: SINUMERIK 810D / 840D (HMI Advanced)
Dimensions
- Machine Weight: 11100 kg
Movement
- Number of Axes: 5
- X-axis Travel: 4021 mm
- Y-axis Travel: 1971 mm
- Z-axis Travel: 961 mm
Additional Information

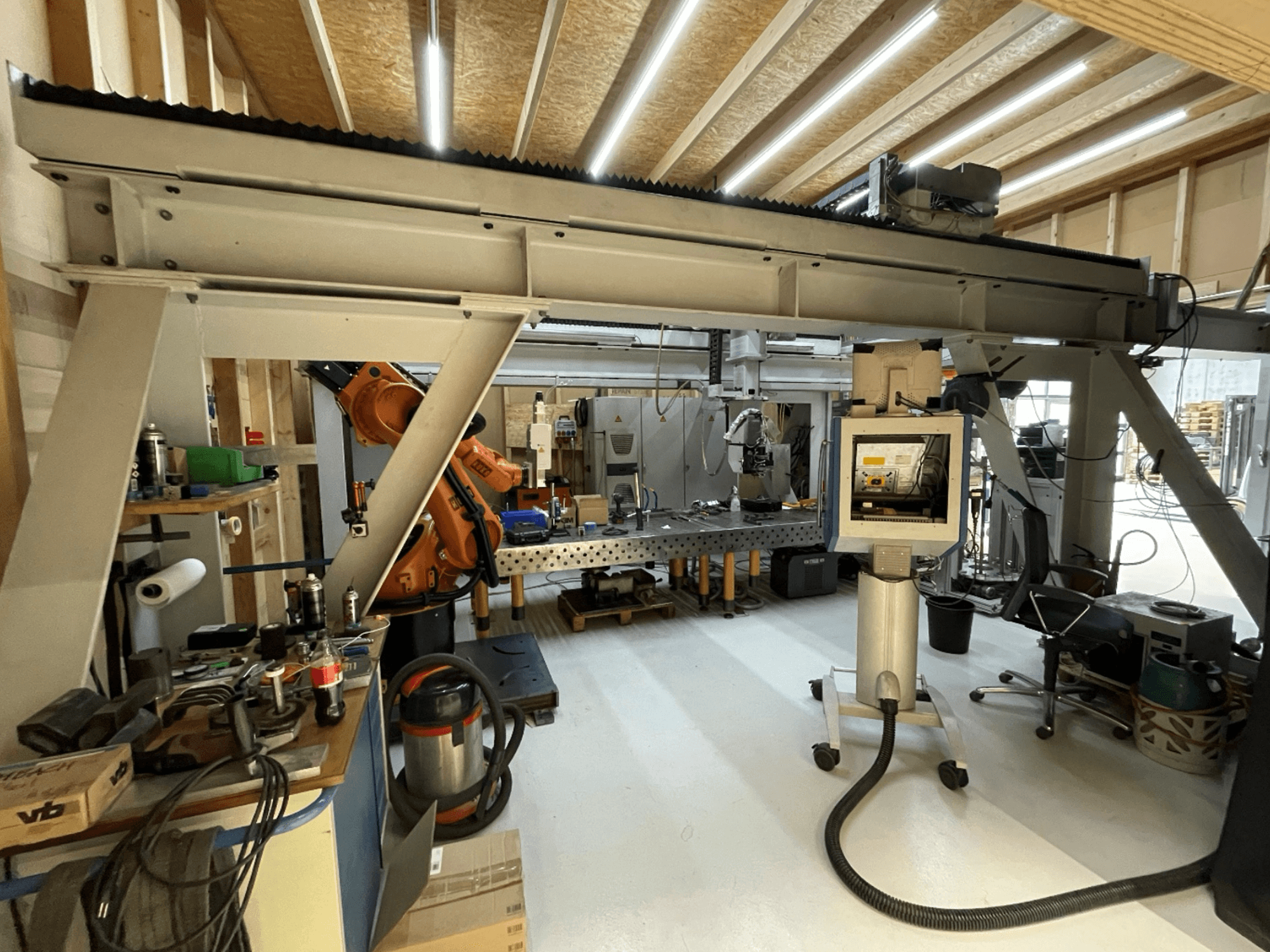

System as a mechanical gantry system without the laser source and without the process optics
Electrical: 400 V, 150 A, 50/60 Hz
3 linear axes X/Y/Z and 2 rotary axes B/C on the machining head
Dimensions: The measured dimensions of the gantry system are approximately 7.7m x 5.5m x 2.5m This does not include the control cabinet and operator panel
Travel distances: The effective travel distances are 4021mm x 1971mm x 961mm
Handling weight: Estimated between 20kg – 30kg
Suitable for laser hardening welding cladding and cutting with appropriate laser retrofit
Siemens SINUMERIK 840D control included NC software and PLC logic for full machine operation
Complete steel gantry frame included with drives cabling control cabinet and operator panel
Electrical schematics fully revised by Haas
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
