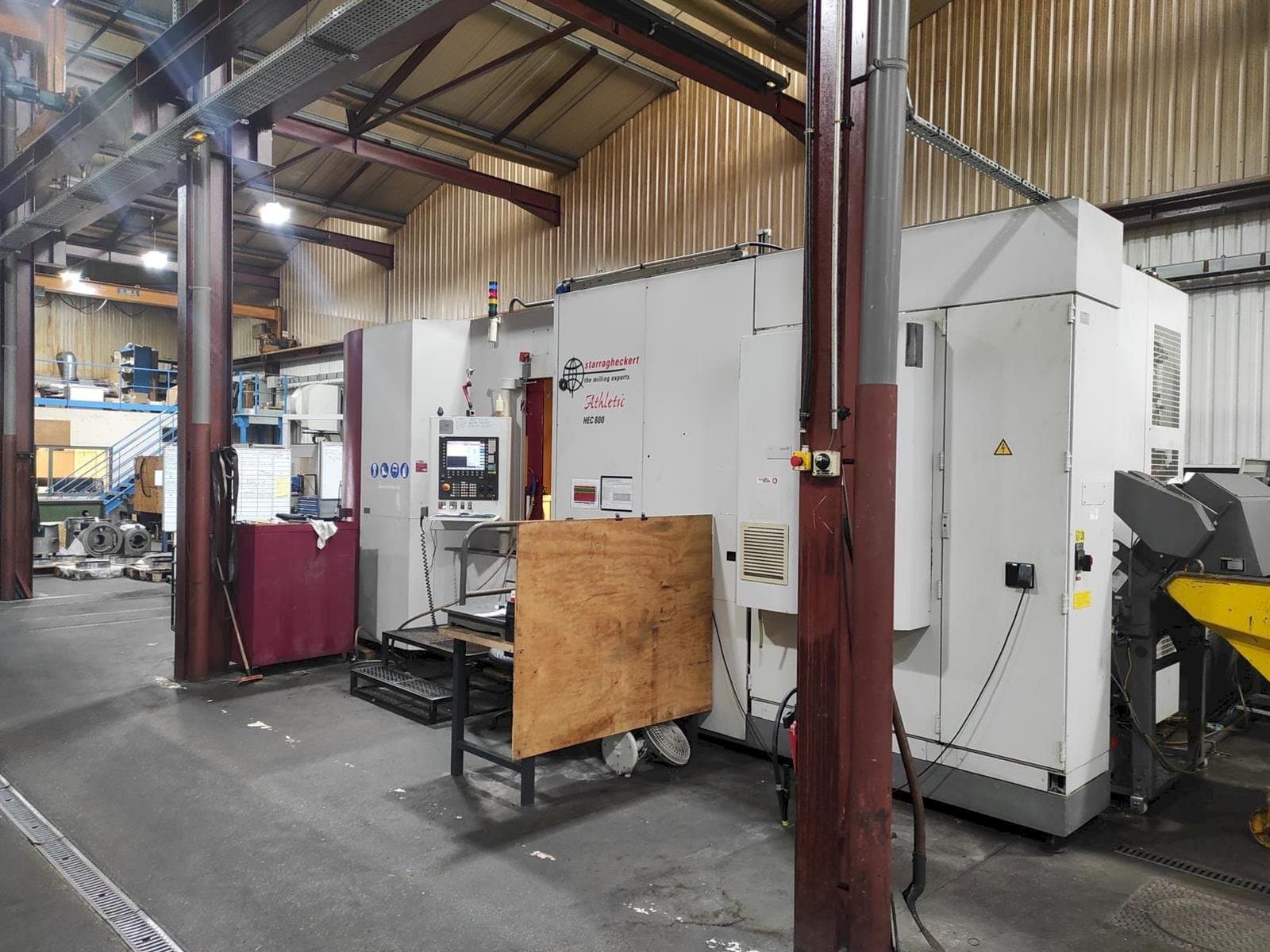

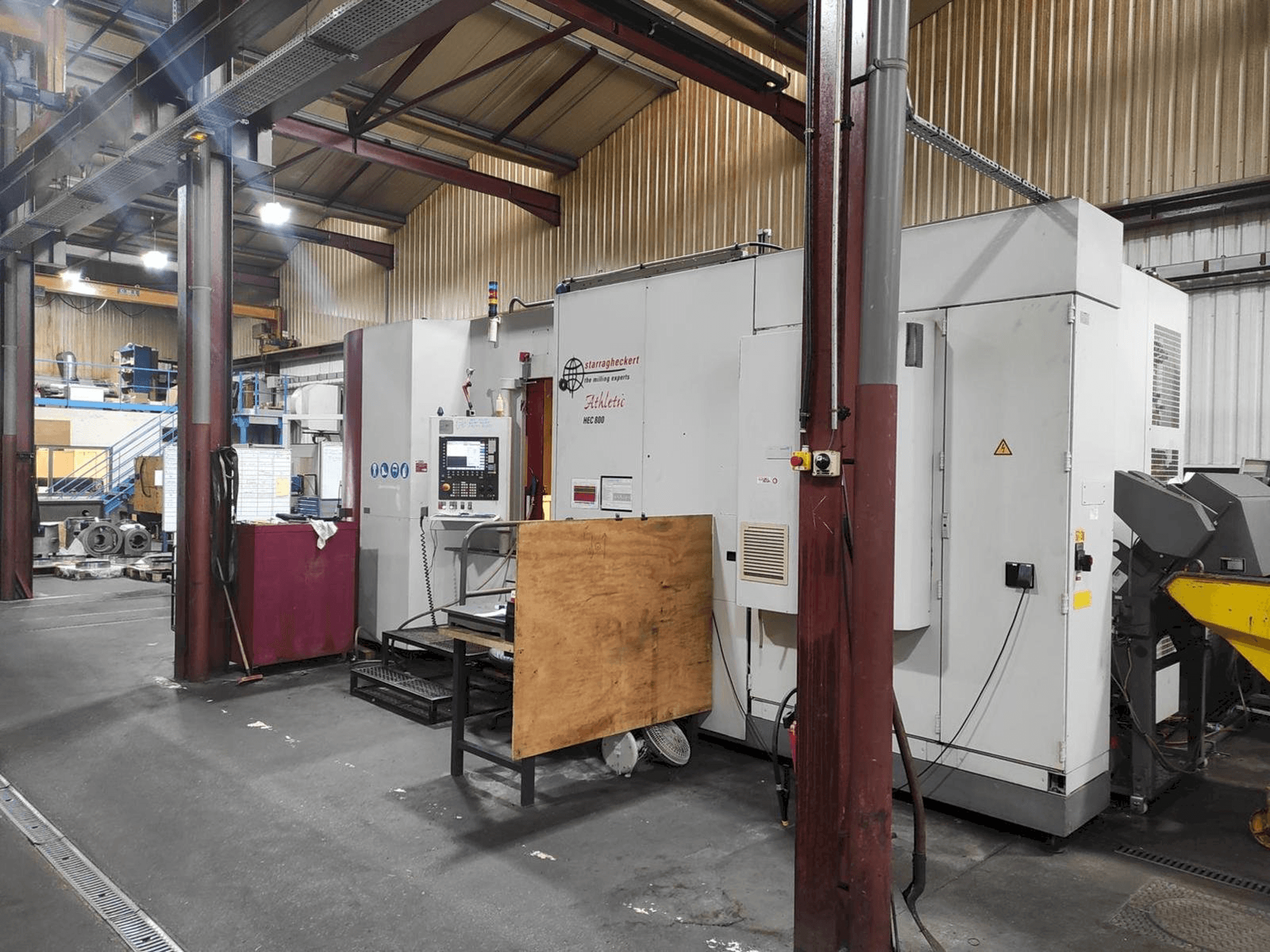

Front view of Starrag HEC 800 - 5 AXES machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Starrag HEC 800 - 5 AXES

Photo Gallery

Starrag - HEC 800 - 5 AXESFR-MIL-STA-2006-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Starrag HEC 800 - 5 AXES Horizontal Machining Center

Show in original language

This Starrag HEC 800 - 5 AXES Horizontal Machining Center was built in 2006 in Germany. It is operated through a SIEMENS 840 D control unit. This 5 axis machine works with a spindle speed up to 6000 rpm and a spindle power of 50 kW.

Overview

brand: Starrag
year: 2006
MODEL: HEC 800 - 5 AXES
application type: Milling
Location: France
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - Starrag HEC 800 - 5 AXES

General Data

Measurements width: 8100 mm
Measurements depth: 5350 mm
Measurements height: 4150 mm
Machine weight: 25000 kg

Control Unit

Model: 840D
Brand: SIEMENS

Main drive

Spindle speed range: 6000 1/MIN
Spindle motor power: 50 kW

Movement

X-AXIS Movement: 1450 mm
X-AXIS Rapid traverse: 65 m/min
Y-AXIS Movement: 1100 mm
Y-AXIS Rapid traverse: 65 m/min
Z-AXIS Movement: 1300 mm
Z-AXIS Rapid traverse: 65 m/min

Tools

Type of tool holder: HSK-A-100

Media

Power consumption: 400 V
Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment

- Remote electronic handle
- Rigid tapping
- Watering tray with high pressure pump: 80 bars
- Through-spindle coolant with paper filtration, coolant cooling unit, hand shower, cabin wash
- Tool probe: Renishaw
- Tool breakage control
- Electric transformer

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Speed range: 20-1028/1028-6000 rpm linear axes
- - Rotary axis b: h/v head travel: 180 [°] indexing precision: 180 [°] rotary axis c:
- - Table travel: 360 [°] indexing accuracy: 0. 001 [°] feed rate fast: 60 [rpm]
- - Tool changer tool changer type: loader arm tool changer capacity tool magazine: 180
- - Tool change time: 5. 5 sec
- - Pallet changer type of pallet changer: rotopalette
- - Pallet change time: 18 [sec] pallet dimensions: 800 x 1000 mm
- - Number of pallets: 2 admissible weight on pallet: 2000 kg
- - Max part diameter: 1400 mm max part height: 1400 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
