➤ Used SPINNER VC 1150 For Sale | gindumac.com

Show in original language

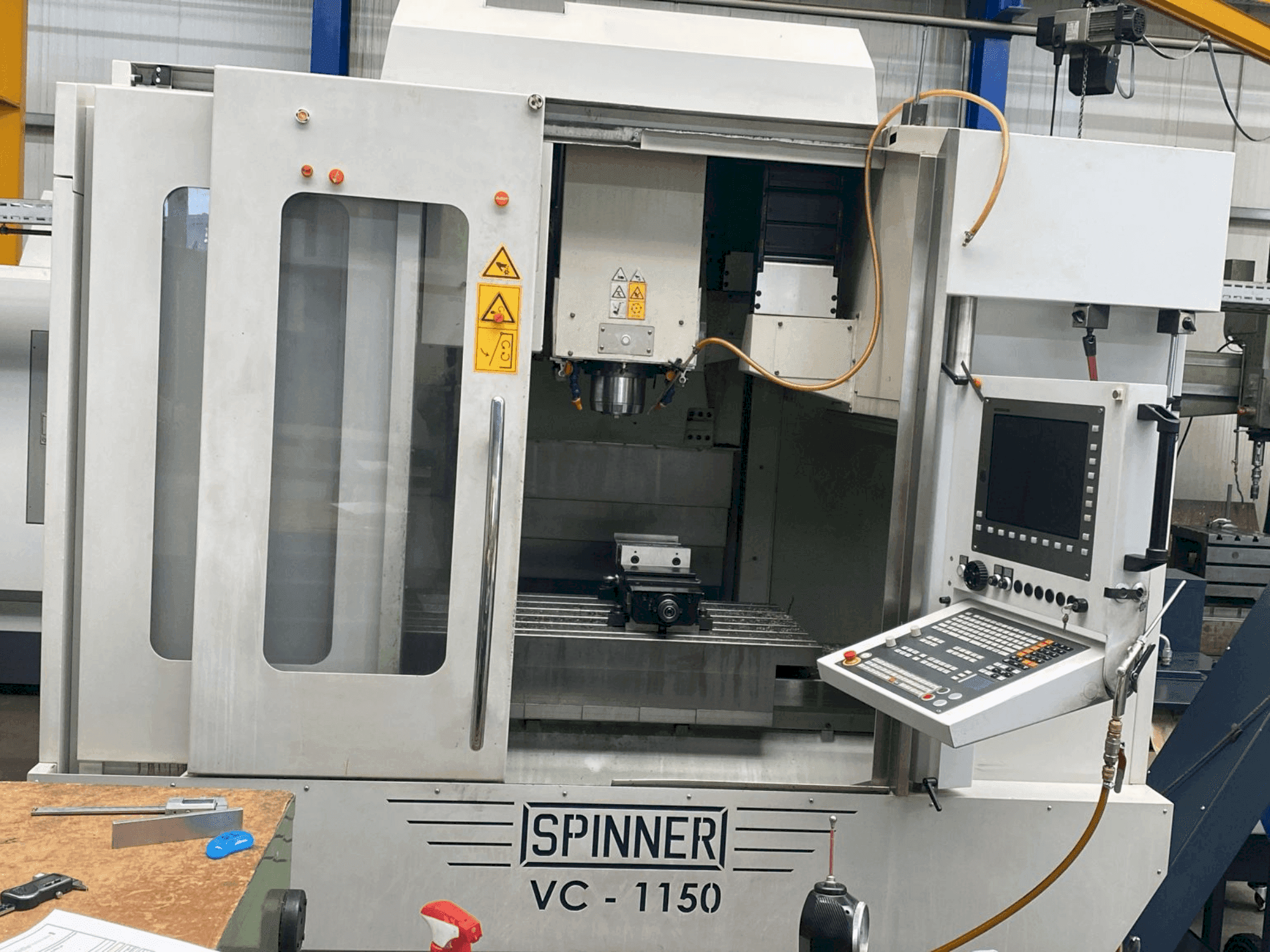

This 3-axis SPINNER VC 1150 was manufactured in 2015, featuring a large working area with X, Y, Z axes of 1150 mm, 620 mm, and 600 mm respectively. The machining table supports loads between 750 to 1500 kg and includes a chip conveyer for efficient chip management. If you are looking to get high-quality milling capabilities, consider the SPINNER VC 1150 machine we have for sale. Contact us for more information.

Overview

brand: SPINNER
year: 2015
MODEL: VC 1150
production hours: 14018
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - SPINNER VC 1150

Control Unit

Brand: HEIDENHAIN
Model: TNC 620

Main drive

Number of axis: 3

Movement

X-AXIS Movement: 1150 mm
Y-AXIS Movement: 620 mm
Z-AXIS Movement: 600 mm

Table

Number of tslots: 6
Table load: 750 - 1500 kg

Additional Information

Additional equipment

With Chip Conveyor

Machine Benefits

Technical Machine Benefits

Table dimensions: 1400 x 620 mm
T slots: 6x 18h7
Min. Distance spindle nose - table: 120 mm
Max. Distance spindle nose - table: 720 mm

Extra Information

Heidenhain TNC620 control and 15" color screen Milling spindle up to 10,000 rpm T: Nmax=200Nm; Pmax=29KW Tool cone size 40 according to DIN 69871-A clamping bolts according to DIN 69872-A Blow-out device for spindle taper High-speed automatic tool changer as double-arm changer for 32 tools Linear guide in all three axes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
