- ➤ Used SPINNER TC400 For Sale | gindumac.com

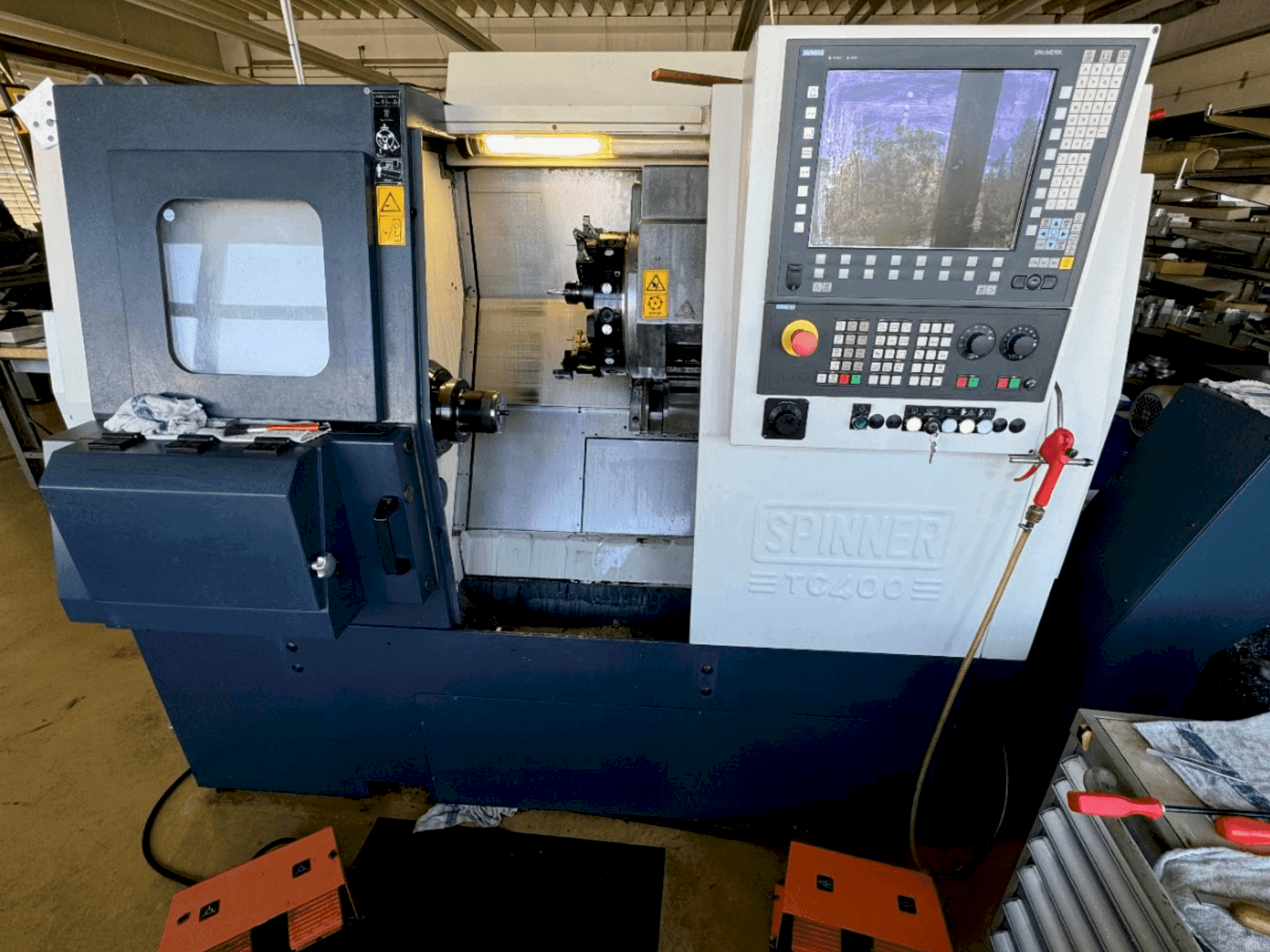

This 3-axis SPINNER TC400 was manufactured in 2016. It features a Siemens 840D control system, digital AC drive motors, and a main spindle capable of 6,000 rpm with a 42mm capacity. The machine includes a C-axis, 12 driven tool stations, and a chip conveyor. Ideal for working with materials like plastics, aluminum, and stainless steel. A great opportunity to buy this SPINNER TC400 universal machining centre. Contact us for further details regarding this universal machining centre.
Overview
- brand: SPINNER
- year: 2016
- MODEL: TC400
- production hours: 11049
- application type: Turning
- Location: Germany
- machine type: Universal Machining Centre
- availability: Immediately
- control unit brand: Siemens
Technical Information - SPINNER TC400
Control Unit
- Brand: Siemens
- Model: 840D- Solutions Line
Main drive
- Number of spindles: 1
- Spindle speed range: 6000 rpm 1/MIN
- Spindle motor power: 10 kW
- Number of axis: 3
Movement
- X-AXIS Movement: 200 mm
- Z-AXIS Movement: 515 mm
Media
- Chip conveyor: Yes
- Internal cooling: Yes
Additional Information
- Technical Machine Benefits:
- - Drive motors for x/z and spindle in digital ac technology
- - Glass scale in x-axis
- - Turning spindle as integrated motor spindle with water cooling
- - C-axis for spindle incl.
- - Transmit software option
- - Hydraulic hollow clamping cylinder
- - Long collet chuck device
- - Plastics, aluminium, stainless steel, brass, nickel silver
- - Scope of delivery: - tailstock mk4 - toolsetter - tool holder - 4 driven tools - collets Ø 3 - Ø 42 - chip conveyor
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
