Sodick AG 60L

Photo Gallery

Sodick - AG 60LIT-EDM-SOD-2013-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

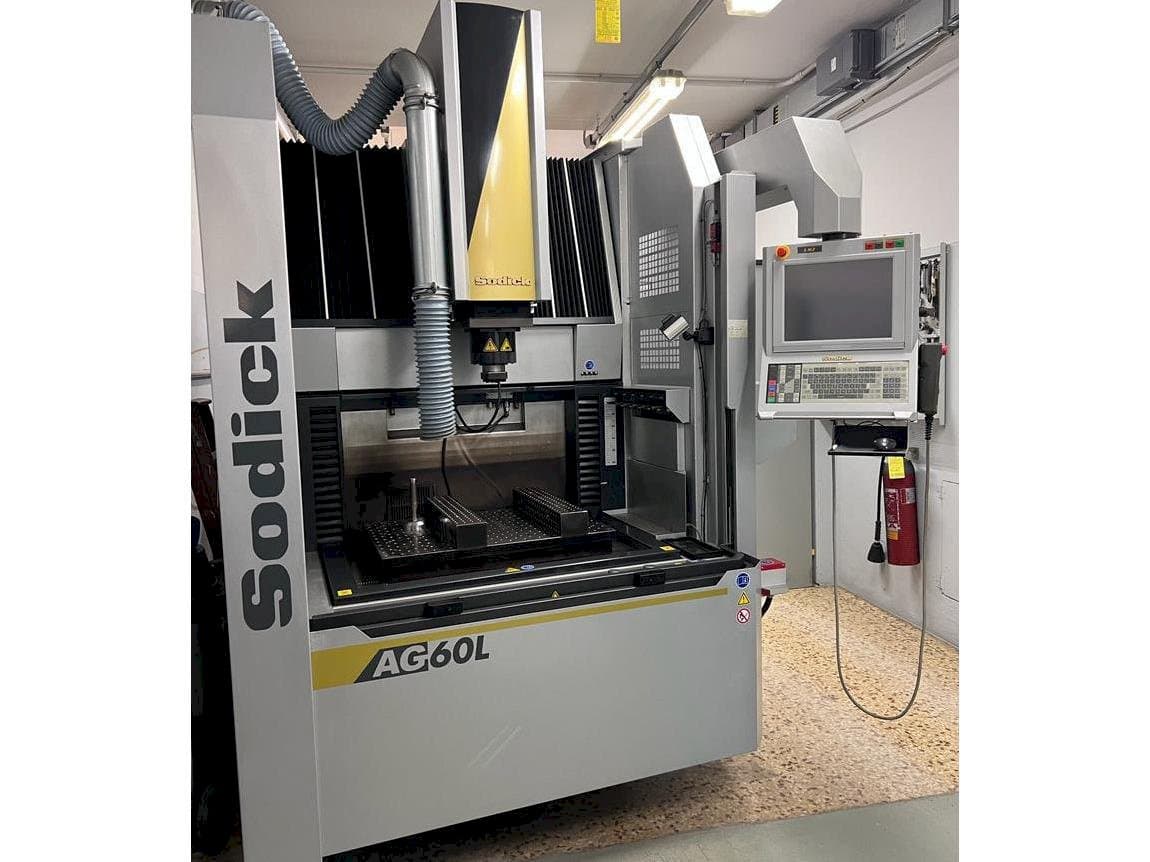

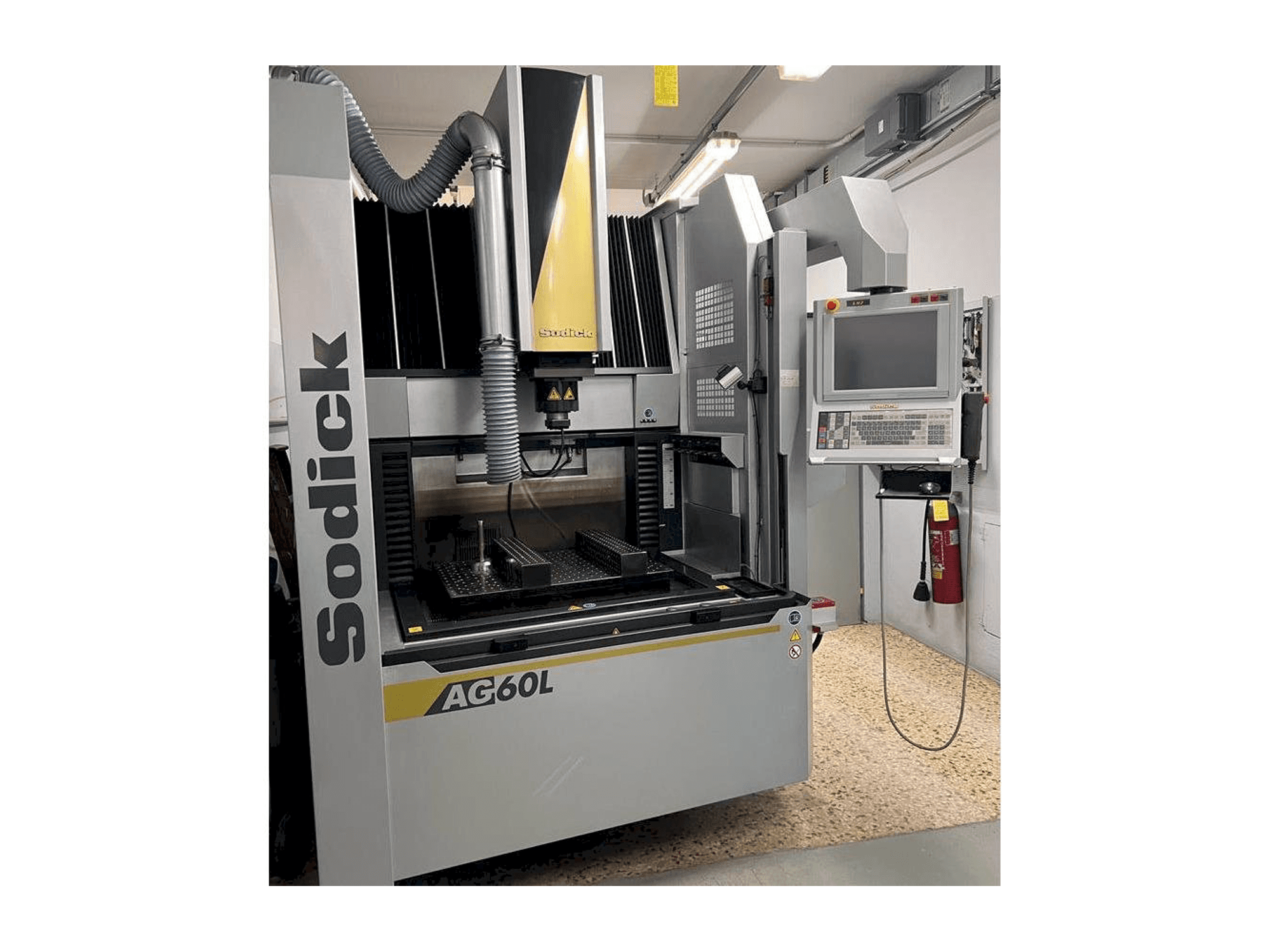

Sodick AG 60L Erosion machine

Show in original language

This Sodick AG 60L Erosion machine was manufactured in the year 2013 and has 11000 hours. It is equipped with a Sodick LN2 control unit. The machine has a distance between tabletop and electrode holder of 200 - 570 mm and an Electrode Max weight of 50 kg.

Overview

brand: Sodick
year: 2013
MODEL: AG 60L
production hours: 11000
application type: EDM
Location: Italy
machine type: Wire EDM Machine
control unit brand: SODICK

Technical Information - Sodick AG 60L

General Data

Measurements width: 1852 mm
Measurements depth: 2825 mm
Measurements height: 2570 mm
Machine weight: 5350 kg

Control Unit

Model: LN2
Brand: SODICK

Movement

X-AXIS Movement: 600 mm
Y-AXIS Movement: 420 mm
Z-AXIS Movement: 370 mm

Additional Information

Machine Benefits

Qualitative Machine Benefits

Electrode length: 200 mm ,max electrode weight 3 kg ,atc 3 r 6
Positions axis r 2000 rpm

Technical Machine Benefits

Workpiece holder table usable surface: 70x550 mm.
Ground height :850 mm
Permitted load :1500 kg
Work tank internal dimensions: 950x740x450
Containment capacity l. 330 dielectric level: 150 - 400 mm
Dielectric external tank
Total dielectric required: 560 l
Electrode max weight 50 kg
Distance between table top and electrode holder 200 - 570 mm
Shuttle electrode change (linear) max dimensions:75x75 mm max

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
