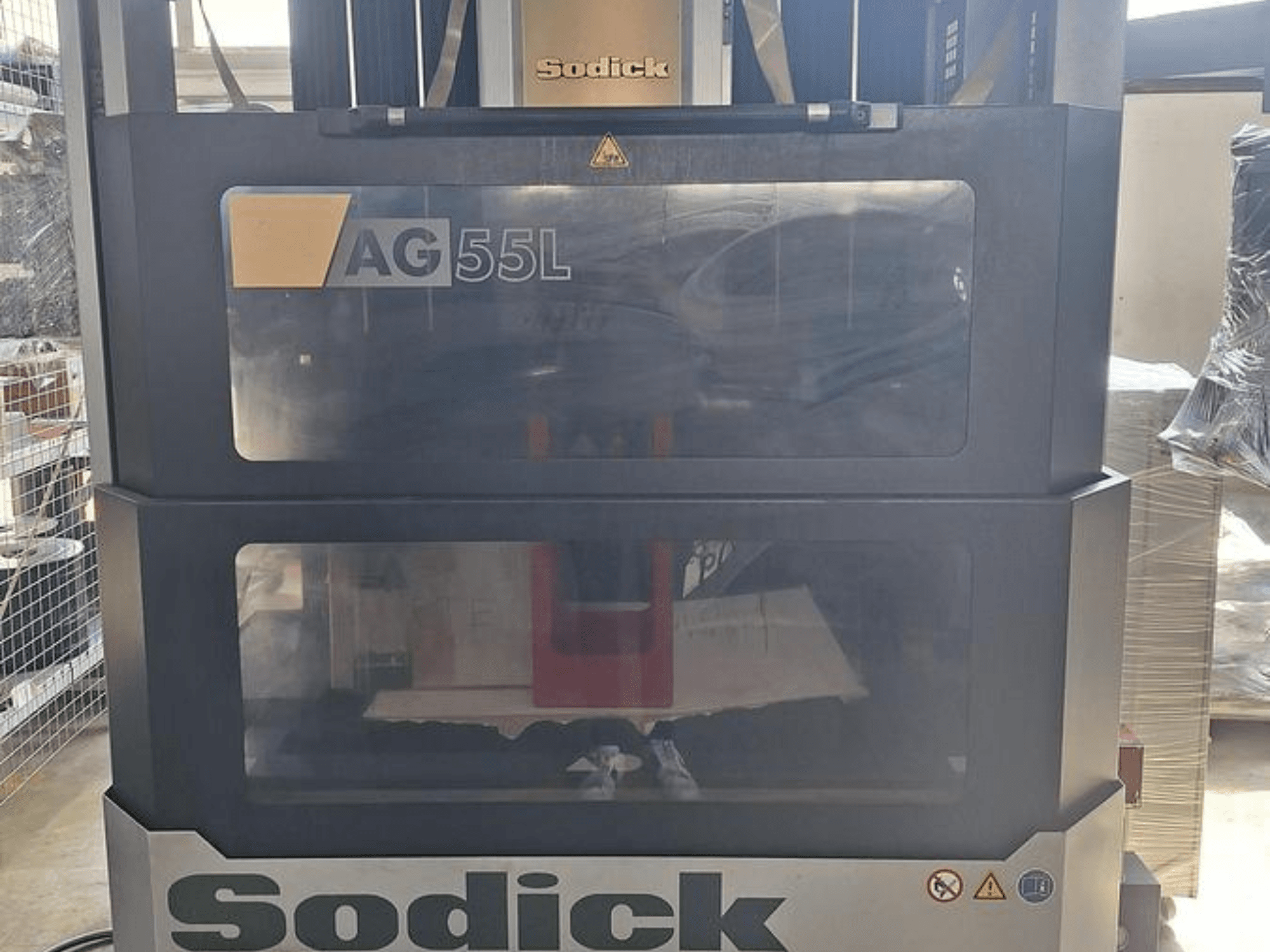

This 3-axis Sodick AG 55 L die-sinking EDM machine was manufactured in 2008. It features a work table size of 750 x 550 mm and a maximum workpiece weight capacity of 1000 kg. The machine offers an X-axis travel of 550 mm, Y-axis travel of 400 mm, and Z-axis travel of 350 mm. If you are looking to get high-quality die-sinking capabilities, consider the Sodick AG 55 L machine we have for sale. Contact us for further details.
Overview
- brand: Sodick
- year: 2008
- MODEL: AG 55 L
- application type: EDM
- Location: Italy
- machine type: Die-Sinking EDM Machine
Technical Information - Sodick AG 55 L
Dimensions
- Machine Height: 2720 mm
- Machine Length: 2070 mm
- Machine Weight: 6840 kg
- Machine Width: 2630 mm
Movement
- Number of Axes: 3
- X-axis Travel: 550 mm
- Y-axis Travel: 400 mm
- Z-axis Travel: 350 mm
Additional Information
Work table: 750 x 550 mm
Internal tank dimensions: 950 x 725 x 410 mm
Fluid level (min–max): 70–350 mm
Work tank capacity: 248 L
Max workpiece weight: 1000 kg
Spindle to table distance: 280–630 mm
Spindle to table distance: 263–613 mm
Installation footprint: 2070 x 2630 mm
Tank dimensions: 1180 x 1250 x 1035 mm
Full tank weight: 170 kg
Tank capacity: 475 L
Cooling unit dimensions: 520 x 520 x 900 mm
Cooling unit weight: 50 kg
Cooling tank capacity: 19 L
Included feature: Linear motors
Additional equipment
Erowa C-axis
32-position Erowa ATC
UPS
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
