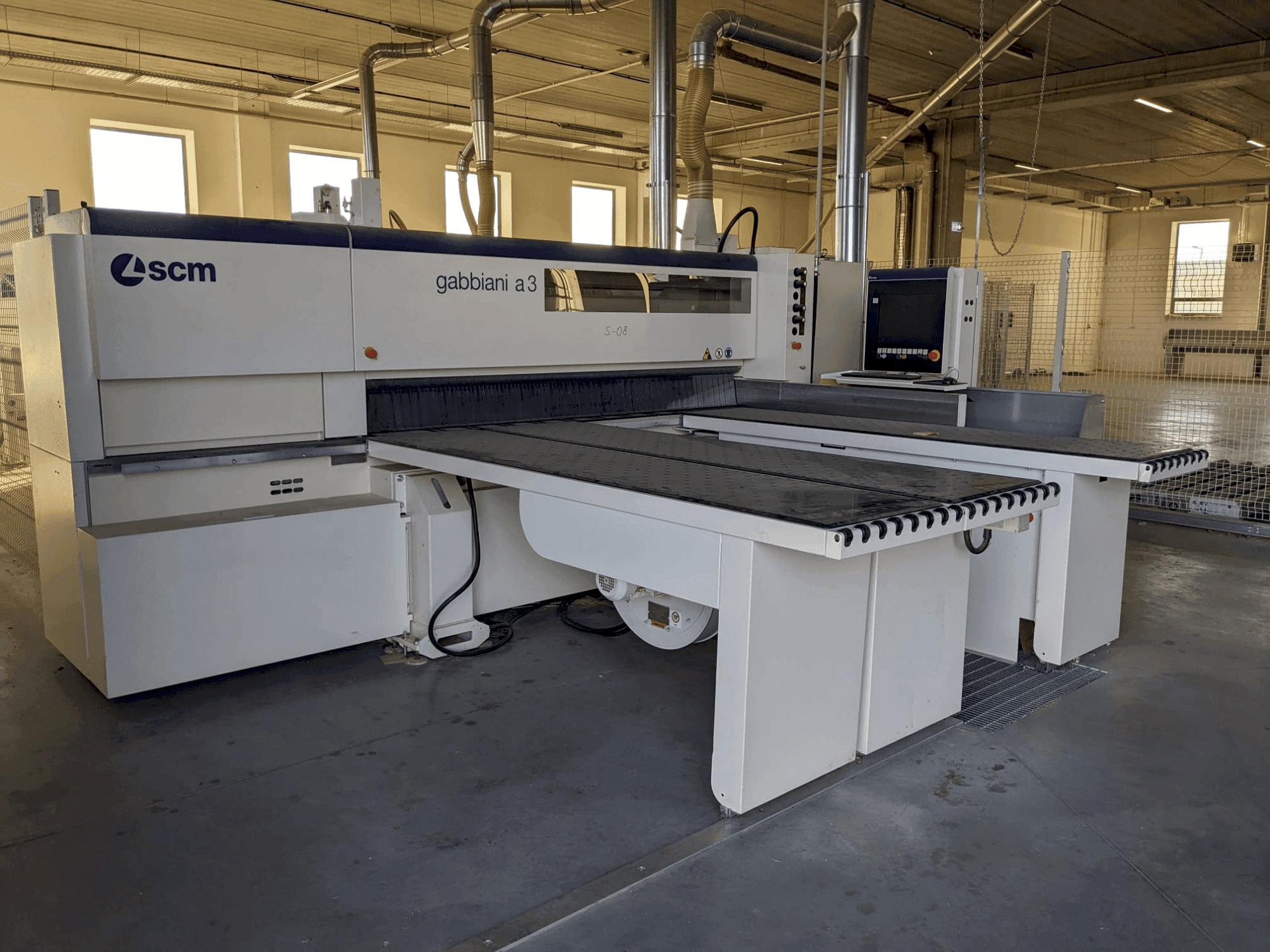

SCM - Gabbiani A3 130PL-SAW-SCM-2019-00001

Additional Equipment

• - Shredder for waste
• - Tiltable side pressure rollers in the cross-cutting area
• - Vibration conveyor for waste after longitudinal cutting
• - Tiltable grippers in the longitudinal cutting area
• - FLEXCUT 02 with 2 movable sets and 3 double grippers in each set
• - Label editor with barcode printer capability
• - Online diagnosis

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Easyfix quick tool change
  • - Precise and easy handling
  • - Extremely secure fastening (20-24 kn)
  • - Tested and safe system

Extra information

• - Movement Saw carriage speed (longitudinal/cross-cutting): 0-170 m/min Saw carriage return speed: 170 m/min Workpiece Min./max. length of panels: 1600 / 3200 mm Min./max. panel width: 1200 / 2440 mm Min./max. belt width: 100 / 2200 mm Min. panel thickness: 10 mm Min. width of edging: 15 mm Minimum panel dimensions: 150 x 100 mm Table Max. panel dimensions: 3200 x 2440 mm Loading height: 600 mm Lifting/lowering speed: 0.75 m/min Motor power: 0.75 kW Tools EASYFIX quick mechanical fastening of the saws Mount Position (Assembly) Machine in left-hand version Media Electrical power: 400 V, 50 Hz Installed power: 35 kW Compressed air: 1200 Nl/min, 7 bar Extraction requirements: Exhaust air speed 28 m/s, total exhaust air volume 11600 m3/h
