SCHÜCO DC 500

Photo Gallery

SCHÜCO - DC 500DE-MIL-SCH-2009-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used SCHÜCO DC 500 For Sale | gindumac.com

Show in original language

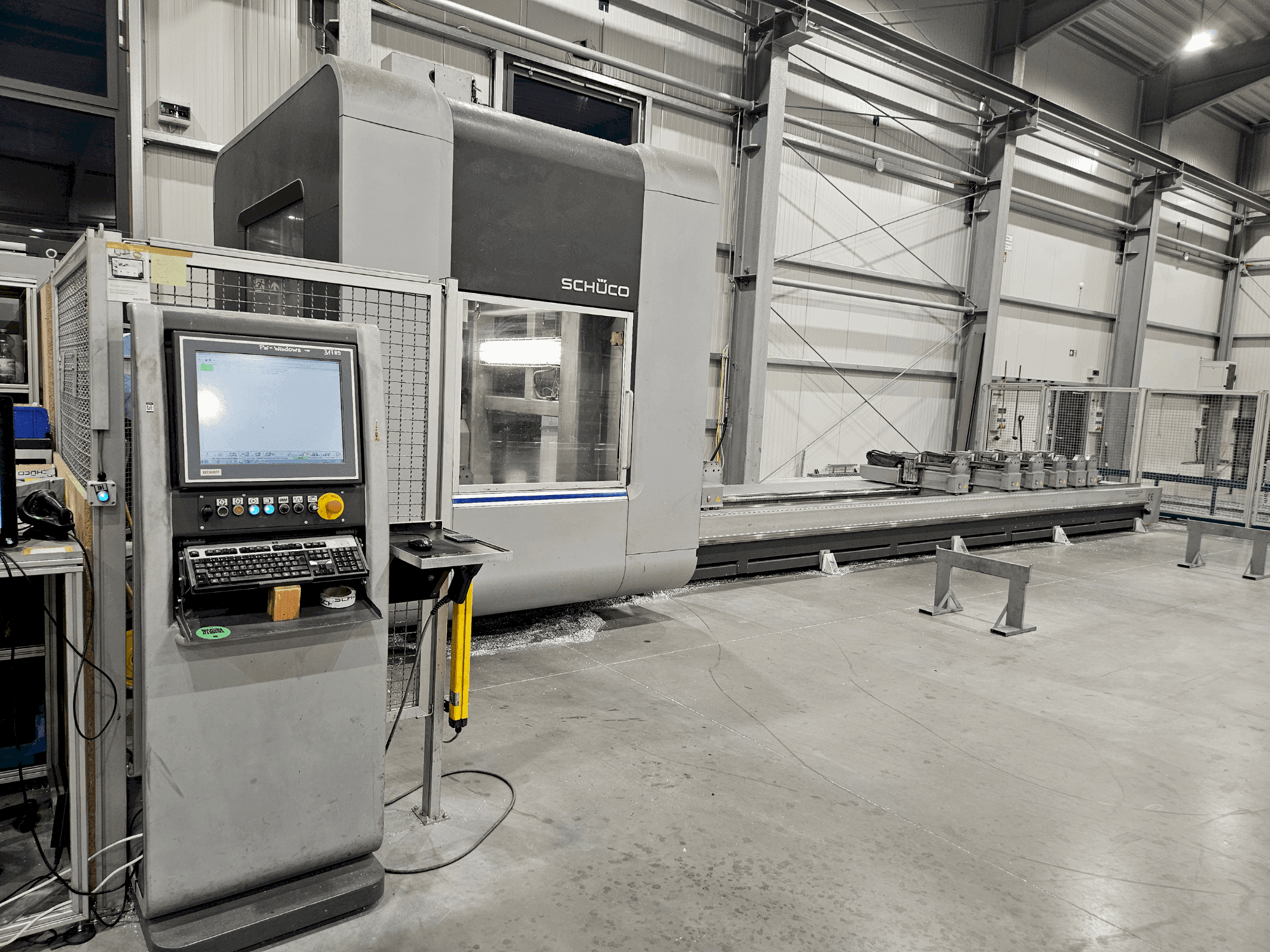

This 5-axis vertical machining centre manufactured in 2009 offers robust capabilities for 5-sided machining of aluminum and steel profiles. It features a maximum profile machining length of 7,500 mm, a tool holder HSK-F63 for high precision, and a frequency-controlled milling motor with a power output of 16 kW. The machine includes an automatic tool change system and a minimal quantity coolant-lubrication system. If you are looking to get high-quality milling capabilities, consider the SCHÜCO DC 500 machine we have for sale. Contact us for more information.

Overview

brand: SCHÜCO
year: 2009
MODEL: DC 500
application type: Milling
Location: Germany
machine type: Vertical Machining Centre

Technical Information - SCHÜCO DC 500

Dimensions

Machine Depth: 15000 mm
Machine Height: 4000 mm
Machine Weight: 12000 kg

Movement

Number of Axes: 5

Technical Specification

Spindle Power: 16 kW
Spindle Speed: 24000 RPM

Additional Information

Additional equipment

Profile Length and Height Measurement: Devices for measuring profile dimensions with automatic correction
Coolant Lubrication System: Minimal quantity system with electronic monitoring
Central Lubrication: Automatic system controlled by CNC

Machine Benefits

Technical Machine Benefits

Control panel: 19" touch tft color display with keyboard and mouse
Additional handheld device: yes
Network card: for internal network connection
Modem and remote maintenance software: enables remote diagnostics
Max. Profile machining length: 7500 mm
Profile cross-section: max (w x h) 400 x 300 mm; min (w x h) 30 x 30 mm // nprofile clamping device: 8 standard clamping blocks, expandable to 14
Automatic tool change system: pick-up magazine for 16 tools, 2 special slots for saw blades
Processing capabilities: 5-sided machining of aluminum and steel profiles
Safety: ce-compliant work area safety features
This summary provides essential details on the machine's capabilities, dimensions, and functionalities for potential users.

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
