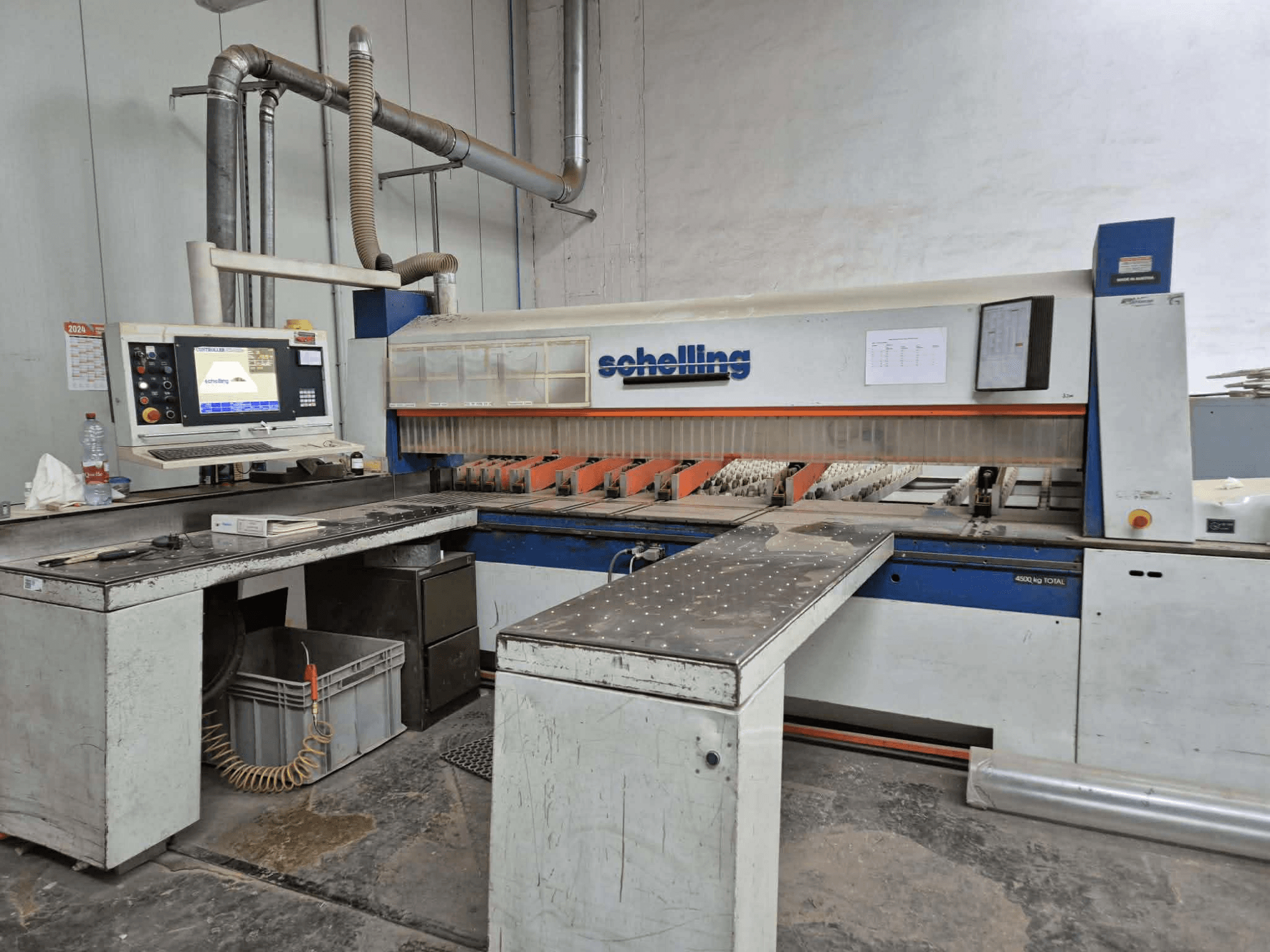

SCHELLING - FLM 365.002HU-SAW-SCH-1995-00001

Technical data:

• Main saw blade diameter: 400 mm

• Scoring saw blade diameter: 200 mm

• Max. saw blade projection: 80 mm

• Max. clamp opening: 100 mm

• Max. stack height: 60 mm

• Main motor power (50/60 Hz): 15 / 18 kW

• Saw unit feed speed: 0.2 – 22 m/min

• Saw unit return speed: 22 m/min

• Forward feed speed: 10 m/min

• Backward feed speed: 10 m/min

• Working height: 930 mm

Performance and requirements:

• Processable materials: Acrylic, glass-fiber reinforced plastic (GFRP)

• Max. panel length: 3000 mm

• Max. panel width: 2200 mm

• Max. thickness (Acrylic): 80 mm

• Max. thickness (GFRP): 60 mm

• Edges: deburred

• Panel flatness: max. wave 5 mm

• Thickness tolerance: ±0.2 mm

• Electrical power consumption: approx. 25 kW

• Supply voltage: 380 V / 50 Hz

• Compressed air requirement: approx. 100 l/min (6 bar)

• Extraction requirement: approx. 4000 m³/h (air speed 32 m/s)

Equipment (included with the machine):

• Scoring unit

• Servo-driven feed (0 – 40 m/min)

• Side guides on roller table, automatic adjustment; adjustment range 80 – 2200 mm

• Safety light curtain with separate support frame

• Hold-down clamps (according to machine configuration)

• Cooling and spraying system

• Computer control – COMMANDER (PLC/SPS) with display, membrane keyboard, diagnostic system

• Graphical display of cutting plans

• Electrical cabinet and control integrated in the machine

• Slow scoring / pre-cut function
