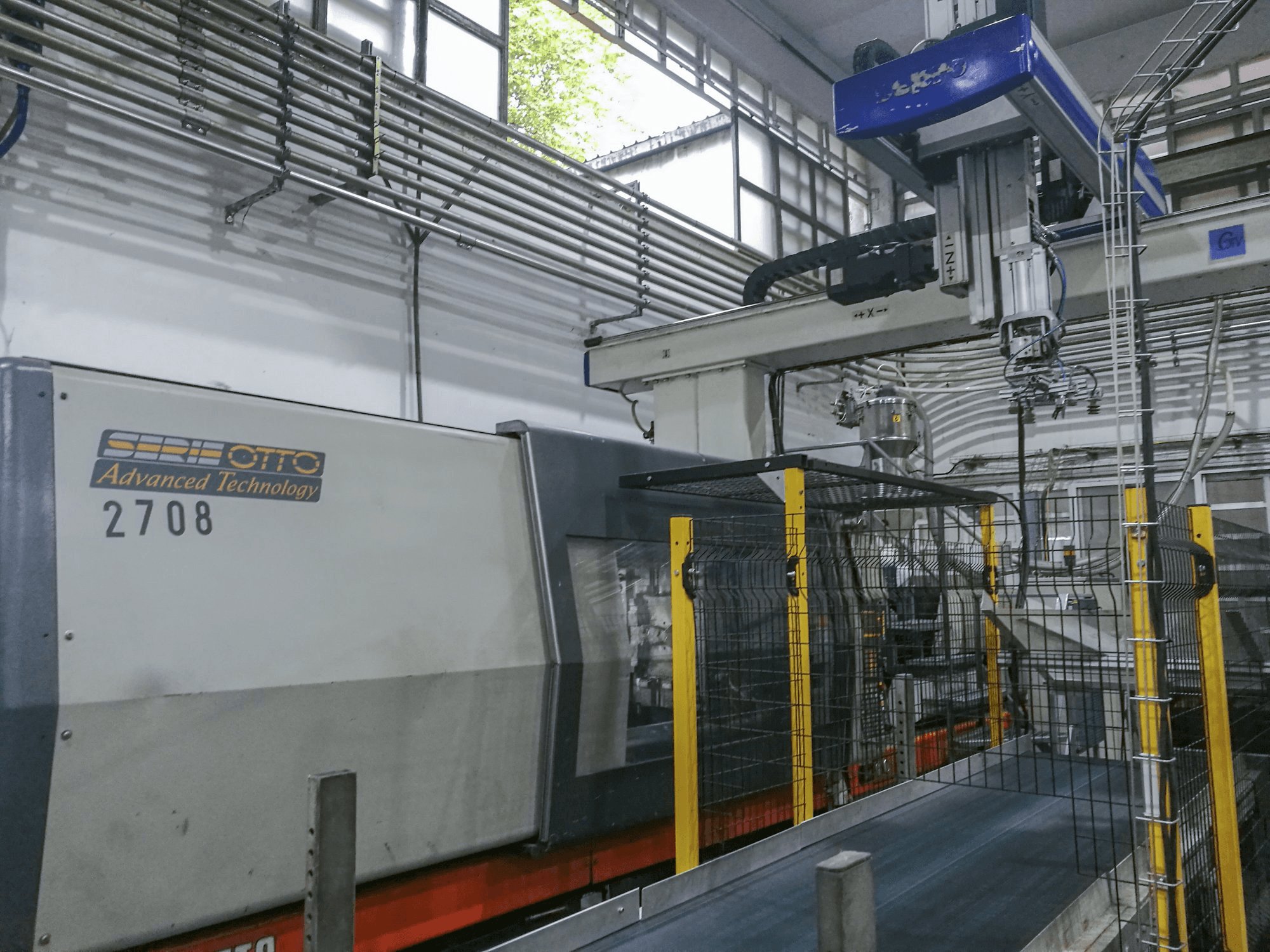

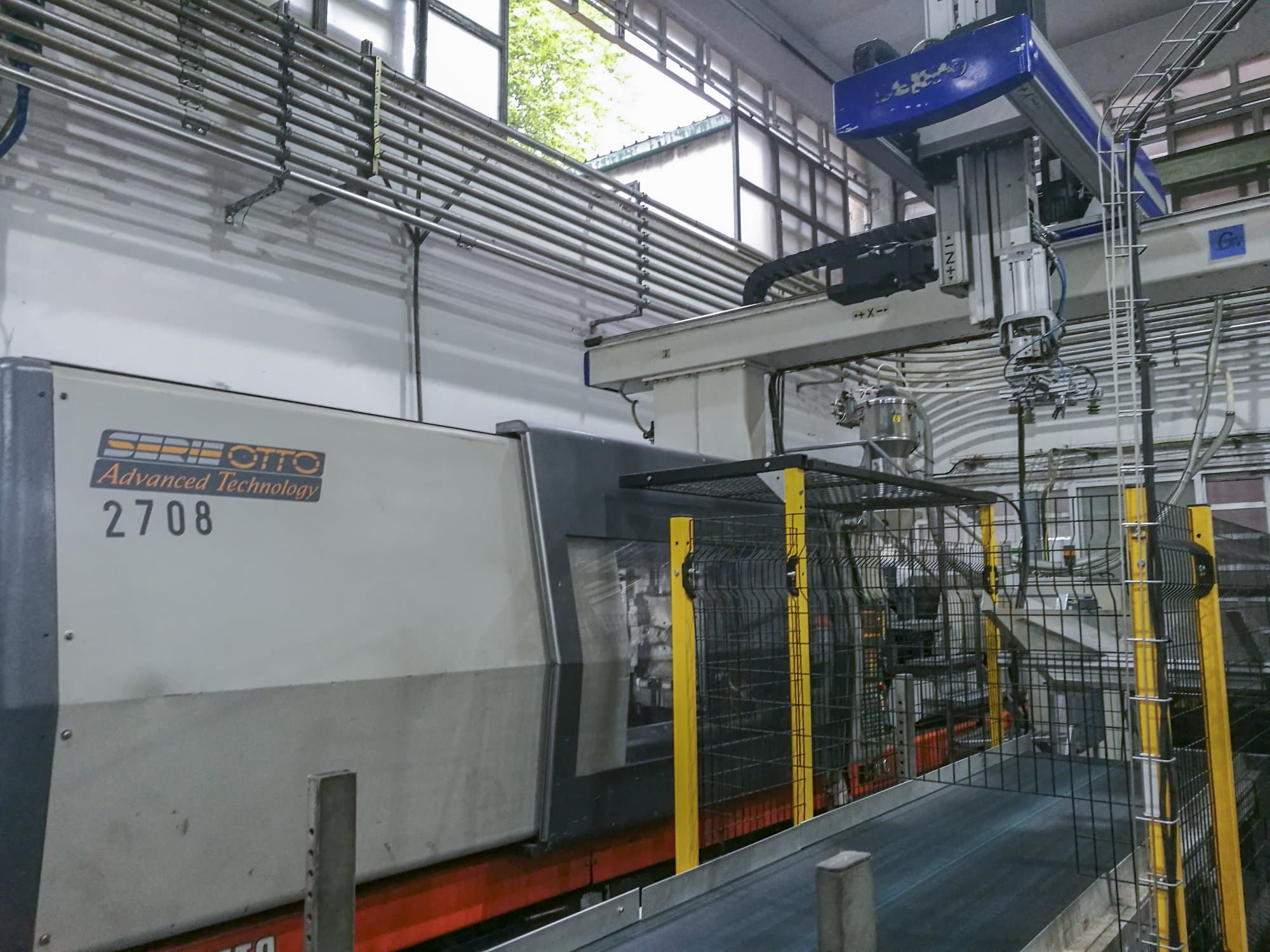

Left view 1 of SANDRETTO 2054-380 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

SANDRETTO 2054-380

Photo Gallery

SANDRETTO - 2054-380ES-INJ-SAN-1998-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
SANDRETTO 2054-380 Injection Moulding Machine

Show in original language

This SANDRETTO 2054-380 Injection Moulding Machine from 1998 was manufactured in Italy and counts a total of approximately 100000 production hours since then. Equipped with a SEF 100 Control unit, this machine has worked with polypropylene during the past, producing plastic molds for the automotive industry. This model stands out due to 380 tons of clamping force and comes with a linear robot Sepro SR 4030 A3 included.

Overview

brand: SANDRETTO
year: 1998
MODEL: 2054-380
production hours: 100000
application type: Injection Moulding
Location: Spain
machine type: Hydraulic Injection Moulding Machine

Technical Information - SANDRETTO 2054-380

General Data

Measurements width: 8810 mm
Measurements depth: 2420 mm
Measurements height: 1850 mm
Machine weight: 16000 kg

Control Unit

Model: 100

Injection Unit

Screw diameter: 75 mm
Stroke volume: 1370 cm³
Injection pressure: 1500 bar

Clamping unit

Clamping force: 3725 kN
Opening stroke: 550 mm
Ejector stroke: 240 mm

Additional Information

Additional equipment

Robot Sepro SR 4030 A3 Visual

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
