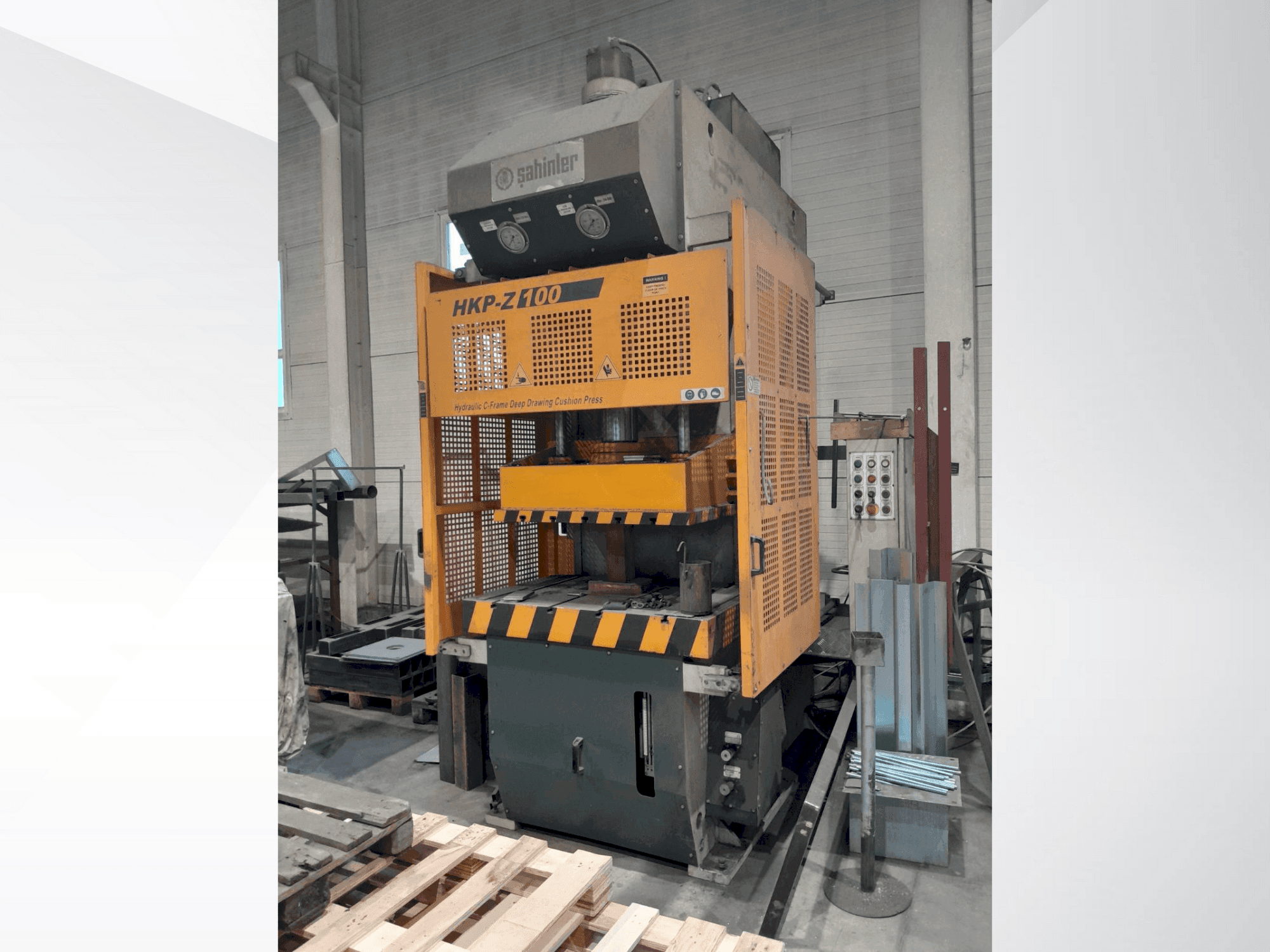

Front view of Sahinler HKP-Z 100 machine
Front view of Sahinler HKP-Z 100 machine

Sahinler - HKP-Z 100HU-PUN-SAH-2016-00001

£ 26,467
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Sahinler HKP-Z 100 was manufactured in 2016. A robust C-frame PLC controlled deep drawing press, it features a pressure force of 1000 kN and a stroke of 500 mm. The machine includes a large table size of 900x600 mm and a throat depth of 300 mm, suitable for diverse punching and bending tasks. Consider the opportunity to buy this Sahinler HKP-Z 100 punching and bending machine. Contact us for more information about this machine.

Overview

  • brand: Sahinler
  • year: 2016
  • MODEL: HKP-Z 100
  • application type: Punching
  • Location: Hungary
  • machine type: Punching and Bending Machine

Technical Information - Sahinler HKP-Z 100

Dimensions

  • Machine Depth: 2180 mm
  • Machine Height: 3350 mm
  • Machine Weight: 9300 kg

Additional Information

Additional equipment

  • Lower Hydraulics Pressure Force: 350 kN / Lower Hydraulics Travel: 200 mm / Lower Hydraulics Table Size: 400x400 mm / Lower Hydraulics Travel Speed: 52 mm/min

Machine Benefits

Technical Machine Benefits

  • Pressure force: 1000 kn/ max pressure: 240 bar/ stroke: 500 mm/ piston diameter: Ø 220 mm/ draw force max: 100 kn
  • Table size: 900x600 mm / lower table size: 1100x700 mm / max receiving height: 750 mm / throat depth: 300 mm / central opening: Ø 120 mm
  • Tank capacity: 350 l
  • Recommended speed: 100 mm/min / working speed: 25 mm/min / return speed: 165 mm/min / motor power: 11 kw

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Borja Garcia

Borja Garcia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
