Finn-Power - SG6 12.61ES-PUN-FIN-2010-00001

£ 77,116
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

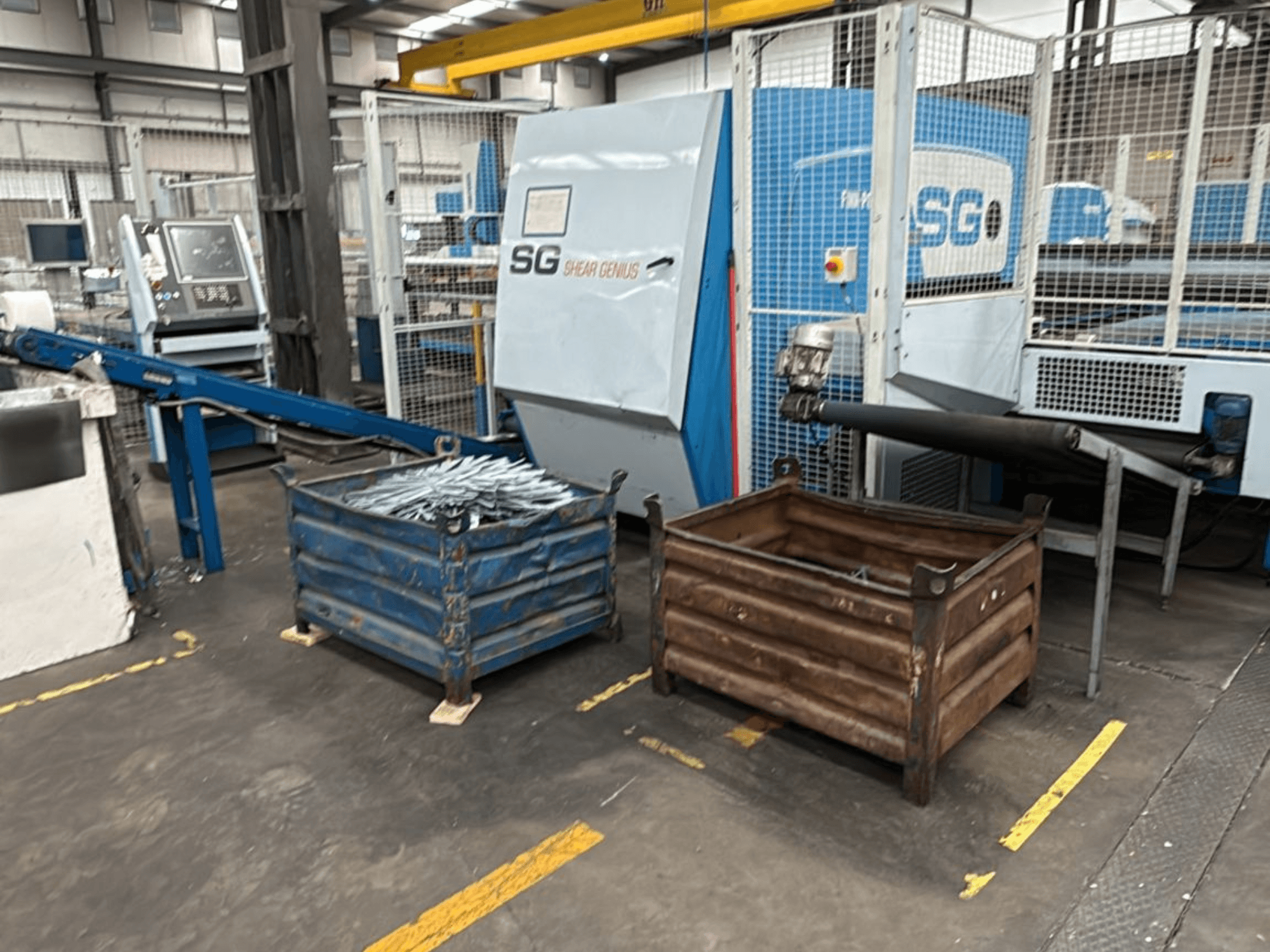

This 11-axis Finn-Power SG6 12.61 was manufactured in 2010. It features a maximum punching force of 300 kN and can handle sheet thicknesses up to 6 mm. The machine includes a thick turret with 20 stations and an integrated CNC right-angle shear for efficient part separation. If you are looking to get high-quality punching capabilities, consider the Finn-Power SG6 12.61 punching and bending machine we have for sale. Contact us for further details.

Overview

  • brand: Finn-Power
  • year: 2010
  • MODEL: SG6 12.61
  • application type: Punching
  • Location: Spain
  • machine type: Punching and Bending Machine
  • control unit brand:

Technical Information - Finn-Power SG6 12.61

Dimensions

  • Machine Weight: 23000 kg

Movement

  • Number of Axes: 11

Technical Specification

  • Max. Sheet Thickness: 6 mm
  • Punching Force: 300 Kn

Additional Information

  • Max. punching diameter: approx. 88.9 mm (in 3 mm steel)

  • Punching speed: up to 600 hpm (short pitch)

  • Positioning accuracy: ±0.1 mm

  • Max. sheet size: 1500 x 2500 mm

  • Automatic repositioning: yes, via CNC clamps

  • Number of clamps: 2 (with intelligent repositioning)

  • Loading/unloading capability: manual or automatic (configuration dependent)

  • Turret: Thick Turret / Trumpf style

  • Number of stations: 20

  • Integrated shear: CNC right-angle shear

  • Shearing capacity: up to 6 mm (mild steel)

  • Process advantage: part separation without micro-joints or secondary operations

  • Edge quality: superior to traditional nibbling

  • Control unit: Finn-Power / Siemens

  • Software: NC Express / Tulus

  • Functions: automatic nesting; optimized punching and shearing sequences

  • Diagnostics: self-diagnostics and assisted maintenance

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
