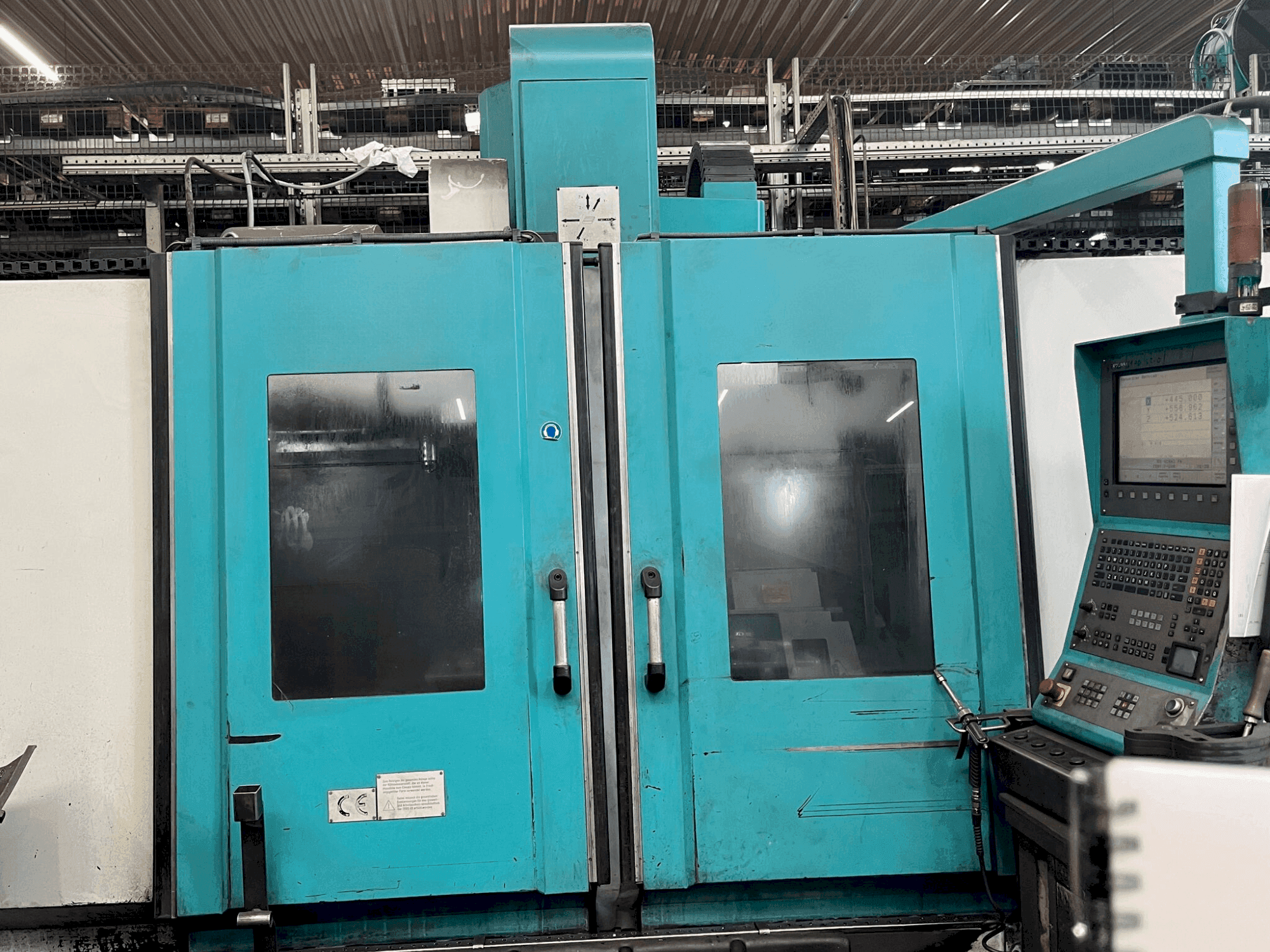

Front view of RECKERMANN RBZ-1520  machine

RECKERMANN - RBZ-1520DE-MIL-REC-2008-00001

£ 20,800
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis RECKERMANN RBZ-1520 was manufactured in 2008. A robust vertical machining center, it features a table size of 1700x860 mm, capable of handling a maximum workpiece weight of 1800 kg. It offers extensive travel on X, Y, and Z axes at 1520 mm, 760 mm, and 680 mm respectively. Rapid traverse rates are impressive at 16000 mm/min for X and Y, and 12000 mm/min for Z. Consider the opportunity to buy this RECKERMANN RBZ-1520 vertical machining center. Contact us for further details regarding this machine.

Overview

  • brand: RECKERMANN
  • year: 2008
  • MODEL: RBZ-1520
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre
  • availability: Immediately

Technical Information - RECKERMANN RBZ-1520

General Data

  • Measurements width: 3600 mm
  • Measurements depth: 6000 mm
  • Measurements height: 3650 mm
  • Machine weight: 12500 kg

Movement

  • X-AXIS Movement: 1520 MM
  • Y-AXIS Movement: 760 MM
  • Z-AXIS Movement: 680 MM

Table

  • Outer length: 1700 mm
  • Outer width: 860 mm
  • TSlots size: 18 H8
  • Number of tslots: 6
  • Distance between: 120 mm and 240 mm
  • Table load: 1800 kg

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Spindle nose to table distance 150-800 mm / spindle nose to table distance 150-800 mm
      • - Feed rate (x, y, z axes) 1-5000 mm/min
      • - Rapid traverse (x, y axes) 16000 mm/min / rapid traverse (z-axis) 12000 mm/min
      • - Tool magazine capacity 24 tools
      • - Maximum tool length 350 mm / maximum tool weight 15 kg
      • - Tool change time 4 seconds / operating voltage 400 v
      • - Control voltage 230/110/48/24/12 v
      • - Frequency 50 hz
      • - Total rated current 76 a / power supply fuse 80 a
      • - Workplace noise level 70-75 db(a)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
