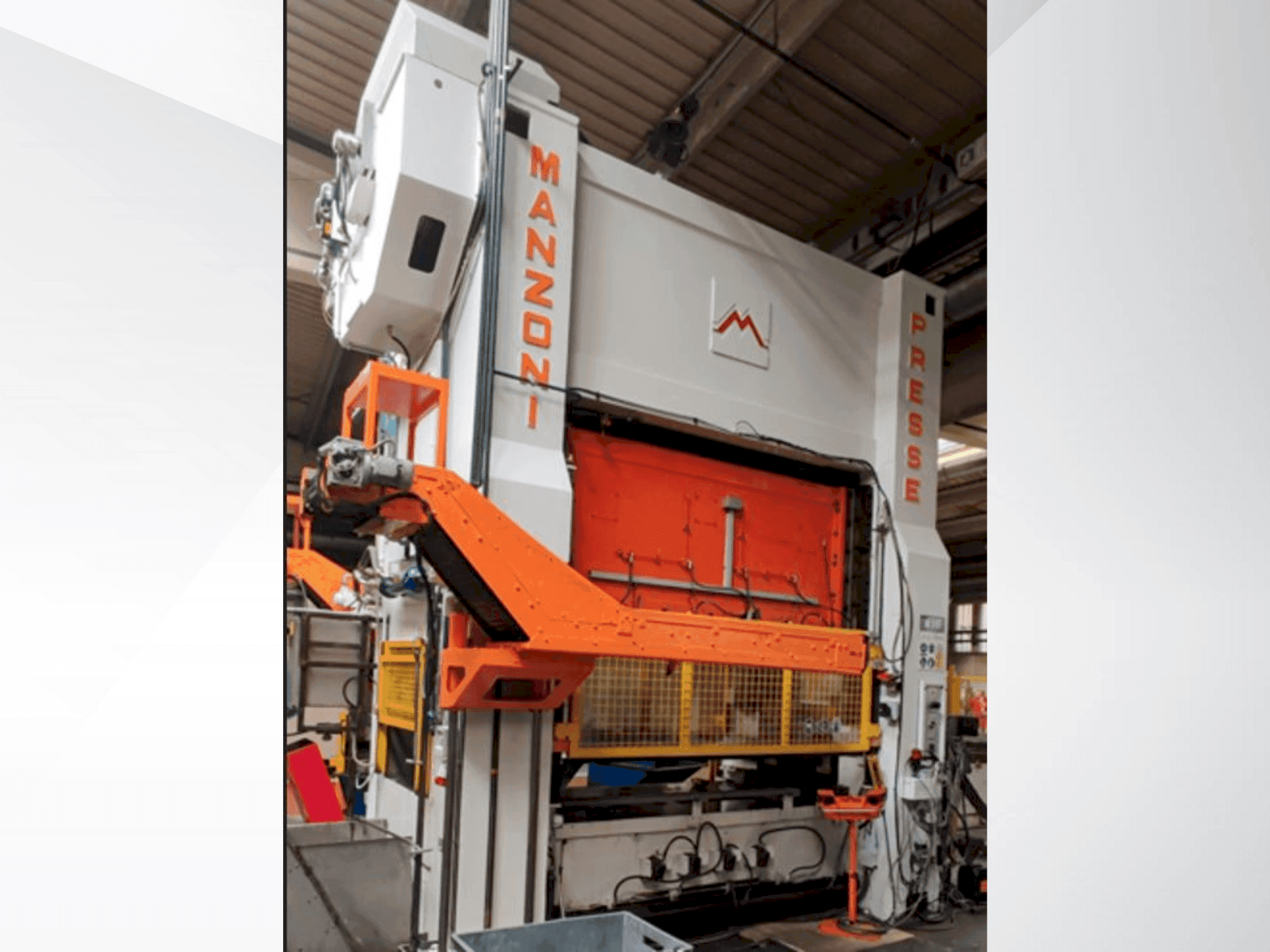

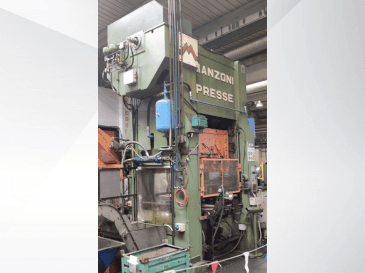

Front view of RAVNE PRESSES Manzoni 315  machine

RAVNE PRESSES - Manzoni 315SI-STA-RAV-1992-00001

£ 240,600
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This RAVNE PRESSES Manzoni 315 punching machine was manufactured in 1992. It features a robust eccentric H-frame, monoblock design with a press force of 3150 kN and a drive power of 60 kW. It has a fixed stroke of 200 mm and slide dimensions of 2550 x 1250 mm. If you are looking to get high-quality punching capabilities, consider the RAVNE PRESSES Manzoni 315 machine we have for sale. Contact us for more information.

Overview

  • brand: RAVNE PRESSES
  • year: 1992
  • MODEL: Manzoni 315
  • application type: Punching
  • Location: Slovenia
  • machine type: CNC Punching Machine
  • availability: Immediately

Technical Information - RAVNE PRESSES Manzoni 315

General Data

  • Machine weight: 58500 KG

Main drive

  • Pressing force: 3150 kn
  • Maximum sheet thickness: 6 mm
  • Main motor power: 60 kw
  • Stroke: 200 mm

    Additional Equipment

    • - Magnetic conveyor for scraps
    • - Quick die cart system
    • - New rails for die cart system
    • - Scissors for sheet cutting
    • - Scissors for sheet cutting
    • - Documentations and drawings included

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Stroke rate: 10 – 65 /min
        • - Slide adjustment: 200 mm
        • - Number of pressure points: 2
        • - Slide dimensions: 2550 x 1250 mm
        • - Bed dimensions: 2650 x 1250 mm
        • - Shut height: 500 – 700 mm
        • - Side opening dimension: 1000 mm
        • - Front opening dimension: 2810 mm
        • - Number of straightener rolls: 9
        • - Uncoiling speed: 2 - 25 m/min
      • Qualitative Machine Benefits:
        • - Feeding speed: 2-96 m/min
        • - Complete press line included
        • - Press was rebuilt in 2017
        • - All services are documented
        • - Decoiler max. Sheet width: 500 mm
        • - Max. Coil outer diameter: 1500 mm
        • - Max. Coil outer diameter: 1500 mm
        • - Feeder roll diameter: 127 mm
        • - Feeder motor power: 75 kw

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
