➤ Used PME PE 400-1700 C For Sale | gindumac.com

Show in original language

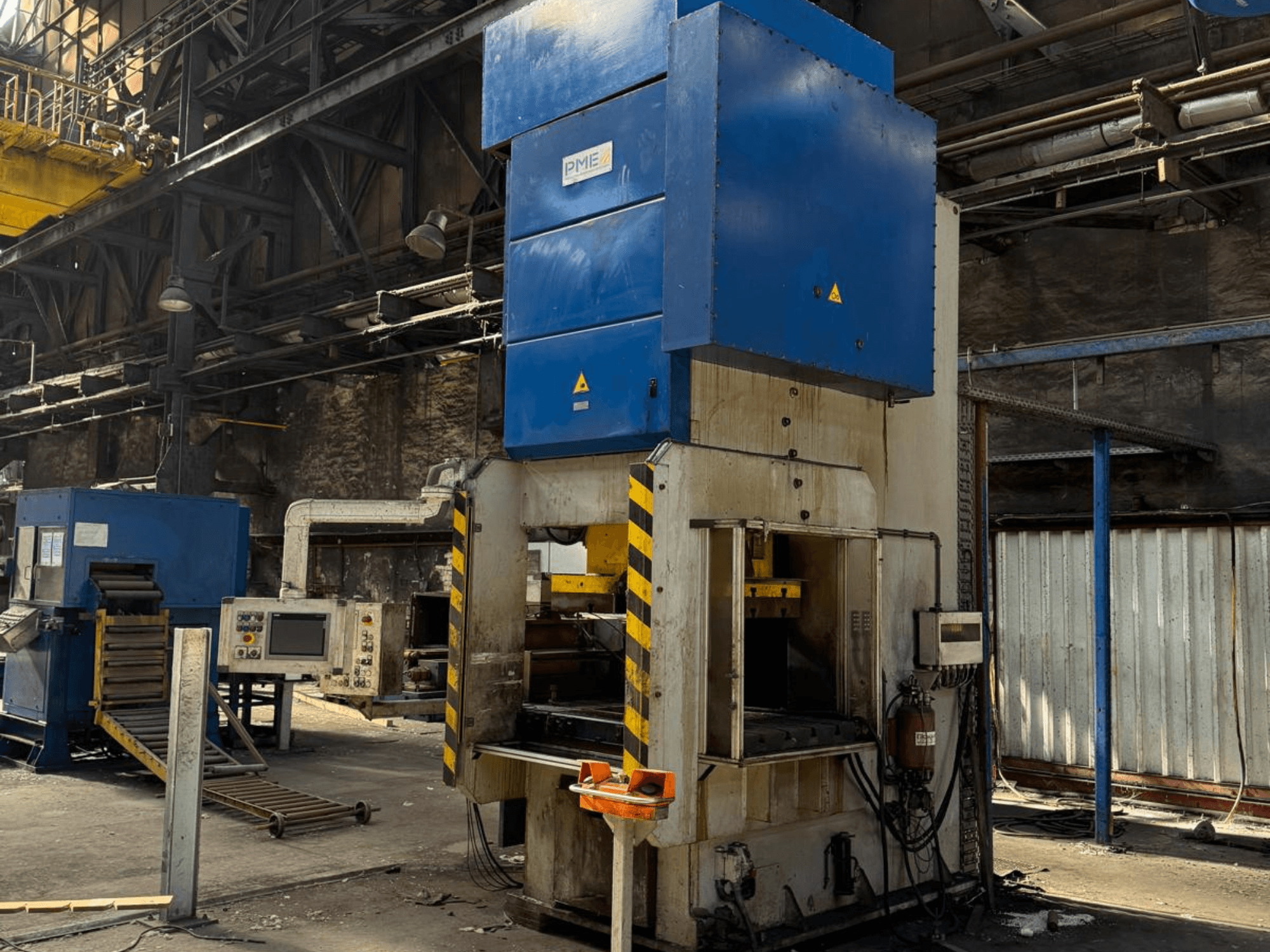

Mechanical stamping press manufactured in 2018. This PME PE 400-1700 C features a nominal pressing force of 4000 kN and a machine weight of 33,000 kg. It has a maximum ram adjustment of 180 mm and can accommodate tool dimensions of up to 1100 x 800 mm. If you are looking to get high-quality stamping capabilities, consider the PME PE 400-1700 C machine we have for sale. Contact us for further details.

Overview

brand: PME
year: 2018
MODEL: PE 400-1700 C
application type: Stamping
Location: Germany
machine type: Mechanical Stamping Press

Technical Information - PME PE 400-1700 C

Dimensions

Machine Height: 2630 mm
Machine Length: 2750 mm
Machine Weight: 33000 kg
Table Width: 4325 mm

Technical Specification

Max. Stroke: 160 mm
Stamping Force: 4000 Kn

Additional Information

- Total Power: 50 kW

- Voltage: 400 V

- Frequency: 50 Hz

- Basic Machine Position: Top Dead Center (O.T.)

- Max. Engagements in Single Stroke: 15 /min

- Max. Permissible Speed of Flywheel: 290 1/min

- Max. Ram Adjustment: 180 mm

- Stroke Height Min./Max.: 30 mm / 160 mm

- Stroke Rate Min./Max.: 10 /min / 60 /min

- Max. Shut Height : 660 mm

- Max. Tool Dimensions (L x W): 1100 x 800 mm

- Max. Tool Weight: 800 kg

- Upper Tool Weight: 2400 kg

- Lower Tool Weight: 2400 kg

- Pneumatic System Pressure Min./Max.: 3.5 / 10 bar

- Pneumatic Clutch-Brake Combination Pressure Min./Max.: 3.5 / 6 bar

- Lubrication System Power: 1.0 kW

- Lubrication Operating Pressure: 50 bar

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
