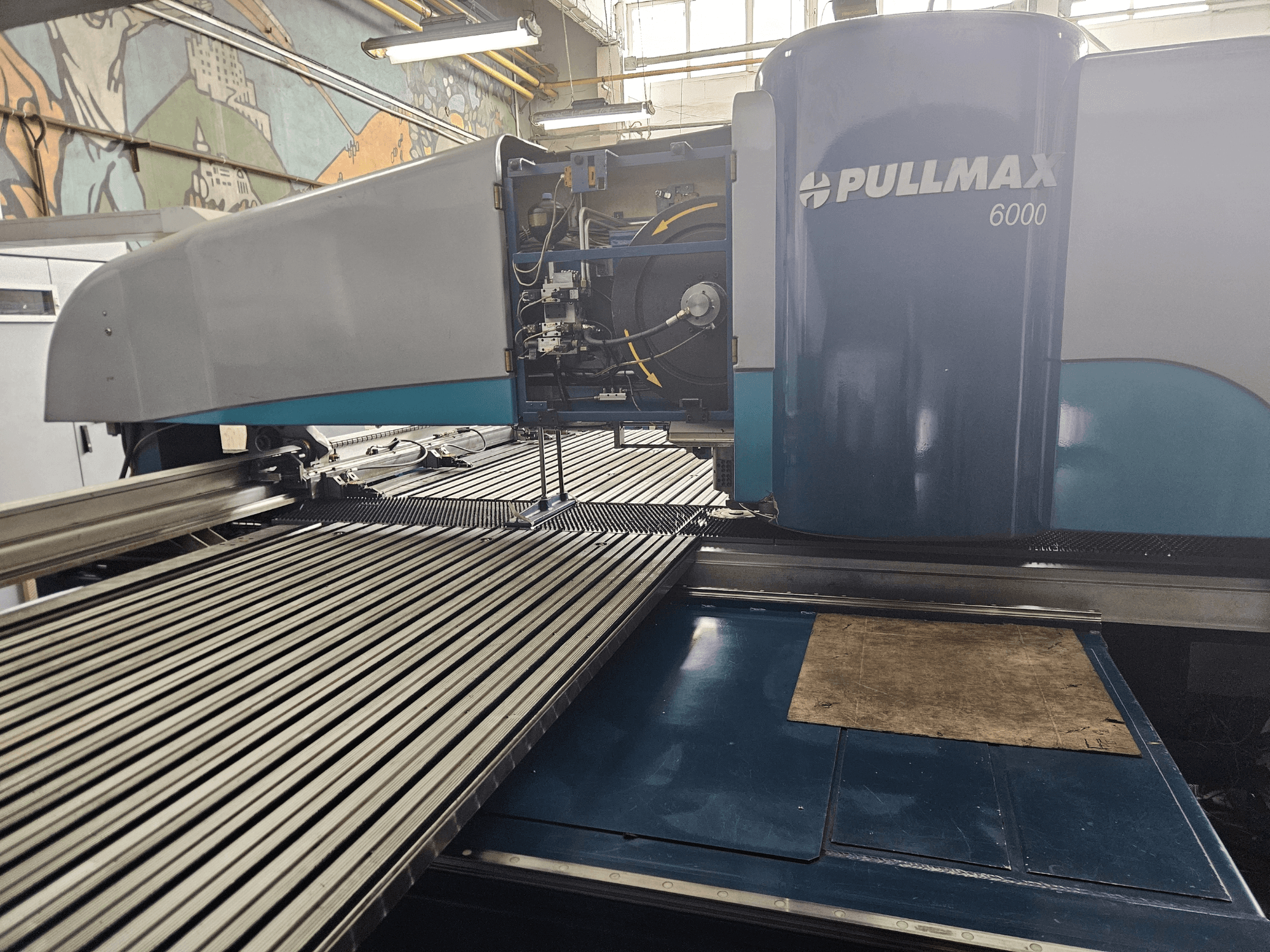

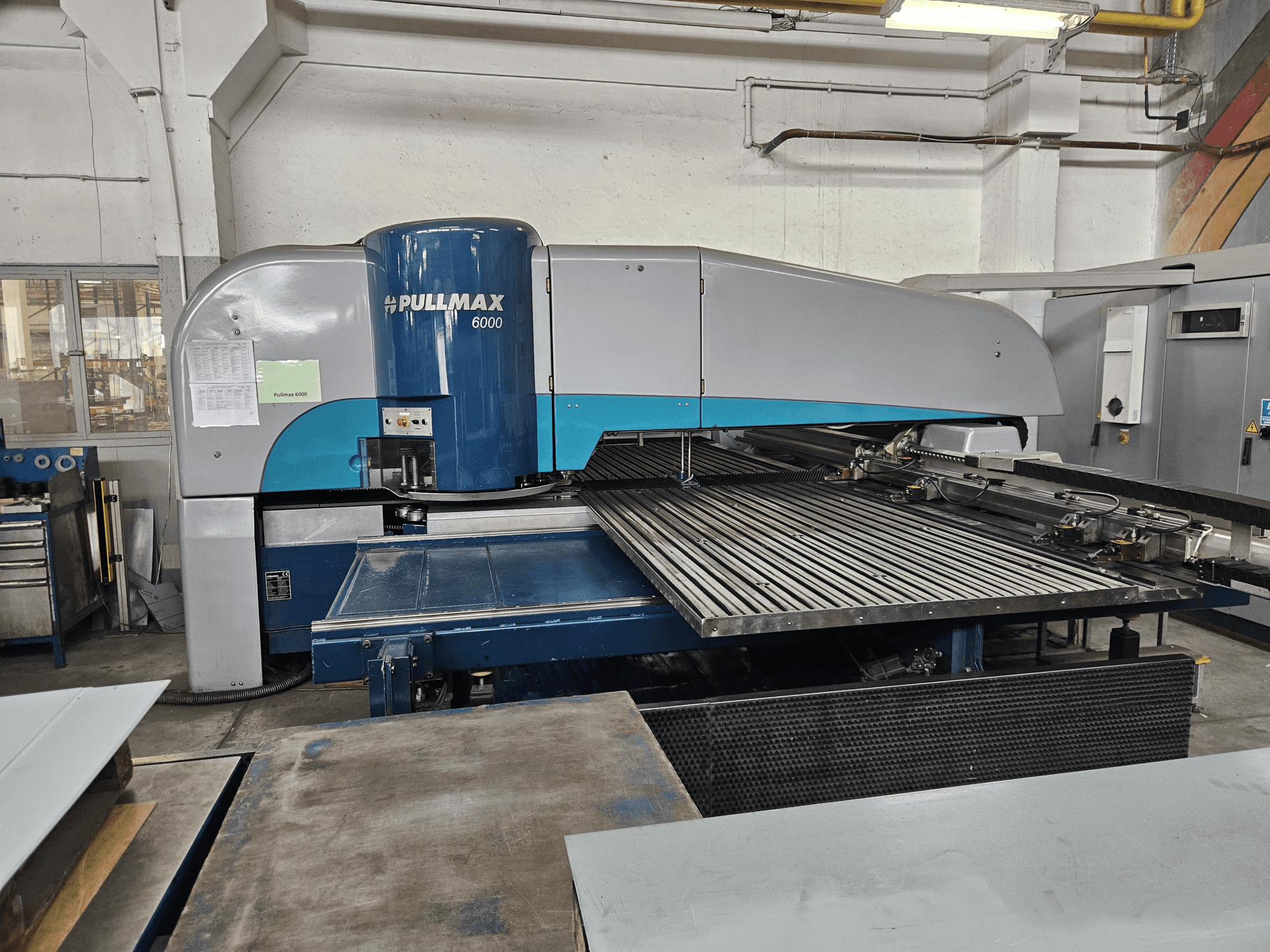

CNC punching machine manufactured in 2001. This Pullmax 6000 features a maximum sheet size of 3000 × 1500 mm and a maximum punching force of 300 kN. It has a tool capacity of 15 positions and a maximum tool diameter of 76.2 mm. If you are looking to get high-quality punching capabilities, consider the Pullmax 6000 machine we have for sale. Contact us for further details.
Overview
- brand: Pullmax
- year: 2001
- MODEL: 6000 CNC
- application type: Punching
- Location: Poland
- machine type: CNC Punching Machine
Technical Information - Pullmax 6000 CNC
Dimensions
- Machine Weight: 14000 kg
Movement
- Number of Axes: 2
- X-axis Travel: 2590 mm
- Y-axis Travel: 1725 mm
Technical Specification
- Max. Sheet Thickness: 6.4 mm
- Punching Force: 300 Kn
Additional Information
Max sheet size: 3000 × 1500 mm
Max sheet size (without repositioning): 2500 × 1500 mm
Min sheet thickness: 0.7 mm
Tool capacity: 15 positions
Max tool diameter: 76.2 mm
Table speed (X/Y): 80 / 80 m/min
Positioning accuracy: ±0.1 mm
Repeatability: ±0.03 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
