- ➤ Used Prima Industrie Platino 1530 | CO2 Laser Cutter

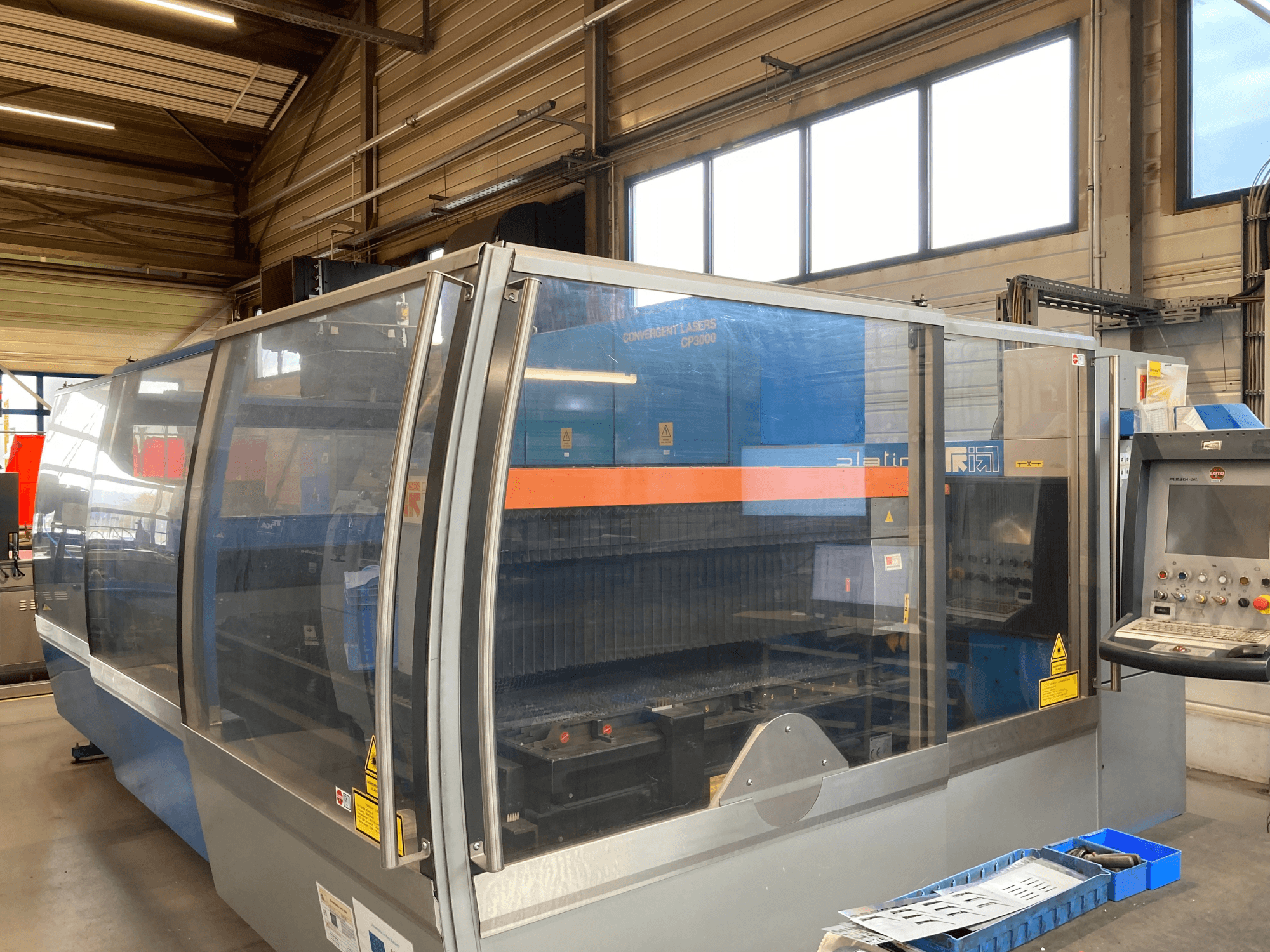

This 3-axis Prima Industrie Platino 1530 was manufactured in 2011. It features a working area of 3000 x 1500 mm and is equipped with a CO₂ laser with a power class of approximately 3000 W. The machine has a total length of about 8,388 mm and a width of approximately 3,050 mm. If you are looking to get high-quality laser cutting capabilities, consider the Prima Industrie Platino 1530 CO₂ laser cutting machine we have for sale. Contact us for further details.
Overview
- brand: Prima Industrie
- year: 2011
- MODEL: Platino 1530
- application type: Cutting
- Location: Germany
- machine type: CO2 Laser Cutting Machine
Technical Information - Prima Industrie Platino 1530
Dimensions
- Machine Height: 3005 mm
- Machine Length: 8388 mm
- Table Width: 3050 mm
Additional Information
Supply voltage: 400 V
Current: 53 A
Frequency: 50 Hz
Laser type: CO₂ laser
Laser power class: approx. 3000 W
Laser ON time: 56739 h
HV ON time: 52613 h
Beam ON time: 38740 h
Shutter open time: 39057 h
Shutter cycle counter: 226839
Vacuum pump ON time: 56729 h
Vacuum pump oil change time counter: 718 h
Turbine ON time: 14118 h
Turbine maintenance time counter: 5157 h
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
